Price for machine only. Track sold separately.

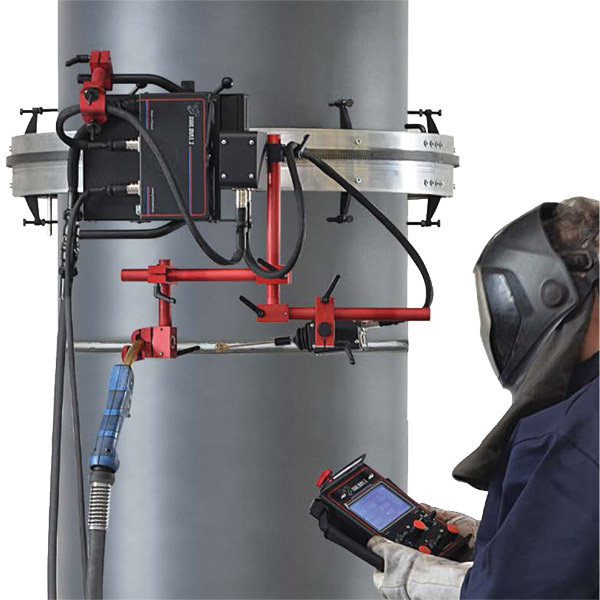

The Rail Bull 2 is a track welding carriage designed to produce butt and fillet welds with or without oscillation.

The carriage can work in PA (flat), PB (horizontal vertical), PC (horizontal), PF (vertical up), and PG (vertical down) welding positions.

Rail Bull 2 moves along either rigid or semi-flexible track. Both types of tracks are fixed to flat or curved ferromagnetic surfaces by means of dual magnetic units. The minimum curvature radius required is 5 m.

Rail Bull 2 can work in all welding positions on both ferromagnetic and non-ferromagnetic materials by using rack and pinion drive and various tracks equipped with magnetic or vacuum units.

  • Fully modular mechanized travel carriage can be custom configured for a variety of welding, thermal cutting and gouging applications on flat or curved plate, tube and pipe
  • Linear torch oscillator to produce weave welds
  • Active compensation of torch position vertically and horizontally by means of modular automatic seam tracking system
  • Programmable path of stitch welds
  • Possibility to select one limit switch pre-set out of three pre-sets available.
  • Suitable for variety of circumferential and irregular surface applications down to minimum radius of 100 mm (4")
    • Ring tracks on diameters from 200 mm OD up to 3 m OD
    • Custom rolled tracks on diameters from 3 m OD up to 10 m OD
    • Semi-flexible tracks can be flexed to minimum radius of 5 m without permanent deformation
  • Ergonomic remote control pendant with simple and easy to find control knobs makes adjustments possible without lifting of the operators welding hood
  • Magnetic adhesion of the pendant provides firm grip on ferromagnetic materials
  • Suitable for all welding positions on both ferromagnetic and non-ferromagnetic materials thanks to rack and pinion drive and various tracks equipped with magnetic or vacuum units
  • Rail Bull 2 produces consistent high quality welds and cuts in a fraction of the time required by manual operations
  • High speed up to 3 m/min makes plasma cutting available
Ring Tracks200 mm up to 3 m OD
Custom Rolled tracks3 m up to 10m OD
Horizontal Speed10-300 cm/min
Vertical Speed10-300 cm/min
Power supply100 W 115-230 V
Welding positionsVertical PA, PB, PC / Horizontal PF, PG
Minimum track curvature radius5 m
Torch typeMIG / MAG
Torch diameter16 - 22 mm, up to 35 mm with option
Minimum workpiece thickness5 mm
Horizontal pulling force350 Nm
Vertical pulling force150 Nm
Cross slide adjustment range0 - 35 mm, up - down, left - right
Horizontal speed0 - 1200 mm/min
Vertical speed0 - 1100 mm/min
Oscillation typeLinear
Oscillation pathTrapezoid, triangle, straight line
Oscillation arm stroke0 - 100mm
Oscillation width0 - 50mm
Oscillation speed0 - 1500mm/min
Oscillation delay at centre and on ends0 - 5s
Maximum oscillator pulling force100 Nm
Weight20 kg
Barcode # 9328042030078
Brand ITM
Shipping Weight 20.0000kg
Type tools
