Features:

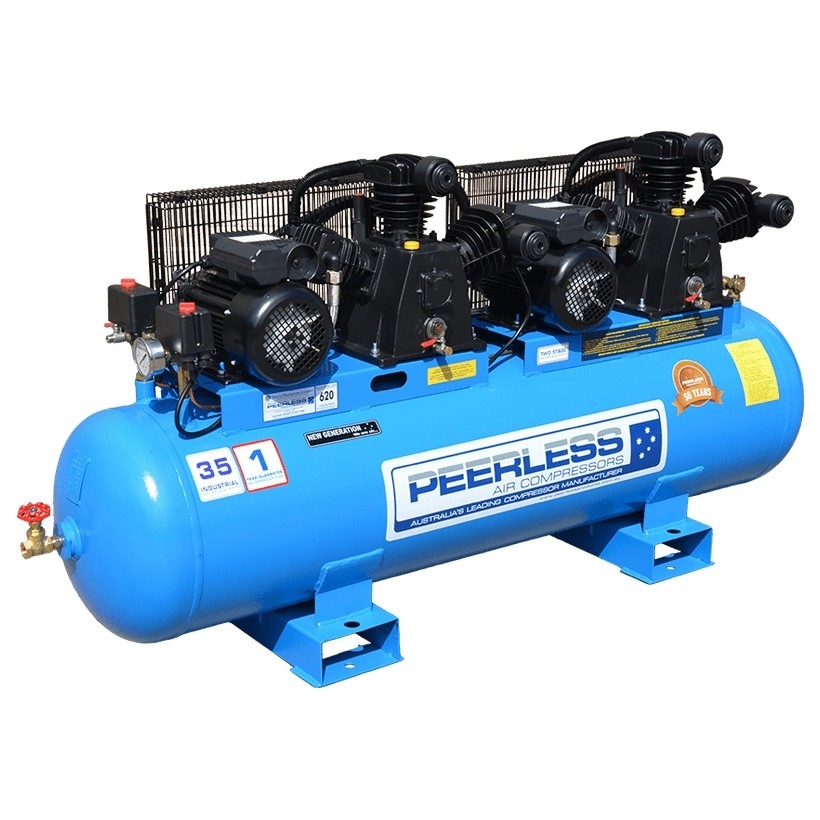

  • The PT35HP is designed using two 2065T pumps and 3.5 HP motors, coupled on a 190 litre air receiver.
  • The pumps are designed to restart 5PSI apart and require two 15amp power lines (draws 2 x 13 amps) back to your fuse box to operate this machine.
  • It is very important to ensure that this machine is wired in correctly as failure to do so will cause motor failure.
  • Producing a massive 600 litres of free air per minute at 150PSI to a maximum of 175PSI giving you an excellent single phase machine.
Specifications:
Free Air Delivery (F.A.D) 600 LPM @ 150PSI
Cylinders 3
Max PSI 175
Motor Electric 3.5 HP (x2)
Pump Peerless 2065T High Pressure
Pump RPM 1132
Power Supply 15 AMP (x2)
AMPS Draw 2x 13
Tank Size 200 L
Dimensions (L x W x H) 1770mm x 400mm x 880mm
Weight 205 kg
SKU 00093-1
Barcode # 9328241001381
Brand Peerless
Shipping Weight 200.0000kg
