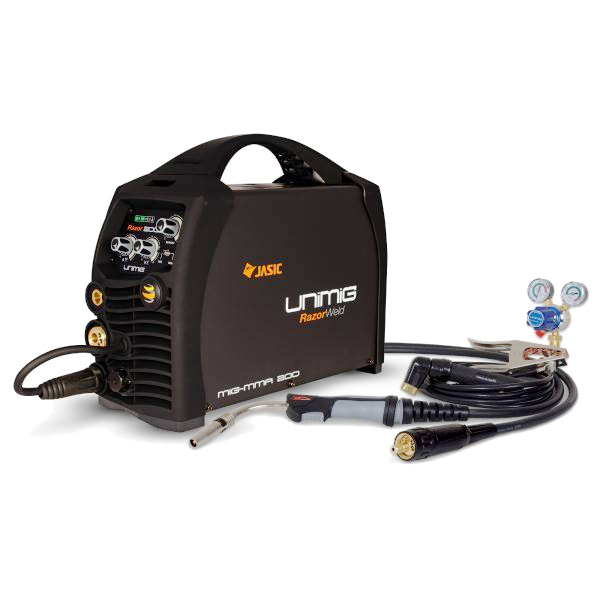

The Unimig RAZORWELD MIG 200 is a new inverter-based portable MIG welding machine with added (MMA) Stick function. The MIG function allows you to weld with both Gas Shielded and Gas-less wire applications. Easy step-less adjustment of voltage and wire feed make for easy setting of welding parameters giving excellent, professional welding results.

Features:
  • Latest IGBT inverter technology
  • MIG/MAG with Gas and Gasless wire function
  • Excellent MiG welding with CO2 gas
  • Euro style MIG torch connection
  • Internal wire feeder, gear driven
  • 1Kg to 5Kg Spools
  • Adjustable Burn Back
  • Spool Gun Connection
  • Stepless voltage and wire feed control
  • Wire Inch
  • Stick electrode (MMA) function
  • VRD (Voltage Reduction Device)
  • Excellent arc stability with all electrode
  • Hot Start - Anti Stick
  • Industrial rated
  • Solid case construction
  • IP21S rating for environmental/safety protection
  • Tolerant to variable power supply
Specifications:
Power Supply / Phases (V-Ph) 240v - 1 ± 15%
Duty Cycle @ 40°c as per AS/NZ60974-120% @ 200 Amps MIG
15% @ 200 Amps MMA
Output Current Range MIG 30A/15.5V - 200A/24.0V
Output Current Range MMA 10A/20.4V - 200A/28.0V
Rated Power MIG 9.4KVA
I Max MIG 33.6Amps
MMA 39.0Amps
I ieff MIG15.0mps
MMA 15.0Amps
Power factor 0.70
Protection Class IP21S
Insulation Class F
Wire Diameter Range (mm) 0.6, 0.8, 0.9, 1.0, 1.2
Dimensions Power Source Length: 470mm Width: 190mm Height: 380mm

Includes:
Razor MIG 200 Power Source, 4m SB24 MIG Torch, 4m Arc Welding lead set, Twin Gauge Argon Regulator, 2m Gas Hose with connections
SKU KUM-M-RW200MIG
Barcode # 9339793015832
Brand Unimig
Shipping Weight 14.5000kg
Assembled Length 0.470m
Assembled Height 0.380m
Assembled Width 0.190m
Type tools
Warranty 3 Year
