East West Engineering 100T 8m CSMP Multi Position Spreader Bar CSMP100X8
Made To Order - Lead Time Applies

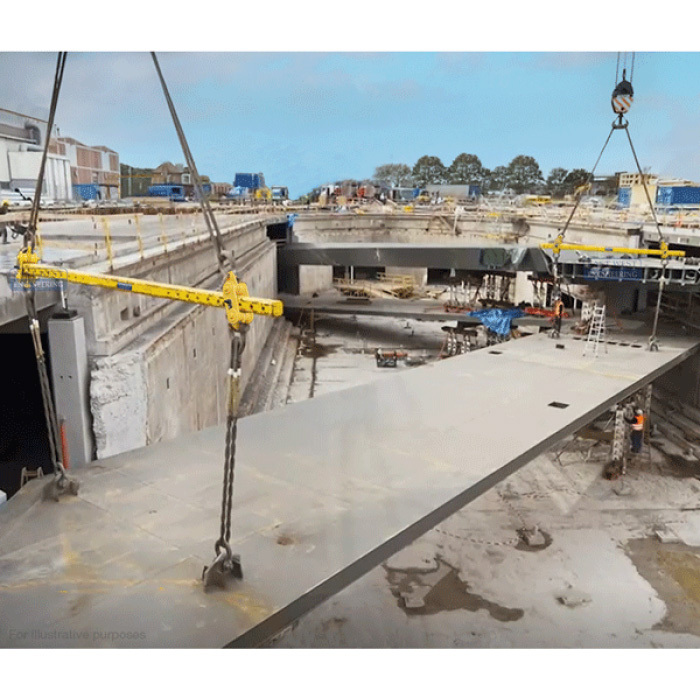

More infoThe CSMP Multi Position Spreader Bar is designed to provide support, stability and minimising lateral forces during lifting operations by crane, to ensure heavy loads are safely transported and placed onsite.
Features:
- Multiple lifting positions
- 20, 48 & 100 tonne capacity models available
- Available in 3 standard bar lengths 3.3, 6 or 8m
- Other lengths and capacities available on request
- Shackles supplied
- Certified to the relevant Australian Standards
- Enamel paint finish
- NOTE: Working load limit has been calculated on a 60° chain angle setup.
Specifications: | |
|---|---|
| Working Load Limit | 100,000 kg |
| Length | 8000 mm |
| No. of Lift Positions | 11 |
| Min. Lift Centre | 1700 mm |
| Max. Lift Centre | 7700 mm |
| Unit Weight | 1740 kg |
(CSMP100X8)
| SKU | CSMP100X8 |
| Brand | East West Engineering |
| Shipping Weight | 1740.0000kg |
| Shipping Length | 8.000m |
| Assembled Length | 8.000m |
| Type | tools |
