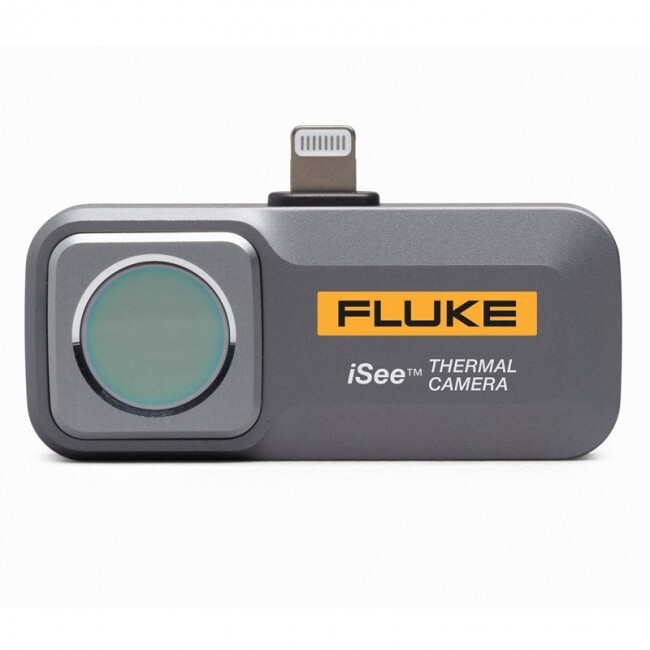

Fluke iSee Mobile Thermal Camera for iPhone FLUTC01B

Calculate Shipping

Detailed image quality comparable to professional thermal cameras

256 x 192 pixels, detailed image quality
Up to 550 ?, suitable to use in many applications
50 mk (0.05 ?) thermal sensitivity for fine differences
±2% or ±2 °C accuracy to ensure reliable results
25 Hz frame rate for smooth video recording
Customize image view with more than 10 standard or custom color palettes

Powerful full temperature range analysis

Never miss any detail with real-time high and low temperature capture
Adjustable emissivity to apply with different materials
Comprehensive temperature analysis for spot, line and area, supported with professional thermal imaging mobile software
Real-time temperature alarm for timely response of abnormal condition
Automatic time-lapse capture mode, for unattended operation
Infrared and visible image comparison for locating, comparing and archiving

Real-time image sharing for fast and easy communication

Share and manage images and videos in real-time, for fast and efficient communication
Easy to add image annotation for smooth communication
Automatically generate infrared inspection reports, easy for reporting, archiving and sharing (TC01B only)

Small and portable, takes only a second to get started

Compact design as light as 22 g
The iSee is made of high quality specially treated aluminum material with laser etched surface
Up to 1 meter drop test, IP56 (TC01B)/IP54 (TC01A) ingress protection, adhering to the Fluke durability and quality
Optimized Fluke iSee application interfaces and menus, to enhance user experience with easy to access functions

Specifications:
Performance specifications
IR resolution	256 x 192
Pixel size	12 ?m
Temperature range	-20 ? to 550 ?
Temperature accuracy	± 2% of rdg or ± 2 °C, whichever is greater (@ 23 °C ± 5 °C ambient temperature)
Temperature measurement distance	0.25 to 5 m?* -20 ? to 10 ?, only for 0.25 to 3 m?
Frame rate	25 Hz
Warm-up time	1 minute
Focal length	Fixed focal length: 3.2 mm
Shutter mode	Built-in automatic shutter
Thermal sensitivity (NETD)	50 mK
Spectral range	8 to 14 ?m
Field of view (H x V)	56° x 42°
Spatial resolution	3.81 mrad
General Specifications
USB Interface	Lightning
Operating temperature	0? to 40 ?
Storage temperature	-30 °C to 60 °C
Operating humidity	10% to 90% RH, non-condensing
Power consumption	200 mW (Typical)
Drop test	1 m
Ingress protection	IEC 60529: IP56
Operating altitude	2000 m
Storage altitude	12000 m
Dimensions (L x W x H?	60 x 33.5 x 11.2 mm
Weight	22 g
EMC	International IEC 61326-1: Portable Electromagnetic Environment CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments.
Warranty	2 years
