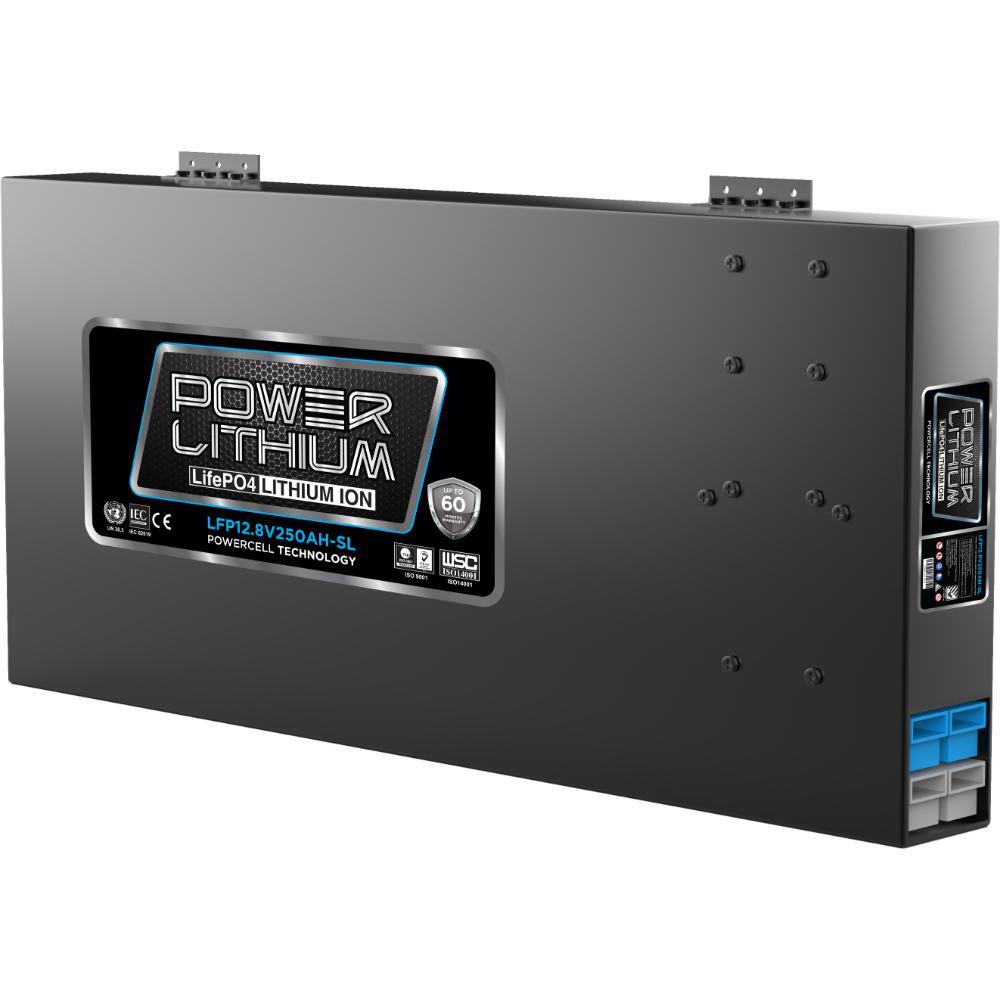

Power Lithium Slimline 12.8V 250ah Iron Phosphate LiFePO4 Battery LFP12.8V250AH-SL
More infoFeatures:
- Longer Cycle Life
LiFePO4 batteries would be is five times than SLA batteries on cycle life. - High Power & Light Weight
LiFePO4 batteries performance twice power of SLA batteries, while half weight helpful for transport and installation. - Intelligent Management Control
Intelligent BMS system covered by LFP batteries to ensure that batteries work on safety and perfect condition. - Lower Self-discharge Rate
Lower Self-discharge rate to guarantee LFP batteries be stored more longer than SLA batteries
Applications:
- Caravan, RV, camping
- UPS (replacement of SLA batteries)
- Marine, golf cart
- Solar, wind system
- PV, solar light
| Electrical Characteristics | |
| Chemistry | LiFePO4 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 250Ah (C5, 25°C) |
| Energy | 3200Wh |
| Internal Resistance | ≤13 mΩ |
| Cycle Life | >2000 cycles @1C 100%DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100% @0.5C |
| Efficiency of Discharge | 96-99% @1C |
| Standard Charge | |
| Charge Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V, charge current to 0.02C (CC/CV) |
| Charger Current | 125A |
| Max. Charge Current | 150A |
| Charge Cut-off Voltage | 15.6V±0.2V |
| Standard Discharge | |
| Rated Discharge Current | 125A |
| Max Discharge Current | 150A |
| Max. Pulse Current | 750A (<3s) |
| Discharge Cut-off Voltage | 10V |
| Charge Temperature | 0°C to 45°C (32°F to 113°F) @60±25% Relative Humidity |
| Discharge Temperature | -20°C to 60°C (-4°F to 140°F) @60±25% Relative Humidity |
| Storage Temperature | 0°C to 40°C (32°F to 104°F) @60±25% Relative Humidity |
| Water Dust Resistance | IP56 |
| Mechanical | |
| BMS | Not support Blutooth, communication |
| Case | ABS |
| Dimensions (in./mm.) | 560*126*320 mm |
| Weight (lbs./kg.) | 33.0kg (72.6lbs) |
| Terminal | M8 |
(LFP12.8V250AH-SL)
| SKU | LFP12.8V250AH-SL |
| Brand | Power Lithium |
| Shipping Weight | 25.6000kg |
| Type | Lithium Ion Battery |
