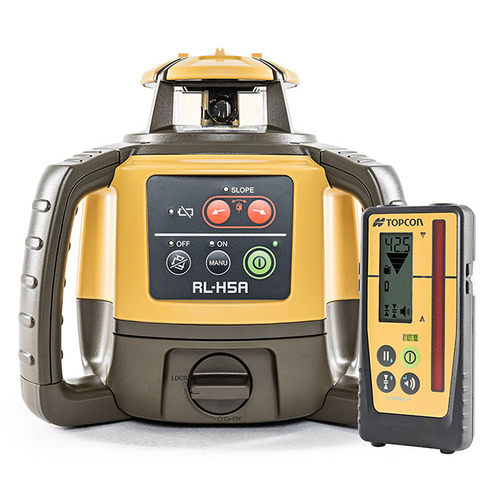

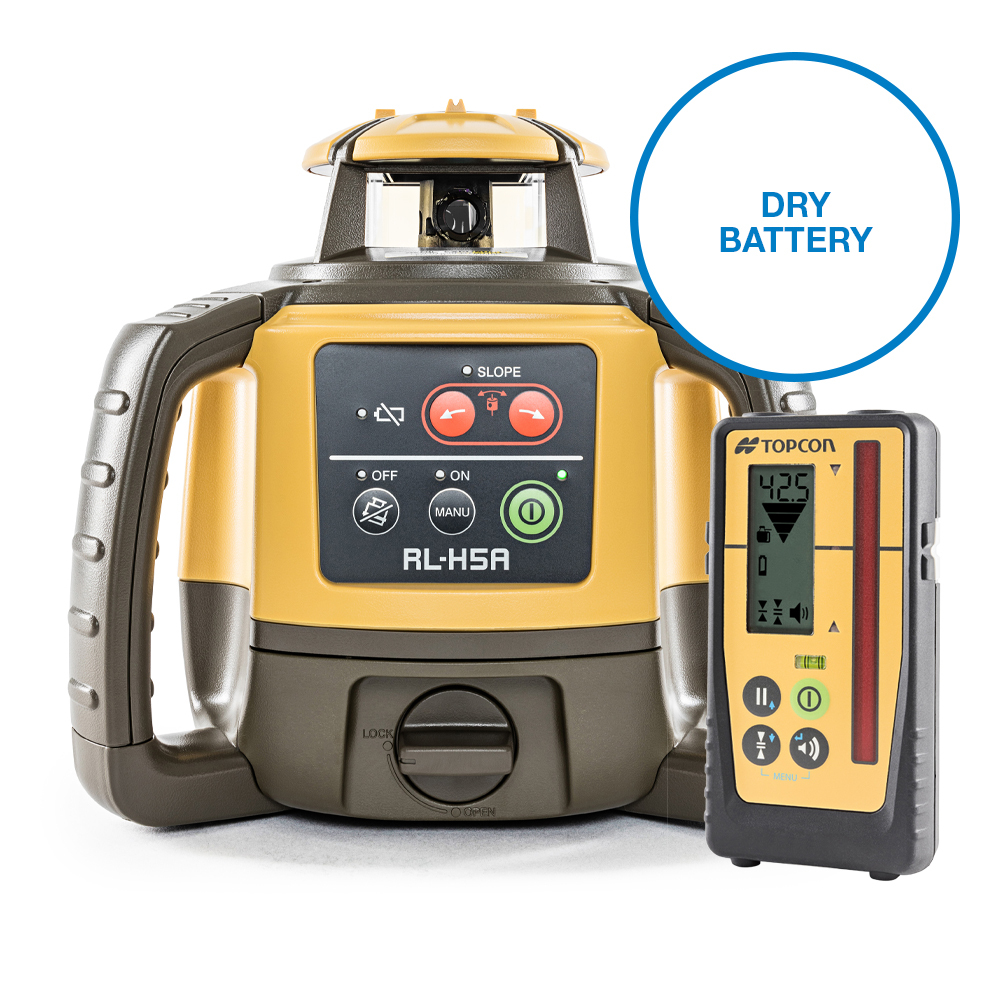

Topcon RL-H5A Rotating Laser (Dry Battery PREMIUM - LS100D Receiver) 1021200-17

$2,295.00

More info.

Make 4 payments of $573.75 over 8 weeks and get it now!



In Stock


Calculate Shipping

Designed for a wide variety of applications, the RL-H5 series is the next generation of rotating lasers from Topcon.

The RL-H5A next generation self-levelling rotating laser is an easy-to-use, long-range high accuracy laser with a long battery life and all-weather dependability.

With electronic self-leveling, you press the power button and go right to work in seconds. If the RL-H5A gets disturbed on the job it re-levels itself automatically. The self-leveling motors are accurate to ±10 arc seconds. The RL-H5A excels in long range operation. Need to shoot elevations up to 400m from your laser? No problem! This instrument has the power and range to cover a 800m (diameter) jobsite.

This rotating laser level gives you the option of 100 hours of continuous usage with D cell (4 x) batteries (included), or 60 hours with the optional rechargeable (Ni-MH) battery pack.

The RL-H5A is "jobsite tough" and with its IP66 rating, the unit can withstand dust, a sudden shower and even torrential rainfall. Topcon stands behind this reliable and accurate laser with a 5 year warranty.



Features:
  • Working Range 800m
  • Accuracy ±1.5mm @ 30m
  • Manual grade change to 5%
  • Dust/Water Rating IP66
  • LS-100D Premium Receiver (mm)
  • Dry Alkaline Battery (4 x D-Cell)
  • 5 Year Warranty
Specifications:
Accuracy H: ±10 arc seconds
Self-Levelling Range Horizontal ±5°
Working Area 800m
Rotation Speed 600 rpm
Dust/Water Rating IP66
Operating Time D-Cell Dry (100 hours)
Operating Temperature -20°C to 50°C
LS-100D Premium Receiver ±0.5,1,2,5,10 mm

(1021200-17)

SKU 1021200-17
Barcode # 9345954004188
Brand Topcon
Shipping Weight 7.0000kg
Shipping Width 0.550m
Shipping Height 0.280m
Shipping Length 0.470m
Shipping Cubic 0.072380000m3
Assembled Length 0.270m
Assembled Height 0.390m
Assembled Width 0.440m
