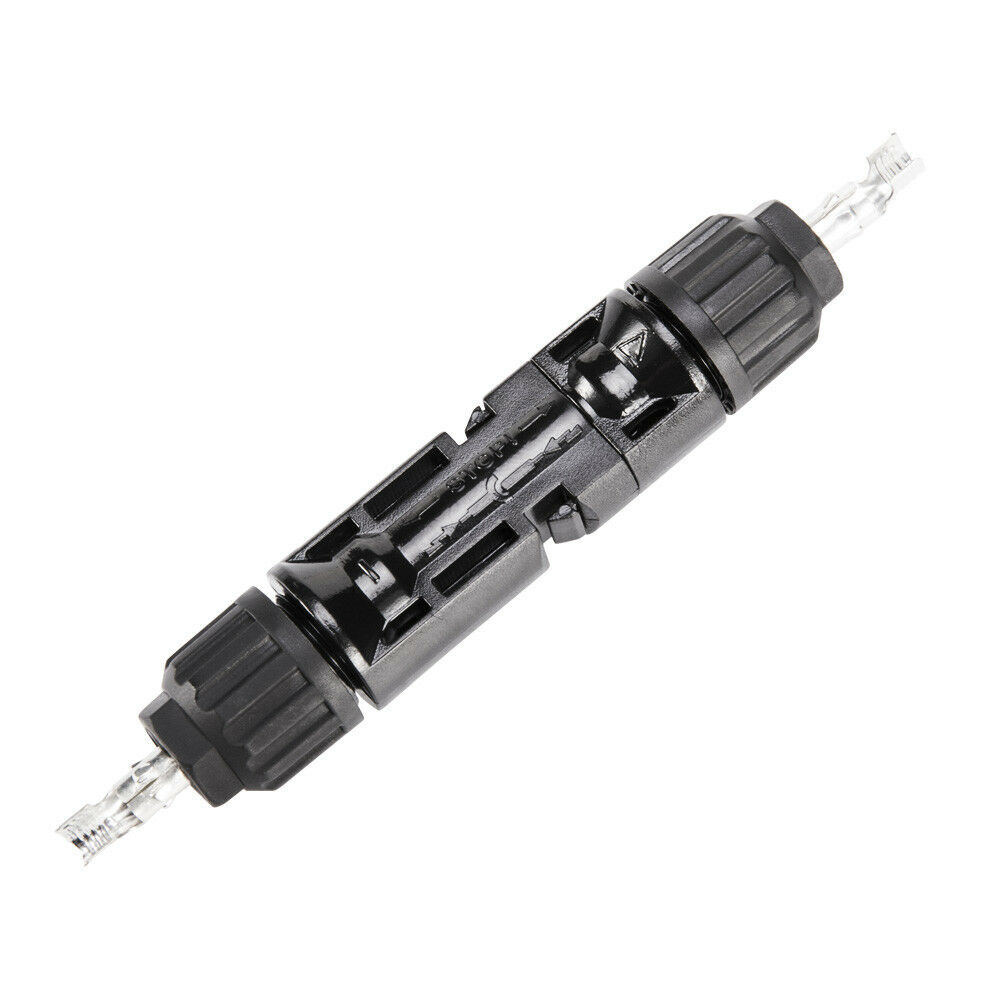

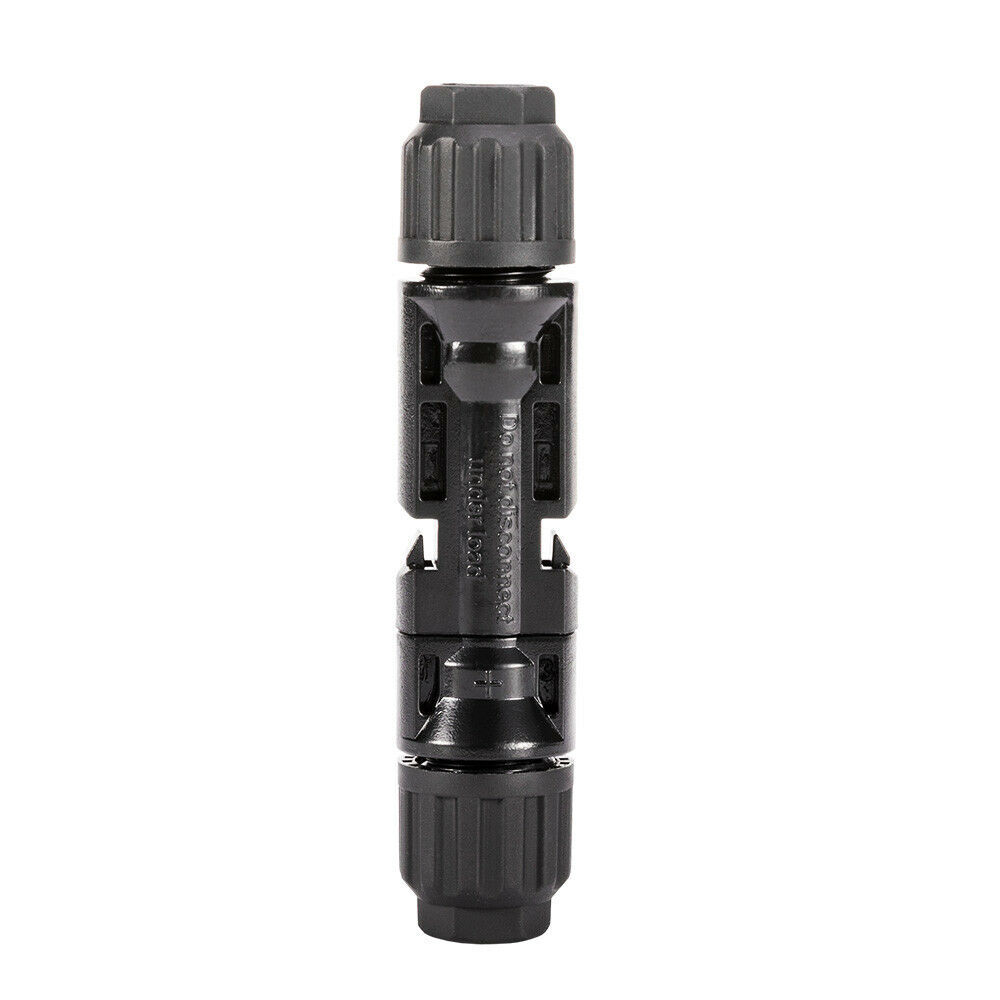

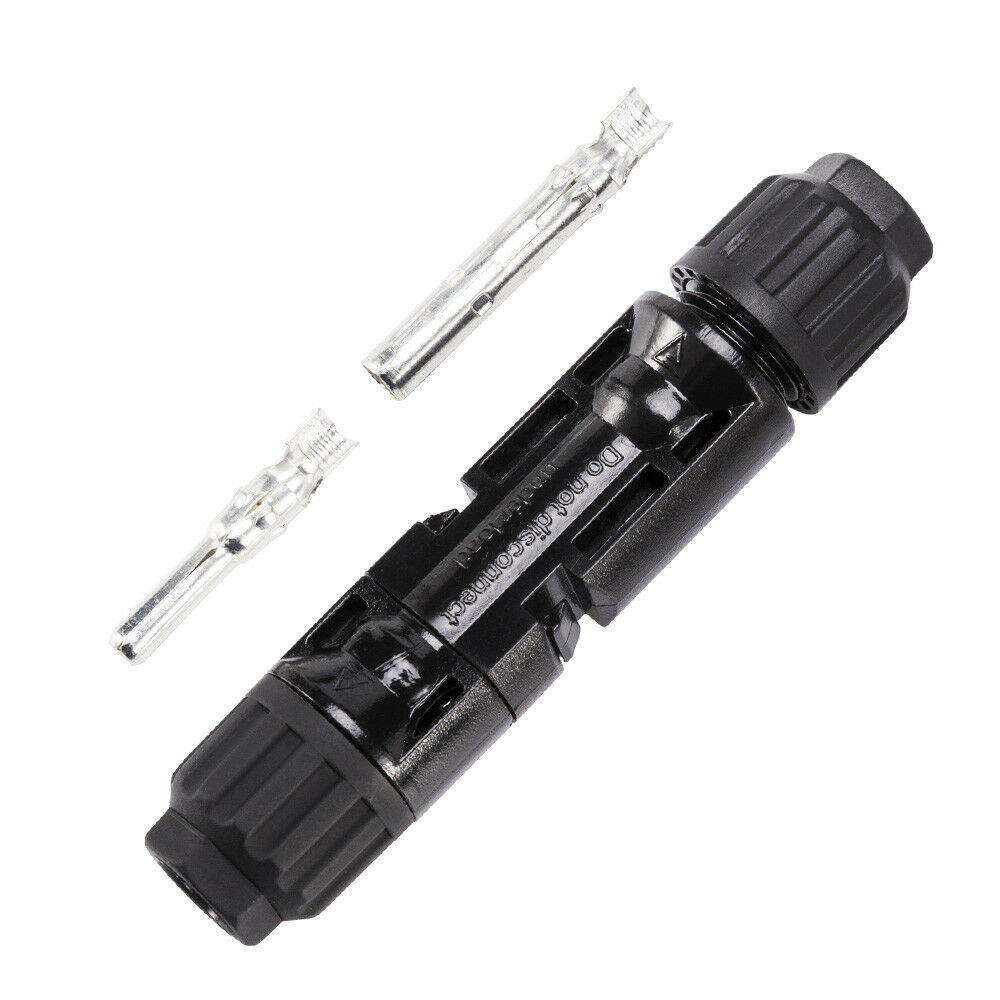

20 Pairs Connectors 30A for PV Solar Panel Male & Female Cable Waterproof

Selected Automotive Discounts - March

$28.76

More info.

Make 4 payments of $7.19 over 8 weeks and get it now!



In Stock


Calculate Shipping

DESCRIPTION
.

FEATURES
Protection Class:2
Rated Current:22(2.5 mm) 30A(4 6 mm)
Protection Degree:IP2X unmated;IP67 mated

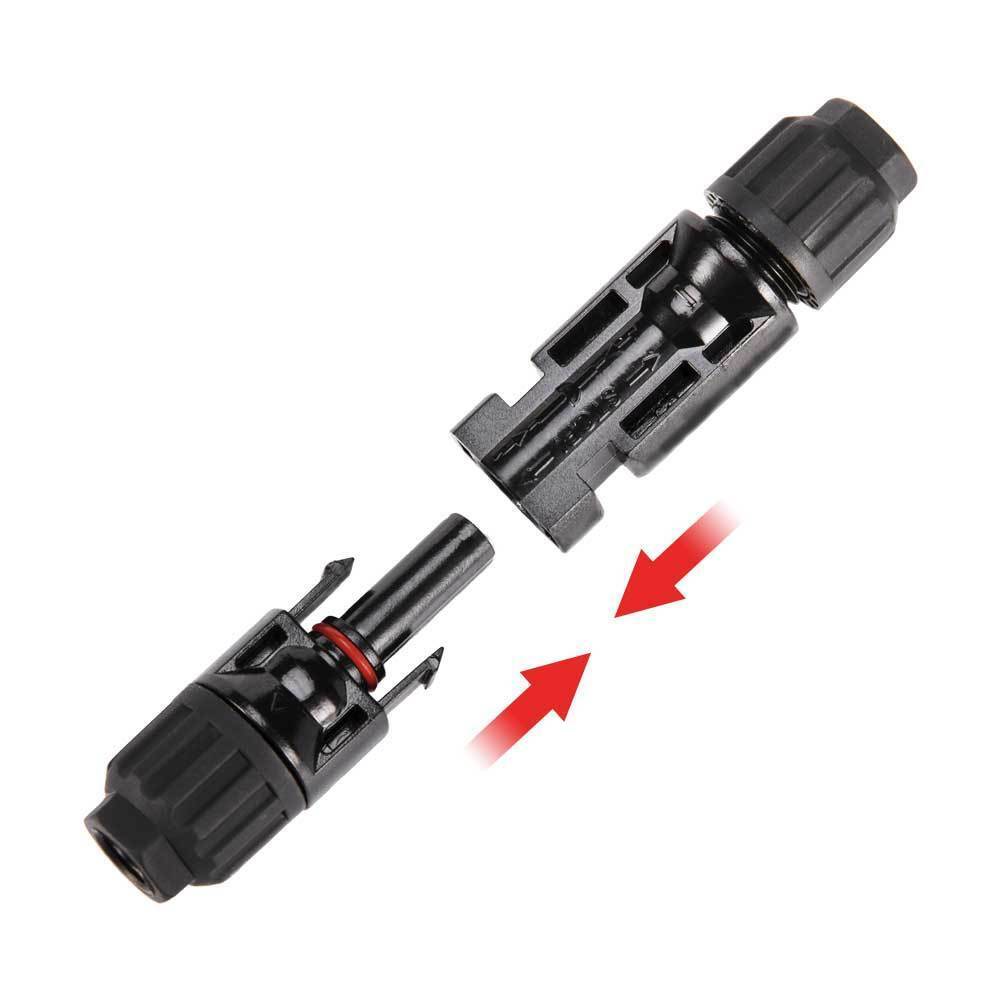

Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
Compatible with PV cables with different insulation diameters
Resistance of extra high & low temperature and fireproof
Load capability with big current and high voltage
Locking system Snap in

SPECIFICATIONS
Rate Voltage:1000V
Rated Current:30A(4mm2 6mm2)
Waterproof Rate:IP 67
Test Voltage:6KV(50Hz)
Insulation material:PPO
Contact material Copper:Sliver plated
Safe Class :2
Flame Class:UL94-V0
Contact resistant of plugg Connectors: 5m
Insertion force:50N

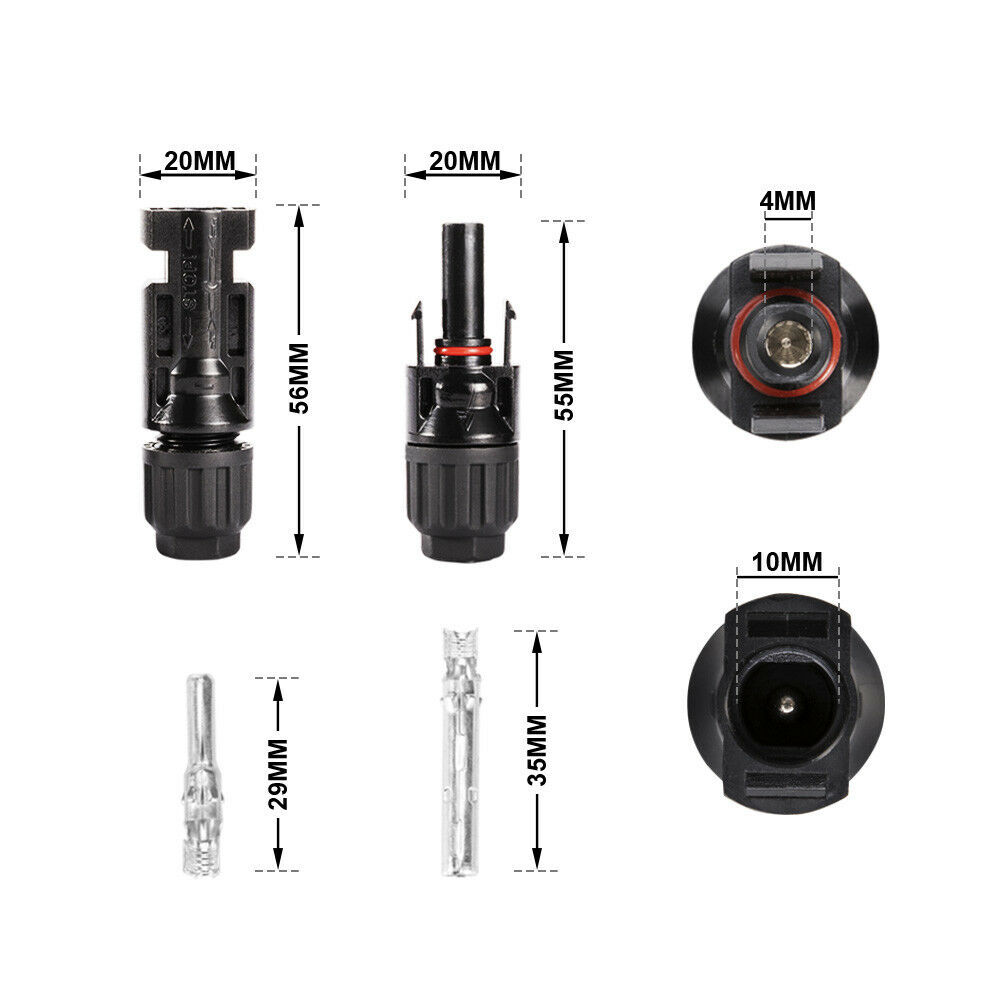

Diameter of Pin or Socket:4mm
Locking System:Snap in
Suitable cable :2.5mm2/4mm2/6mm2(AWG14/12/10)

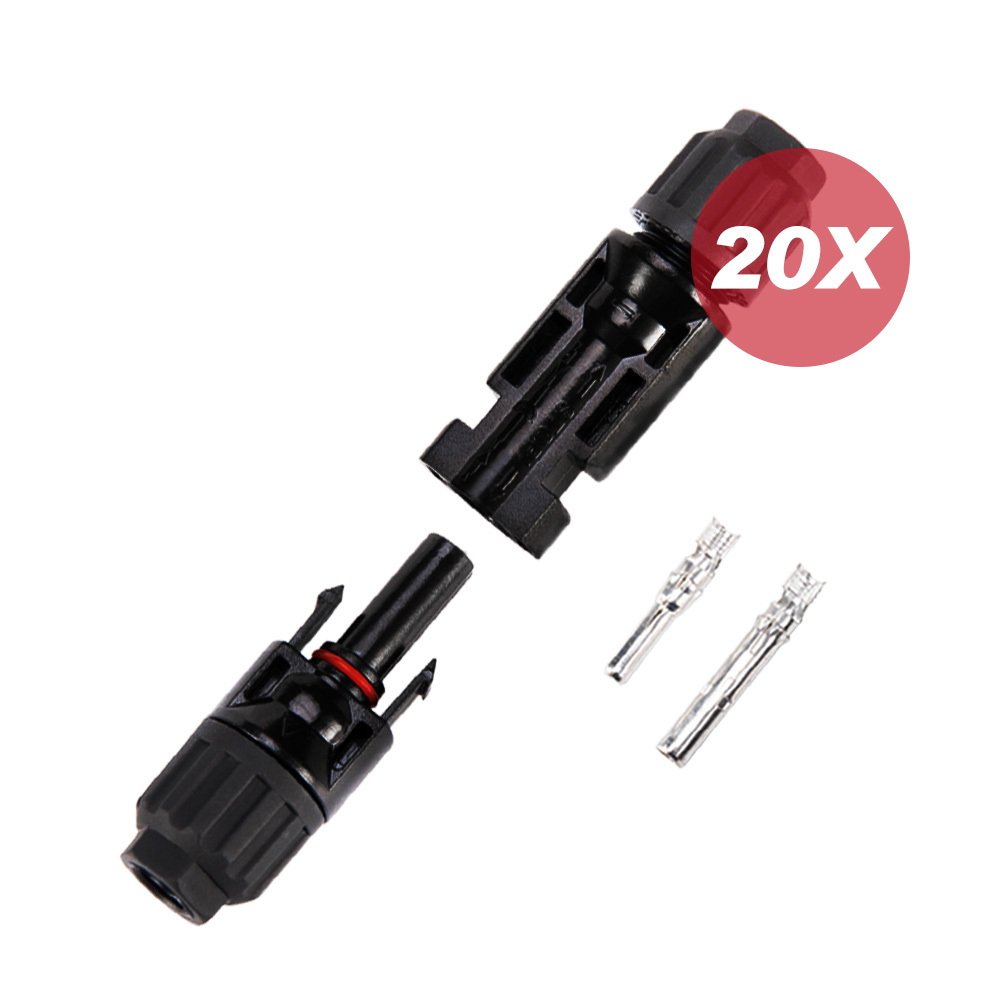

PACKAGE INCLUDES
20x Male connectors
20x Female connectors

WARRANTY
12 months warranty

(ESMC001A_10X2-SUN)

SKU ESMC001A_10X2-SUN
Model # ESMC001A_10X2-SUN
Brand Mobi
Shipping Weight 5.0000kg
Type Automotive Electrical
