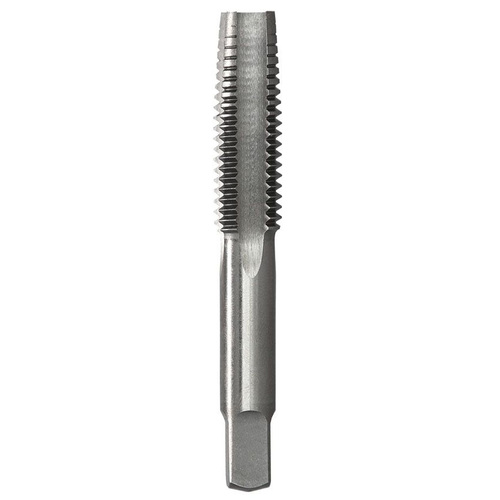

Bordo 12 x 1.25mm MF Taper Chrome Tap 4222-12.00T
More infoFeatures:
- 12 x 1.25mm MF Taper Chrome Tap
- Chrome Alloy Spark Plug (Metric Fine) Taper Hand Tap.
- Used as thread chasers to clean an existing thread.
- They can also be used to create a new female thread in non-ferrous metals and plastics.
- Chrome alloy taps are not suitable for creating precision, safety or critical threads.
- Metric Fine angle of thread is 60 degrees.
- The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
- Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
- The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).
- Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.
Specifications: | |
|---|---|
| Diameter (mm) | 12 |
| Drill Diameter (mm) | 10.8 |
| Overall Length (mm) | 76 |
| Pitch (mm) | 1.25 |
| Lead | Taper |
| Thread Form | Metric Fine |
(4222-12.00T)
| SKU | 4222-12.00T |
| Barcode # | 9326518041641 |
| Brand | Bordo |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.036m |
| Shipping Height | 0.138m |
| Shipping Length | 0.020m |
| Type | tools |
