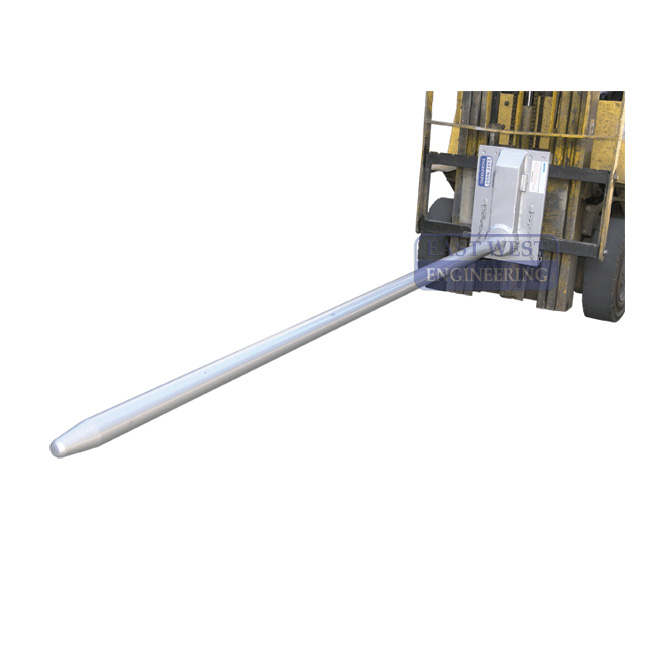

East West Engineering Carriage Mounted Roll Prong 1200mm 200kg RPC-QR2-40-1200
Made To Order - Lead Time Applies
More infoFeatures:
- Carriage Mounted Roll Prong Type RPC-BH4-150-1200
- Carriage Mounted Roll Prongs suitable for carpet, vinyl, fabric or similar products.
- Units are available for Class II, III and IV Forklift carriages, along with pin mounted.
- All "QR" model Roll Prongs feature "Quick Release" lower Carriage Hooks and a spring loaded locating pin for easy installation.
- Prongs are manufactured from high tensile steel.
- The 'lost load' on the Class II Roll Prong is 100 mm and on the Class III Roll Prong is 200 mm.
- For Class IV or V mountings, please ask for drawings of mounting plate designs and specifications.
- The Prongs are manufactured from high tensile steel, the standard finish on all Roll Prongs is painted enamel.
Specifications: | |
|---|---|
| Safe Working Load | 200 kg |
| Load Centre | 600 mm |
| Carriage Mounting Class | II |
| Lost Load | 100 mm |
| Prong Length | 1200 mm |
| Prong Diameter | 40 mm |
| Weight | 63 kg |
(RPC-QR2-40-1200)
| SKU | RPC-QR2-40-1200 |
| Brand | East West Engineering |
| Shipping Weight | 63.0000kg |
| Shipping Width | 0.350m |
| Shipping Height | 1.300m |
| Shipping Length | 0.550m |
| Assembled Length | 1.300m |
| Type | tools |
