Dayco Automatic Belt Tensioner Cadillac Holden Adventra Colorado Crewman Rodeo

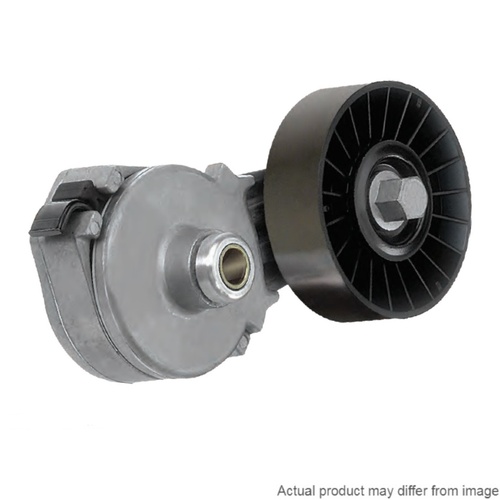

Dayco No Slack Automatic Belt Tensioner

Designed to maintain constant tension on serpentine belt drives
Serpentine belt drives consist of a single belt that powers most, if not all, of the engine’s accessories.

To maintain the proper tension throughout the drive, an automatic, spring-loaded tensioner is incorporated into the drive system geometry.

Dayco’s Automatic Belt Tensioner features a patented “flat spring” design that’s engineered to provide less operating range variations in tension.

This reduces the risk of premature accessory bearing failure due to high tension when a new belt is installed.

It also lessens the risk of belt squeal and slippage, or poor accessory performance caused by low tension after the belt begins to stretch and wear. A Teflon strip wound within the spring resists abrasion.

The flat spring itself is coated to resist rust.

Other superior design features include a steel locator pin (where the application demands).

A heavy-duty cast aluminium spring case resists cracking and fatigue. The heavy-duty cast aluminium arm offers additional strength and less distortion.

An aluminium retainer ring locks the spring case and arm together, and seals against corrosion.

A steel pivot tube (where the application demands) provides additional strength for critical torque requirements.

A thermoplastic rubber “spring slot plug” keeps out harmful contaminants. The lubricated nylon “pivot tube bushing” and “spring bushing” promote quieter performance.

A rubber “O” ring seals against dust and grime.

The zinc coated mounting bolt resists rust, and is concentric for a more even degree of constant tension.

In order to meet OEM performance standards, Dayco Automatic Tensioners come with either a glass-filled polymer (plastic) or steel pulley, that features a dust cover to protect against contaminants.

Fits the following Make, Model, Series:

Holden > Adventra > Mar 2005 - Dec 2006, 3.6L, V6, 24V, DOHC VVT, MPFI, VZ, 190kW, EngCode: LY7 (H7)

Holden > Colorado > Jul 2008 - May 2012, 3.6L, V6, 24V, DOHC, MPFI, RC, 157kW, EngCode: LCA (H9)

Holden > Crewman > Apr 2005 - Jul 2006, 3.6L, V6, 24V, DOHC, MPFI, VZ Cross 6, 175kW, EngCode: LE0 (HB)

Holden > Rodeo > Dec 2005 - Aug 2008, 3.6L, V6, 24V, DOHC, MPFI, RA, EngCode: LCA (H9)
