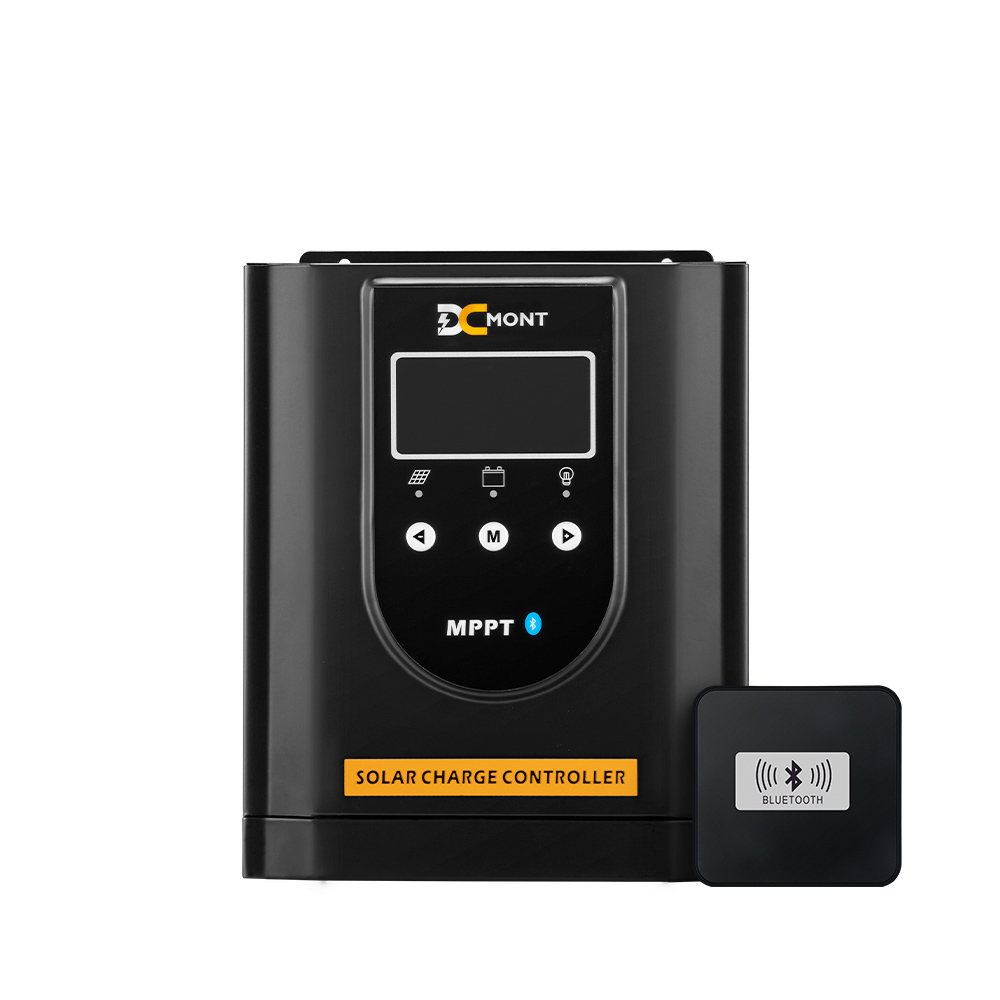

DC MONT 40Amp MPPT Solar Charge Controller Regulator Bluetooth 12V/24V/36V/48V LiFePO4 Battery Compatible

DESCRIPTION
An MPPT solar charge controller enables the panel to operate at the optimum voltage & current for maximum power output and is 30% more efficient than a PWM solar charge controller. This DC MONT 40A Bluetooth MPPT solar controller features a high tracking efficiency of up to 99.5% & peak conversion efficiency of 98%.The solar controller is compatible with various lead acid & lithium-ion batteries. And the solar regulator features 4-stage charging (bulk absorption float & equalization) of lead acid batteries and 2-stage charging (bulk & absorption) for lithium batteries & lithium reactivation thus prolonging battery’s lifespan. With the backlit LCD display you can easily view the charge status progress & discharge of your setup. The Bluetooth module allows you to monitor your system and change parameters from your cell phone. The MPPT solar controller can harvest more power out of your panel especially when the sky is partially clouded and is ideal for camping boating RV use etc.

FEATURES
Innovative MPPT Tech: This 40A MPPT solar charge controller features a high tracking efficiency of up to 99.5% and peak conversion efficiency of 98%.
Temperature Monitoring & Compensation: The remote temperature sensor measures battery temperature in real-time for accurate temperature compensation.
Automatic Voltage Detection: This Bluetooth MPPT solar controller automatically detects 12V / 24V / 36V / 48V DC system voltages.
Highly Compatible: This MPPT solar controller is compatible with lead acid batteries such as flooded AGM & gel batteries and lithium-ion batteries.

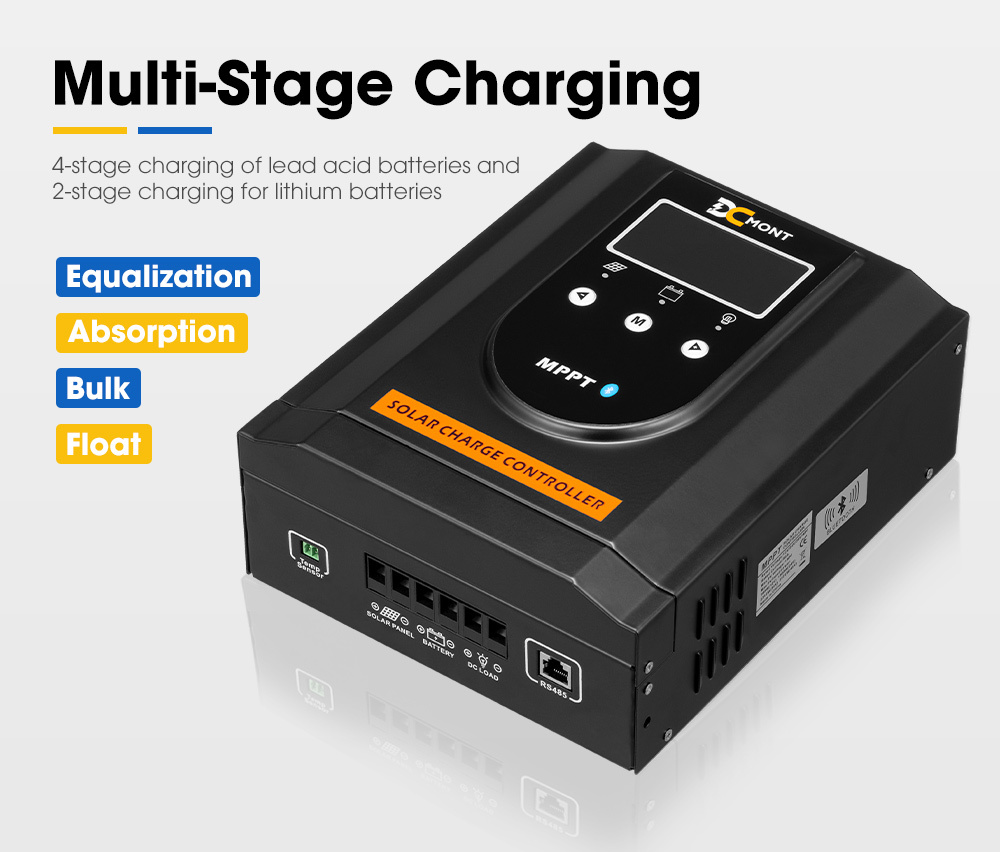

Multi-Stage Charging: This solar regulator features 4-stage charging of lead acid batteries and 2-stage charging for lithium batteries as well as lithium reactivation.
Full Protection: This MPPT solar regulator can protect against reverse polarity over-charge/discharge over load/temperature short circuit & reverse current.

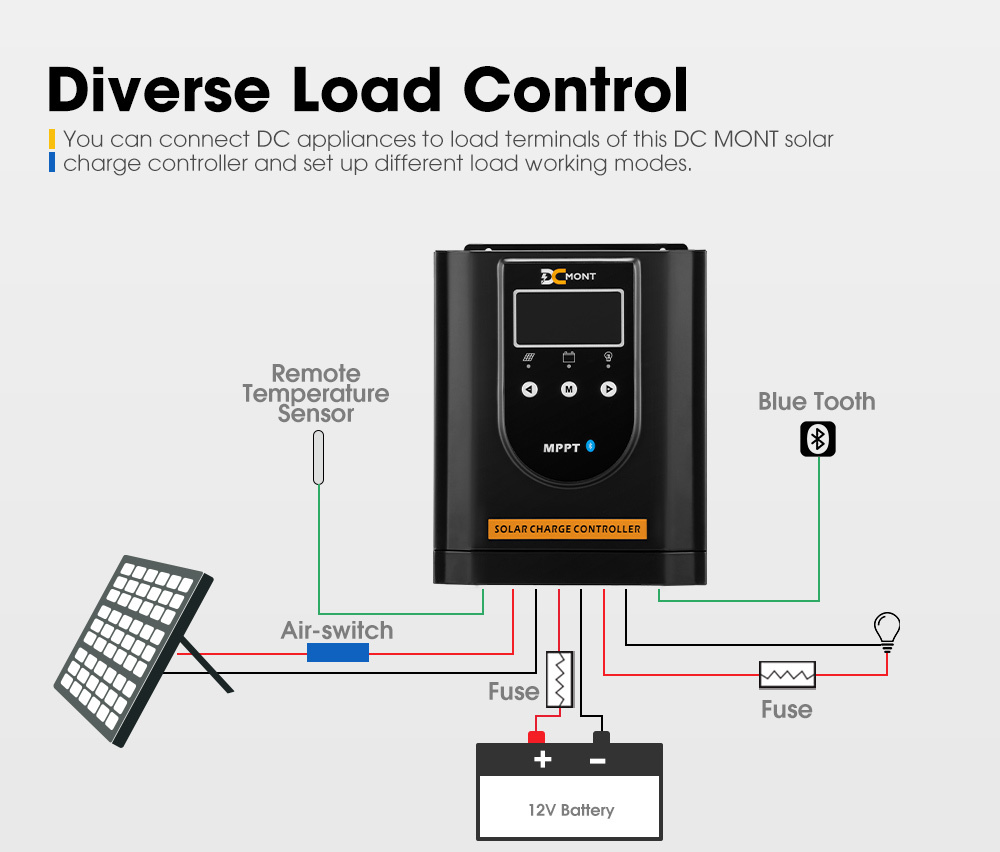

Diverse Load Control: You can connect DC appliances to load terminals of this DC MONT solar charge controller and set up different load working modes.
Backlit LCD Display: With the TFT color LCD screen you can easily view the charge status progress and discharge of your setup.
Remote Monitoring: The included Bluetooth module allows you to monitor your system and change parameters directly from your cell phone.
Rapid Heat Dissipation: This solar controller features a fan and ventilation openings which ensure excellent heat dissipation for smoother operation. Note: For Bluetooth Connection set the baud rate to 9.6kbps see manual for more info.

SPECIFICATIONS
System Voltage:12V/24V/36V/48V Auto Recognition
Rated Battery Current:40A
Rated Load Current:20A
Max. Battery Voltage:57.6V
Max Solar Input Voltage:150V
Max Solar Input Power:12V / 520W 24V / 1040W 36V / 1560W 48V / 2080W
Self-Consumption:35mA @ 12V/24V/36V/48V
Temp Compensation:-4mV/C/2V
Max Terminal Size:25mm / 3AWG
Working Temperature:-20~+55C
Storage Temperature:-30~+80C
Humidity Range:10%~90% No Condensation
Enclosure:IP32
Altitude: 3000m
Communication:RS485 RJ45 Port
Network Cable Type:Cat5
Certification:FCC Part 15 Class B; CE; RoHS
Package Size:28.5x25x16cm
Gross Weight:2.84kg

PACKAGE INCLUDES
1 x MPPT Solar Controller
1 x Bluetooth Module
1 x Remote Temperature Sensor
1 x User Manual

WARRANTY
2 Years Warranty
