East West Engineering Bulk Bag Filling Frame WLL 1000kg BFU250
Made To Order - Lead Time Applies

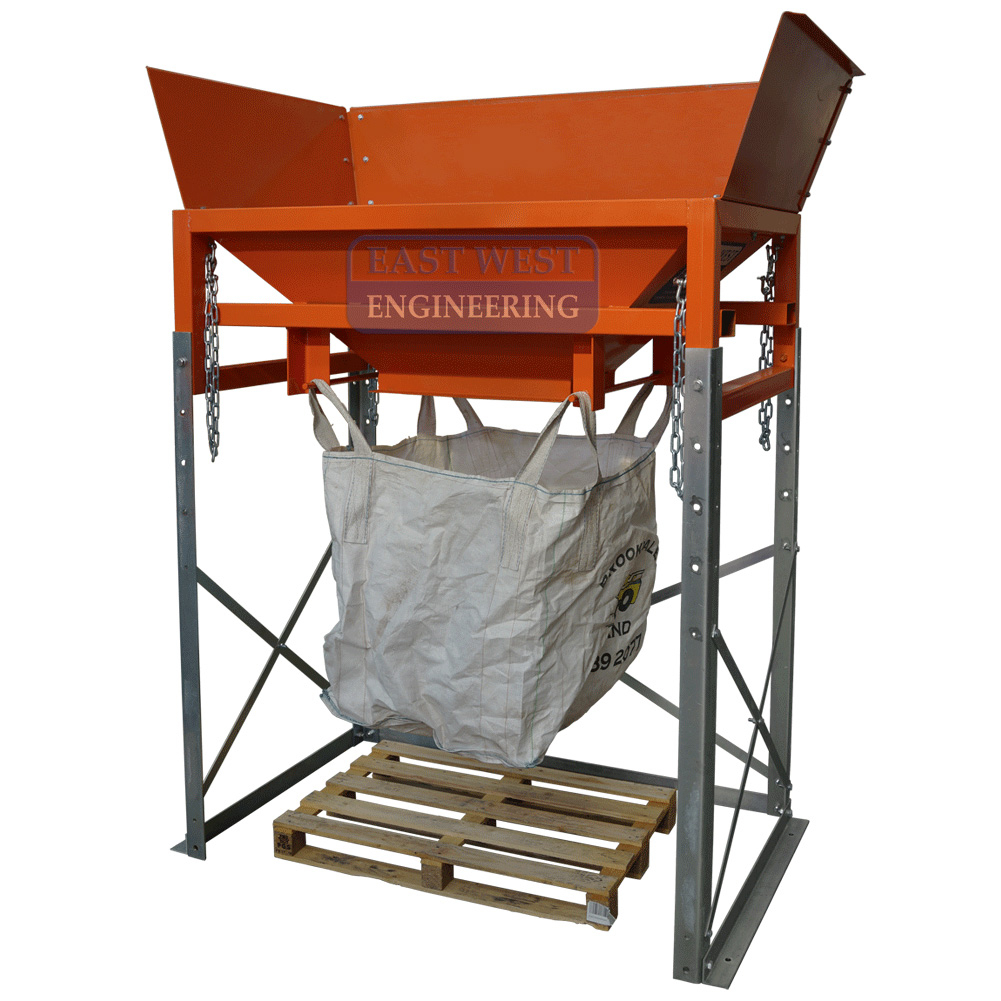

More infoThe BFU250 Bulk Bag Filling Frame saves hours of labour and reduces risk of injury. This frame is designed to safely hook open a bulk bag and fill with free-flowing bulk products such as sand and gravel etc, removing the need for the operator to hold the bag open or manually fill themselves.
Features:
- Bulk bag can be held in position by either the bag retaining pin mounts allowing for easy removal by forklift or pallet jack, or the adjustable bag restraining chains allowing bag to be positioned at optimal height.
- 3 adjustable height settings allow optimal removal of filled bags to suit your operational requirements
- Fork pockets fitted for easy transport around the worksite
- Optional clamshell gate (BFU250CS) for maximum material flow and control
- Optional spill guard (BFU250SG)
- Supplied with 4 safety swivel hooks and retaining pin mounts
- Enamel paint finish
- Supplied standard as 'flatpack' for on-site assembly.
Specifications: | |
|---|---|
| Mounting Class | Class 2 |
| Working Load Limit | 1000 kg |
| Load Centres | 900 mm |
| Dimensions | 1800 x 1150 mm |
| Adjustable Height Settings | 3 |
| Fork Pocket Size | 140 x 65 mm |
| Fork Pocket Centres | 850 mm |
| Unit Height | 1700 - 2195 mm |
| Unit Weight | 270 kg |
(BFU250)
| SKU | BFU250 |
| Brand | East West Engineering |
| Shipping Weight | 345.0000kg |
| Shipping Width | 1.200m |
| Shipping Height | 1.800m |
| Shipping Length | 0.800m |
| Assembled Length | 1.800m |
| Type | tools |
