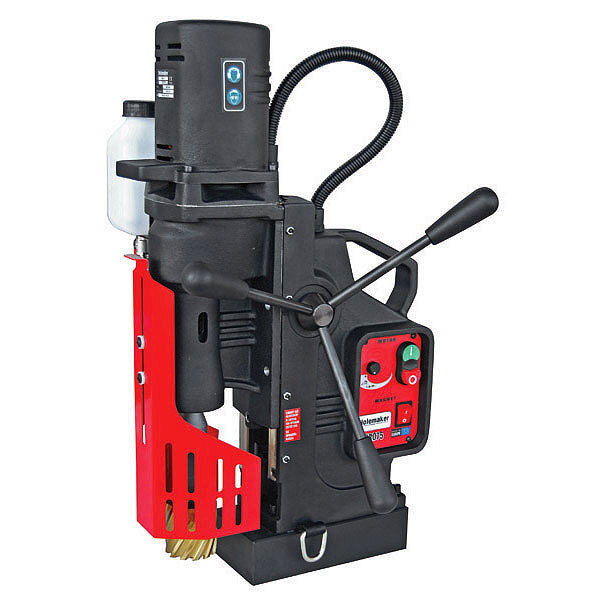

Holemaker Pro 75mm Swivel Base Reversible Magnetic Drill HMPRO75SR

Picture shown is for illustration purpose only. Size may vary. Please refer to description.

Features:

• The Holemaker Pro 75SR is as per the standard Holemaker Pro 75, but with the two additions of a swivel base system and reversible gearbox.
• The swivel base system makes it easier to move the machine into the correct position for drilling.
• Once the drill has been fixed to the work-piece with the magnet, it can then be moved back and forward 15mm, or swivelled left and right 30, and is then fastened into position with one socket head bolt.
• The combination of both the reversible variable speed gearbox, and the swivel base system, makes this a very versatile machine that is ideal for tapping.
• The Holemaker PRO 75SR is a versatile, multi-purpose machine, equipped with a No. 3 Morse Taper spindle.
• The 2 speed gearbox with electronic variable speed, Electronic Speed Stabilization System (ESSS), and motor soft start feature makes this machine ideal for tapping up to M24.
• With a large cutting capacity of 75 mm diameter and 110 mm depth using Holemaker cutters, this machine will suffice for most holemaking requirements.
• Other standard features include gravity feed coolant system & left or right hand feed handle operation.
• The unique semi-automatic gib adjustment system enables simple, fast and always correct fine tuning without any expert knowledge or experience.
• Supplied complete with arbor for use with Holemaker cutters up to 75 mm Depth of Cut.
• Through Spindle Coolant System
• Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion
• Supplied In Metal Carry Case With Cutter Guard & Safety Strap

The Holemaker Pro 75SR makes difficult tapping jobs run smooth and easy. With the optional tapping head fitted, the Pro 75SR will tap a maximum M20.

Tapping With The Holemaker Pro 75SR (with Part # SPTH103:

• Protection against tap breakage ensured by an ultra sensitive and smooth multi-position operating ball-clutch.
• Forward and reverse ball drive design transmits rotational power to the tap and disengages smoothly and silently.
• Axial float ensures smooth tapping and better thread profile.
• Cushioned drive incorporating compression and extension, eliminates the possibility of cross threading during the tapping process, and ensures clean and accurate threads.
• A planetary gear reversing mechanism transmits smooth positive reverse to the tap retraction and it retracts 75% faster than it enters.
• Accurate depth control by means of it's precise neutral mechanism.
