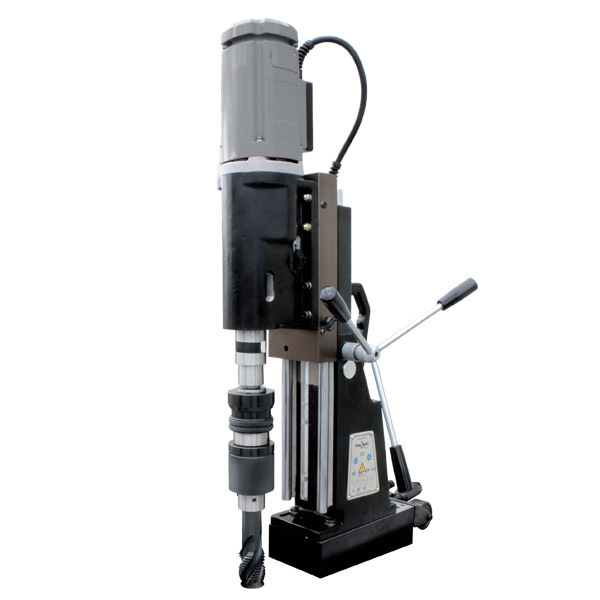

Holemaker Tap 50 5MT 3kw 240V 200x310mm Magnetic Base Drill TAP50

$16,995.00

More info.

Make 4 payments of $4,248.75 over 8 weeks and get it now!



In Stock


Calculate Shipping



Features:
  • The TAP 50 is a portable magnetic drilling machine with 200mm diameter drilling and M52 tapping capacity (with optional tapping head) TAP 50 has a 3.0kW single phase 240V motor.
  • The spindle bore is No.5 Morse Taper.
  • The TAP 50 is designed for special and challenging applications that no other portable magnetic drill has been able to solve before.
  • Feed handles can be placed on the left or right sides of the machine.
  • Reversible.
  • Heavy duty dual rail slides provide rigidity and quick movement.
Specifications:
Capacity (Diameter) 200mm
Capacity (Depth) 250mm
Capacity (Tapping) 52mm
Capacity (Twist Drill) 52mm
Motor Power 3000 watt
Input Power Single Phase 240V
Gearbox 2 Speed Variable Gearbox - 20-40 / 45-110
Weight 53.0kg
Stroke 265mm
Height (min/max) 710mm / 975mm

(TAP50)

SKU TAP50
Barcode # 9328042041425
Brand Holemaker
Shipping Weight 85.0000kg
Type Tools
