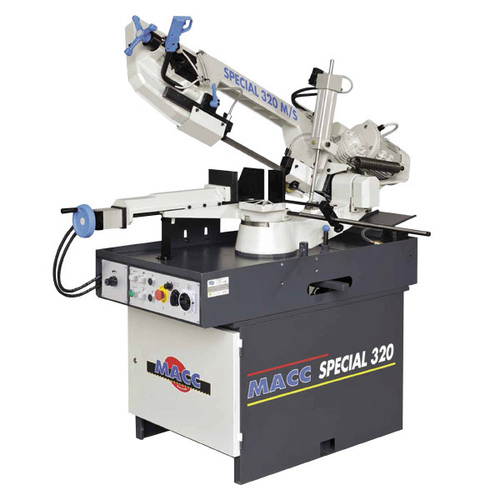

MACC 230mm Semi-Auto Swivel Head Bandsaw 2 Speed 415v 3ph MB-320MS-3
More info
Features:
- Italian made quality
- Swivel head enables 0° to 60° mitre cuts
- Dual mode operation
- Trigger switch with manual downfeed for small quick cuts
- Semi-automatic function for large production type jobs
- Incorporated recirculating coolant system
- Adjustable material stop for repetitive production
- Comes complete with stand & blade
Semi-automatic function:
- Operator Inserts Material
- Operator Press Start Button
- Vice Clamps Material
- Blade Motor Starts
- Bow Lowers & Cuts Material
- Blade Motor Stops
- Bow Rises, Vice Opens
Specifications: | |
|---|---|
| Motor | 1.5 HP Three Phase |
| Blade Speed | 2 Speed 35 - 71 mpm |
| Blade Size | 27 x 0.9 x 2825 mm |
| Bed Height | 965 mm |
| Weight | 390 kg |
Cutting Capacity: | |||
|---|---|---|---|
| Cutting Angle | Round | Square | Rectangle |
| 90° | 230 mm | 220 x 220 mm | 300 x 170 mm |
| 45° | 200 mm | 180 x 180 mm | 230 x 180 mm |
| 60° | 130 mm | 120 x 120 mm | 130 x 110 mm |
(MB-320MS-3)
| SKU | MB-320MS-3 |
| Barcode # | 9038900000111 |
| Brand | MACC |
| Shipping Weight | 390.0000kg |
| Type | Tools |
