PROJECTA LVD30 LOW VOLTAGE CUT OUT 12 VOLT 30 AMP WITH 2 YEAR Manufacturer Warranty

12 volt appliances and equipment can continue to draw power from a battery even after the battery has been discharged below safe operating voltage levels. This deeply discharged state can cause damage to the battery and compromise the battery's life and performance.

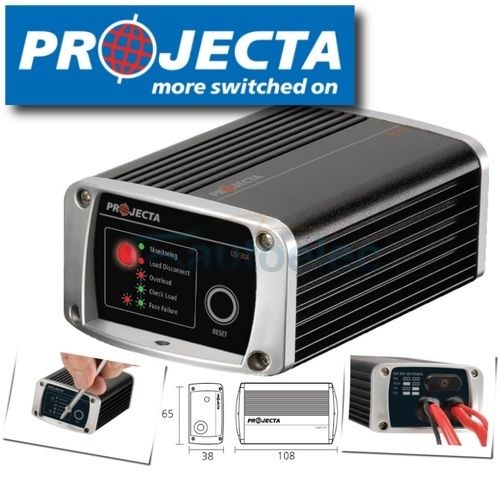

The Projecta LVD30 is designed to monitor the battery voltage and disconnect the DC load when battery voltage falls below a present disconnect point , preventing further discharge and possible damage.Once the battery is recharged and the battery voltage is above the 13 volt mark the DC load will automatically be reconnected.

To best suit your application the LVD30 features 4 adjustable disconnect points allowing you to tailor the disconnect voltage level to best suit your application.

, ,, , , ,, ,, , , ,, , , ,, ,, , , ,, , , ,, ,, , , ,, ,, , , ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, ,
OVER DISCHARGE PROTECTION
 Disconnects the DC load when the battery voltage reaches low levels
ADJUSTABLE VOLTAGE
 Features 4 preset disconnection voltages
FULLY SEALED (IP65 RATED)
 Fully sealed shock proof aluminium housing protects against water and dust ingress

SPECIFICATIONS
 OUTPUT CURRENT30 AMPS
 INPUT VOLTAGE10 -16 VOLTS
 LOW VOLTAGE DISCONNECT SETPOINTS10V , 10.5V , 11V & 12V
 RECONNECT VOLTAGE13V
 DIMENSIONS108 x 66 x 38
 WEIGHT300 GRAMS



SKU LVD30
Model # LVD30
Barcode # 9315219303028
Brand Projecta
Shipping Weight 0.4000kg
Unit Of Measure ea
Type Charger
Brand Projecta
MPN LVD30
Model LVD30
type Camping and Outdoor
