Projecta Power Inverter Ip600 Pure Sine Wave 600W 12V 12 Volt Car Dc To Ac New

PROJECTA 600 WATT PURE SINE WAVE INVERTER MODEL IP600, BRAND NEW IN SEALED BOX WITH FULL NATIONWIDE Manufacturer Warranty



Projecta Intelli-Wave inverters deliver class-leading performance, power efficiency and reliability making them the choice of professionals. Engineered to produce ultra clean power, Intelli-Wave inverters feature exceptional peak power performance (200% capacity for 3 secs, 140% capacity for 3 mins) allowing them to effortlessly run demanding appliances such as fridges and power tools. All Projecta inverters are fully isolated and designed in accordance with Australian standards for safety and peace of mind.

, ,, , , ,, ,, , , ,, ,, ,, , , ,, ,, , , ,, ,, ,, , , ,, ,, , , ,, ,, ,, , , ,, ,, , , ,, ,, ,, , , ,, ,, , , ,, ,, ,, , , ,, ,, ,, ,, , , ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, ,

FEATURES
	PURE SINE WAVE OUTPUT
		Watch television without static, listen to an AM radio, play your favourite game on an XBox™, Playstation™ or Wii™, run a fluorescent light, or power any other sensitive electrical appliance.

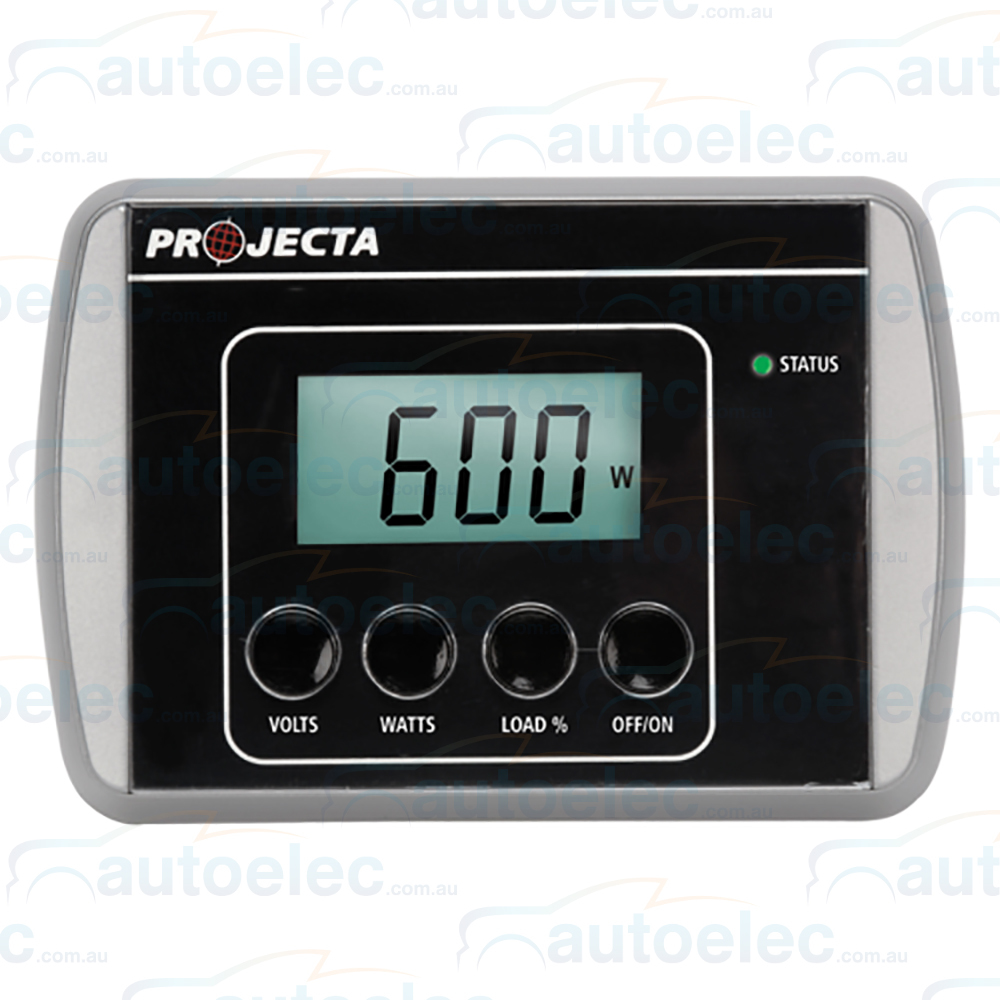

	REMOTE CONTROL DISPLAY
		The remote control display allows you to monitor the inverter’s performance and power supply levels while mounting the inverter out of sight or closer to the batteries. The remote’s off/on button allows you to switch the inverter to standby mode when it is not being used, reducing the idle current draw to just 2mA.
	LCD DISPLAY
		The IP600 and IP1000 feature an illuminated multi-function LCD screen that provides detailed information including battery voltage (volts), power usage (watts) and load capacity (percentage). This information allows you to monitor the inverter’s performance and power supply levels when running important equipment away from mains power.
	FULLY ISOLATED DESIGN
		Safety is paramount around 240V and in particular with inverters which is why Projecta fully electrically isolates the DC (and therefore battery posts, vehicle chassis, etc) from the 240V AC circuit.
	DUST PROOF
		Constructed from extruded aluminium, Intelli-Wave inverters are dust proof and shock resistant. The circuit boards have been conformal coated to protect against moisture and other elements so they are suitable for use in a range of locations.
SPECIFICATIONS
	INPUT		12V DC, 60A Max
	NO LOAD CURRENT DRAW		0.65A
	OUTPUT		230/240V AC 50Hz (Pure Sine Wave)
	OUTPUT POWER		600W Continuous (1200W Peak)
	INVERTER CLASSIFICATION		Equipotentially Bonded (EPB)
	EFFICIENCY		85-90%
	LOW BATTERY ALARM SHUTDOWN		Alarm 10.25V, Shutdown 9.75 (+/-0.2V)
	COOLING FAN		Automatically temperature controlled
	THERMAL SHUTDOWN		65°C (±5°C)
	FUSE		110A (2 x 40A, 1 x 30A)
	IDEAL BATTERY SIZE		50-130Ah
	MINIMUM BATTERY SIZE		50Ah, 400CCA
	RUN TIME WITH 600W ON 50AH BATTERY		30 min
	RUN TIME WITH 100W GLOBE ON 50AH BATTERY		4 hours
	APPROVALS		Electrical Safety, EMC
L.E.D LIGHT INDICATION
	GREEN LIGHT		Power on
	GREEN LIGHT (FLASHING)		High battery voltage shutdown
	GREEN/RED LIGHT (FLASHING)		Low battery voltage shutdown
	RED LIGHT (FLASHING)		Overload shutdown
	RED LIGHT		Over temp shutdown & output short circuit



TO VIEW THE INSTRUCTION MANUAL CLICK HERE
