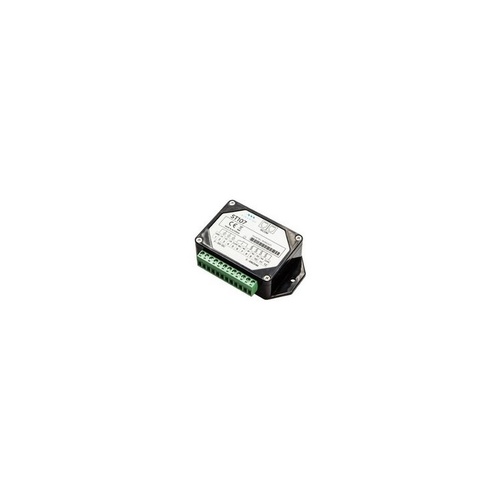

Simarine Tank Module 3x Volt 4x Tank/Temp
More infoFresh, Gray or Black Water, Petrol or Diesel keep your fluids under control with an ST107 module.
ST107 is an the ultimate digital module, that allows wide connection (and monitoring) possibilities.
It enables monitoring up to;
7 x Tank Levels
3 x Battery Voltages
4 x Temperature Sensors
Free SIMARINE Android and iOS Apps:
Simarine offers a free App to connect your PICO display to your smartphone via Wi-Fi.
The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.
| Model | Simarine Tank Level and Voltage Module |
|---|---|
| SI-ST107 | Tank Level and Voltage Module |
| Operating | |
| Power Source Voltage Range | 6-35V |
| Temperature Range | -20 - +70°C |
| Power Consumption at 12V | |
| Operating | 3.5mA |
| Voltage Measuring Channels | 3 |
| Resistive Measuring Channels | 4 |
| Relay (monostable) | |
| Maximum Operating Current | 1A |
| Maximum Common Input Voltage | 6 30V |
| Voltage Inputs | |
| Range | 0 75 V |
| Resolution | 1 mV |
| Accuracy | ± 0.2 % |
| Sampling Rate | 100ms |
| Resistance inputs | |
| Range | 0 Ohm 65 kOhm |
| Accuracy | ± 3.0% |
| Resistance inputs | |
| Range | 0 Ohm - 65kOhm |
| Connectivity | Up to |
| Voltage Sensors (voltage drop/tank level) | 3 |
| Resistive Inputs (tank level/temperature) | 4 |
| Relay Common Input (COM) | 1 |
| Relay Output Normally Open (NO) | 1 |
| Relay Output Normally Closed (NC) | 1 |
| SiCOM RJ9 Sockets | 2 |
| Installation and Dimension | |
| Dimensions (length x width x depth) | 110 x 70 x 30 mm |
| Battery Connection | M 10 bolts |
(ENER-SI-ST107)
| SKU | ENER-SI-ST107 |
| Brand | Simarine |
| Type | Automotive Electrical |
