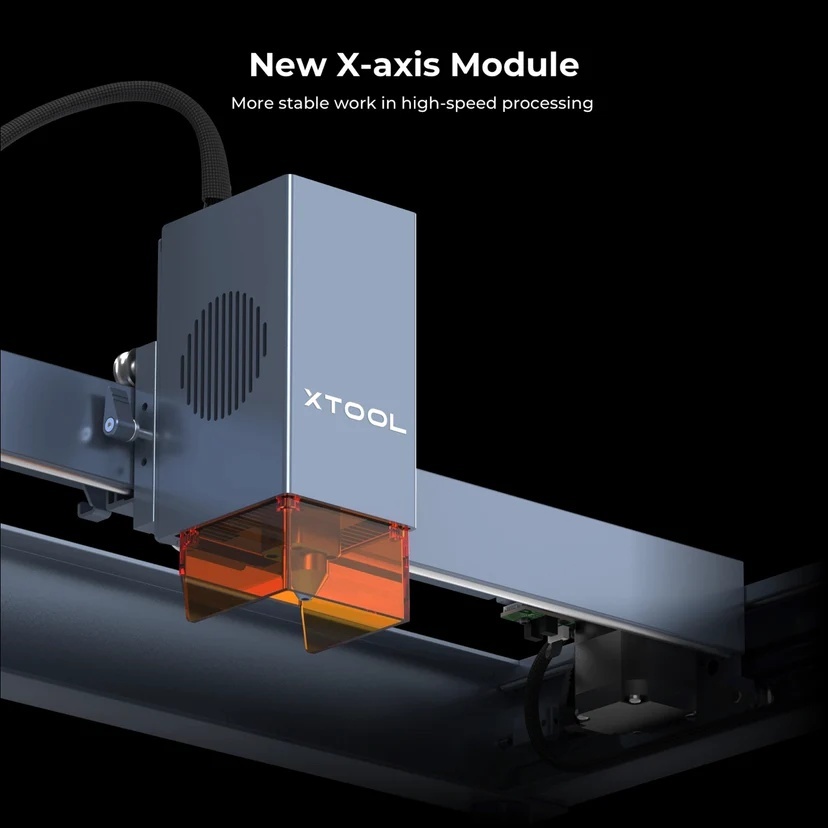

xTool D1 Pro 40W Laser Module Grey

The xTool D1 Pro 40W Diode Laser Module is the World's First 40W Diode Laser Module featuring the latest 8*5.5W laser compression technology.

The Mightiest Cutting Ability:

• 18mm hardwood cutting in one-pass
• 15mm black acrylic cutting in one-pass

• 0.1mm stainless metal cutting in one-pass



Excellent Heat Dissipation System Ensures the Best Optimal Performance. With the excellent Heat Dissipation system containing a laser fan and the meticulously designed internal structure, the heat generated by the 40W ultra-high laser module can be quickly dissipated and the temperature is controlled to ensure the best optimal processing performance.

Built-in Air Tube. Plug in the air tube and connect air assist accessories; no need for external adapter parts.


Retaining Clip. It is more convenient and quicker to change the laser module.

Magnetic Light Shield. Clean and easy to use with plug-and-play magnetic light shield.

Specifications

Machine Power: 200 W
Laser Electric Power: 144 W
Laser Module Output Power: 40W
Laser Spo: 0.1*0.15mm
Routing Speed: 400 mm/s
Working Area: 430*348mm (16.93 * 13.7 inches)

Expandable to 909*430mm (35.79*16.93 inches) with xTool Extension Kit
Max. Workpiece Height: 50 mm (2 inch)
Max. Workpiece Height with X risers: 50mm+X*45mm（each set riser height column）
Connecting Interfaces: USB/Wi-Fi/TF Card
Certification: FCC / FDA / CE
Operating Systems: Windows/macOS
Control Software: xTool Creative Space / LightBurn
File Type(s): SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc.
