Unimig Razor 200 Pulse MIG/TIG/Stick Welder U11003K

The all-new RAZOR 200 PULSE has arrived. As our latest innovation in pulse MIG, this machine comes filled with revolutionary technology across the board. Whether its MIG, pulse MIG, double pulse MIG, High Frequency TIG, pulse TIG or STICK you name it, the RAZOR 200 PULSE can handle it. Get everything pulse MIG has to offer on a 15 amp plug.

Single & Double Pulse MIG - Pulse welding reduces the heat and minimises spatter, without compromising penetration, so its perfect for thin and soft materials like aluminium. A single pulse weld alternates between a peak current and a background current. Double pulse welding works the same way, but with a second background current to add even more control over the arc.
- Reduced heat input, so you can weld thinner than standard MIG, perfect for aluminium
- Weld faster than a TIG weld, but with the same aesthetic appearance of TIG
- Spatter free welding, cutting your clean-up time to nothing
- Great penetration even with lower heat
5 LCD Touch Screen Display - Choosing your weld parameters or changing your settings mid weld has never been easier. The large touch screen display is clear, with an easy to navigate interface. You wont even need a manual to work it out.
Over 100+ Synergic Programs - With over 100 preset synergic programs, setting up for a weld has never been faster. Just select your metal, wire size, and gas, and youre good to go.
Hot Start and Crater Fill - Hot Start gives you a boost in current at the start of your weld, eliminating issues with starting on cold metal, and makes welding on thicker materials and aluminium easier.
Crater Fill ramps your welding current and voltage down at the end of a weld, so you can fill in the end of a weld at a lower power, eliminating craters and pinholes. Crater Fill and Hot Start functions mean your welds start strong and end just as strong.
4 Geared Wire Drive - With four geared wire drive rollers, you will get a more consistent and smoother wire feeding experience.
The internal housing also features storage space for additional rollers, so theyre always in reach. It also comes with an internal spool light, for max visibility in any lighting.
High Frequency DC TIG - You can maintain complete control over your TIG welds with the RAZOR 200 PULSE. The high frequency DC TIG welding mode comes with a full set of adjustable parameters, like pre- and post-flow, up and down slopes, as well as all things pulse. Everything you need, right at your fingertips.
STICK (MMA) - Youll be able to STICK weld anything, including cellulosic electrodes, plus with the addition of Anti Stick, youll never struggle to strike an arc again.
The Arc Force function helps to keep the arc stabilised throughout the weld, so it wont cut out, and stops the electrode from sticking.
Power Limit works to keep the amperage constant throughout the weld by preventing the voltage from exceeding the set value.
GLICK Heat Control - When using the GLICK function, set a base current, which you can switch to at any time during a weld by pressing the trigger button. GLICK is great for manual heat input control as you go.
Job Memory (100 Jobs) - Save your favourite weld settings with the jobs function.
Digital Control Torch - Adjust your amps, current and voltage right on the MIG torch itself. Plus, if you plug in a TIG torch, pressing the trigger will automatically switch you to the TIG screen and vice versa.
2T / 4T / SPOT - Choose between two-touch, four-touch and spot modes to maximise operator comfort on every weld.
Adjustable Arc Length - Increase or decrease your arc length while in the synergic and pulse MIG modes to suit your weld style.
Inductance Control - Change the frequency of your short circuit MIG welds with the Inductance settings, so you can choose your preferred arc characteristics.
Generator Compatible - Going off the grid? The RAZOR 200 PULSE can be connected to a generator, we recommend one with an 11kVA rating.

Specifications:
PRIMARY INPUT VOLTAGE	240V Single Phase
SUPPLY PLUG	15 AMP
RATED OUTPUT	40A/16V-200A/24V
Ieff (A)	14.9
PROTECTION CLASS	IP23S
INSULATION CLASS	H
MINIMUM GENERATOR	11.0 kVA
DINSE CONNECTOR	35/50
STANDARD	AS/NZ60974-1
WARRANTY	3 Years
SUITABLE MATERIAL	Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
DIMENSIONS	605 x 230 x 400 mm
WEIGHT	17 kg

MIG Specifications:
MIG WELDING CURRENT RANGE	40-200A
MIG DUTY CYCLE @ 40°C	15% @ 200A, 60% @ 101A, 100% @ 78A
MIG WIRE SIZE RANGE	0.6-1.2 mm
MIG WIRE SPOOL SIZE	100mm / 200mm
MIG WELDING THICKNESS RANGE	1-10mm
DRIVE ROLLER SIZE	30/22

TIG Specifications:
TIG FUNCTION TYPE	High-Frequency
TIG WELDING CURRENT RANGE	5-200A
TIG DUTY CYCLE @ 40°C	20% @ 200A, 60% @ 116A, 100% @ 90A
TIG WELDING THICKNESS RANGE	1-8 mm

Stick Specifications:
STICK WELDING CURRENT RANGE	20-180A
STICK DUTY CYCLE @ 40°C	15% @ 180A, 60% @ 91A, 100% @ 70A
STICK ELECTRODE RANGE	2.5-4.0 mm
STICK WELDING THICKNESS RANGE	2-12 mm
ARC FORCE	0-100%

Includes:

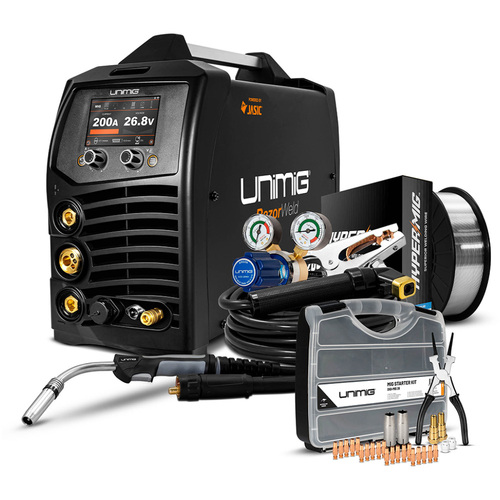

RAZOR™ 200 PULSE MIG/TIG/STICK Welder, 3m DM26 Digital MIG Torch fitted with a carbon-polyamide liner, 3m Twist Lock Electrode Holder, 3m 300 Amp Earth Clamp & Lead, Twin Gauge Argon Regulator, 1.8m Gas Hose Complete with fittings, Operating Manual, 2kg 1.2mm 5356 HYPERARC Aluminium Wire, DM26 Consumable Starter Kit

SKU	U11003K
Brand	UNIMIG
Shipping Weight	18.0000kg
Type	tools
