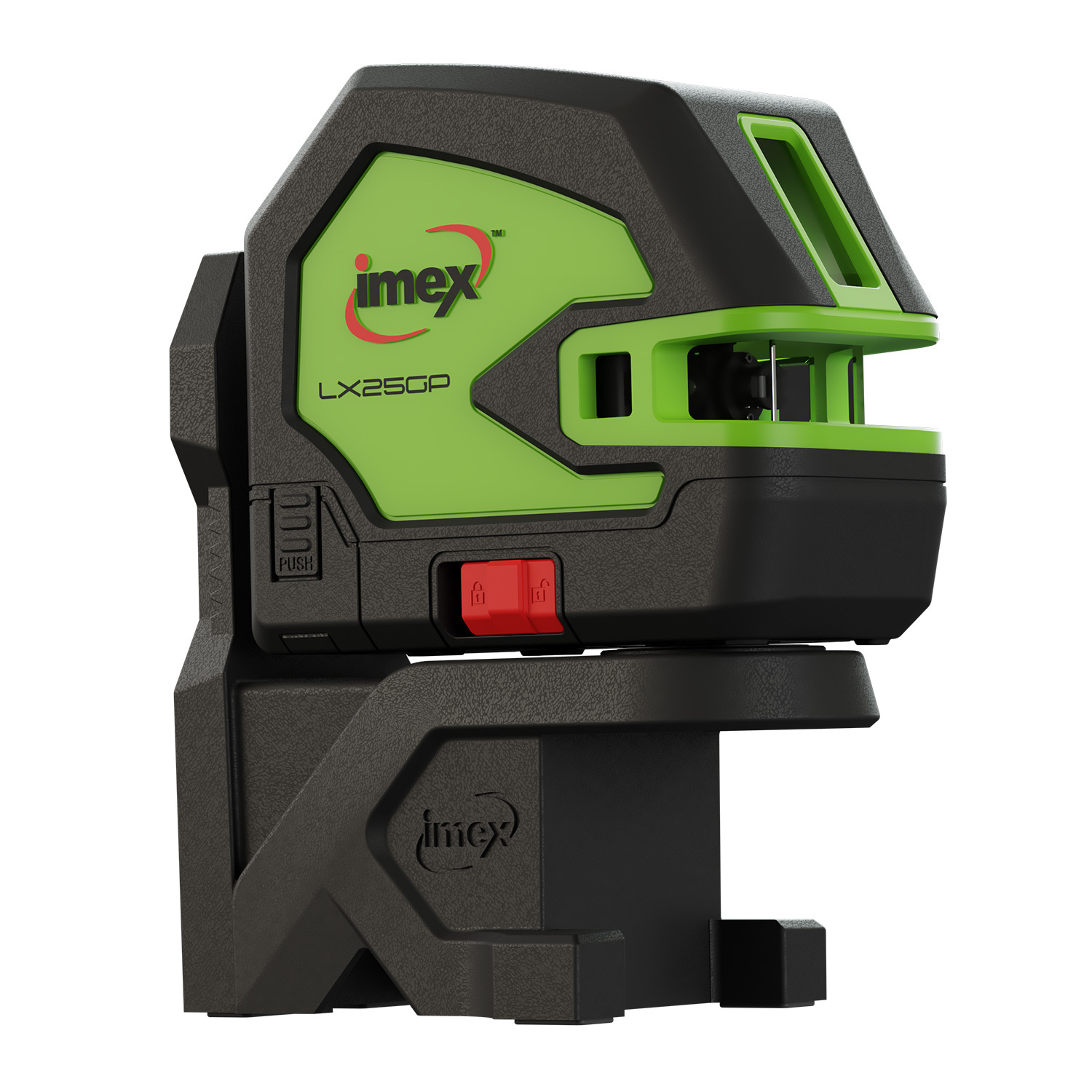

The Series II LX25GP offers the same leading Imex laser-edge technology with high visibility green dots and lines. Now with all-new, sturdy quick release magnetic bracket to secure the laser level without screws! And, with the new 5.2Ah lithium battery platform standard across the Series II range, you get long run times to keep up with your busy work day. The LX25GP features horizontal and vertical laser lines, plumb up and down and two 180-degree horizontal dots to perfectly align doors, windows and more.

Features:
  • Quick release magnetic bracket - no screws to hold laser in place
  • 5.2Ah lithium battery pack - swaps to all LX series II models.
  • Rugged housing with non-slip rubberised moulding
  • High visibility green beam
  • Plumb up, plumb down and 2 horizontal dots
  • 1 horizontal, 1 vertical line
  • Pulse mode for detector
  • Self levelling
Specifications:
Self levelling range4° ± 1
Out of level indication laser blinks on/off
Laser lines 1 vertical, 1 horizontal line
Laser Dots Plumb up/down, 3 @ 90° horizontal
Laser accuracy ±3 mm @10 m
Laser classClass 2
Laser wavelength 520 ± 10 nm
Laser distance - lines10 m light-dependent
Laser distance - dots50 m light-dependent
Laser fan angle - lines H 180° V 130°
Power source 5.2 Ah lithium-ion
Run time - all beams and dots 6 hrs
Control switch 1 button, pendulum lock
IP RatingIP54
Operating temperature -10° to +50°C
Storage temperature-20° to +70° C

Includes:
LX25GP – Green, Magnetic Bracket Base, Target Plate, Hard Carry Case
SKU 012-LX25GP
Barcode # 9342649001798
Brand Imex
Shipping Weight 2.5000kg
Shipping Width 0.330m
Shipping Height 0.120m
Shipping Length 0.250m
Assembled Length 0.250m
Assembled Height 0.120m
Assembled Width 0.330m
Type tools
Ip Rating IP54
Warranty 3 Year
Accuracy +/- 3mm at 10m
Laser Class 2
Lens Colour Green
