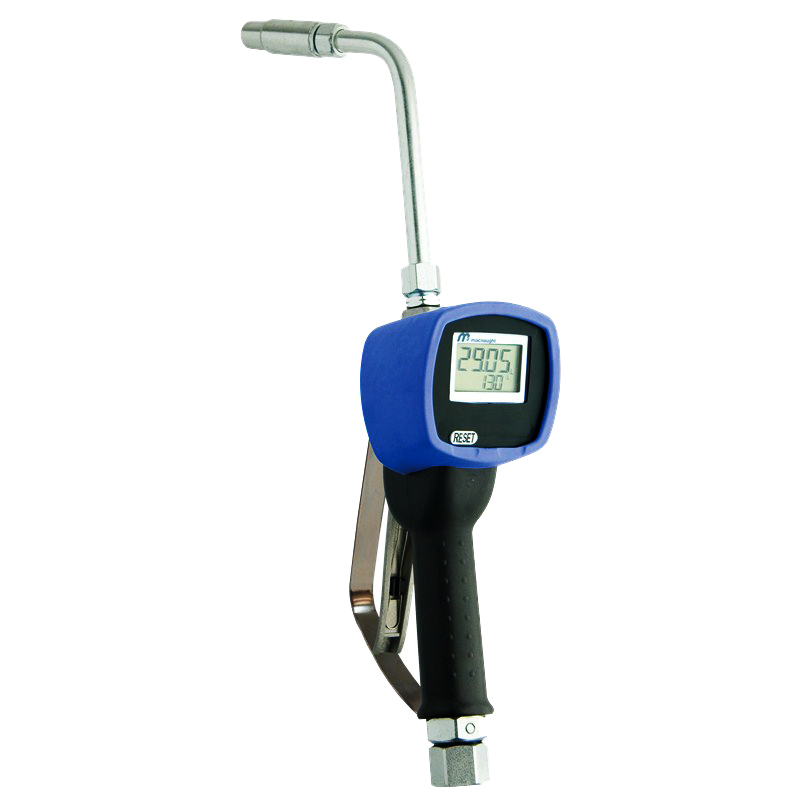

Macnaught Electronic Meter Oil Control Gun HG55

HG55 Electronic Display

Features

• 5-digit resettable batch totaliser (19999)
• 6-digit accumulative totaliser
• sleep mode (2 minutes idle limit) to preserve battery life
• EEPROM retention allows all information to be retained if batteries are removed
• oval gear mechanism for optimum accuracy
• automatic non-drip nozzle
• two outlet nozzle positions (in-line or 90 degrees)
• rigid extension
• latching handle with trigger lock (non latching model available)
• shock resistant
• fully serviceable
• 10 year warranty and parts guarantee

• compatible fluids: lubricating oils up to SAE 140, automatic transmission fluid and anti-freeze/anti-boil
• wetted components: aluminium, acetal, steel, nitrile rubber
• accuracy: ± 0.5% of reading (lubricating oils)
• flow range: 1-30 L/min (0.26 8 US gal/min)
• max. pressure: 10 350 kPa (1 500 psi, 103.5 bar)
• pressure loss: 100 kPa (14.4 psi, 1 bar) @ 12 L/min (3.2 US gal/min) (without nozzle) with calibration fluid.
• weight: 1.16 kg (2.55 lbs)
• swivel inlet: ½ BSP or NPT
• operating temp: 0°C (32°F) to 50°C (122°F)
• storage temp: -10°C (14°F) to 60°C (140° F)
• battery: 2 x 1.5 volt alkaline AA
