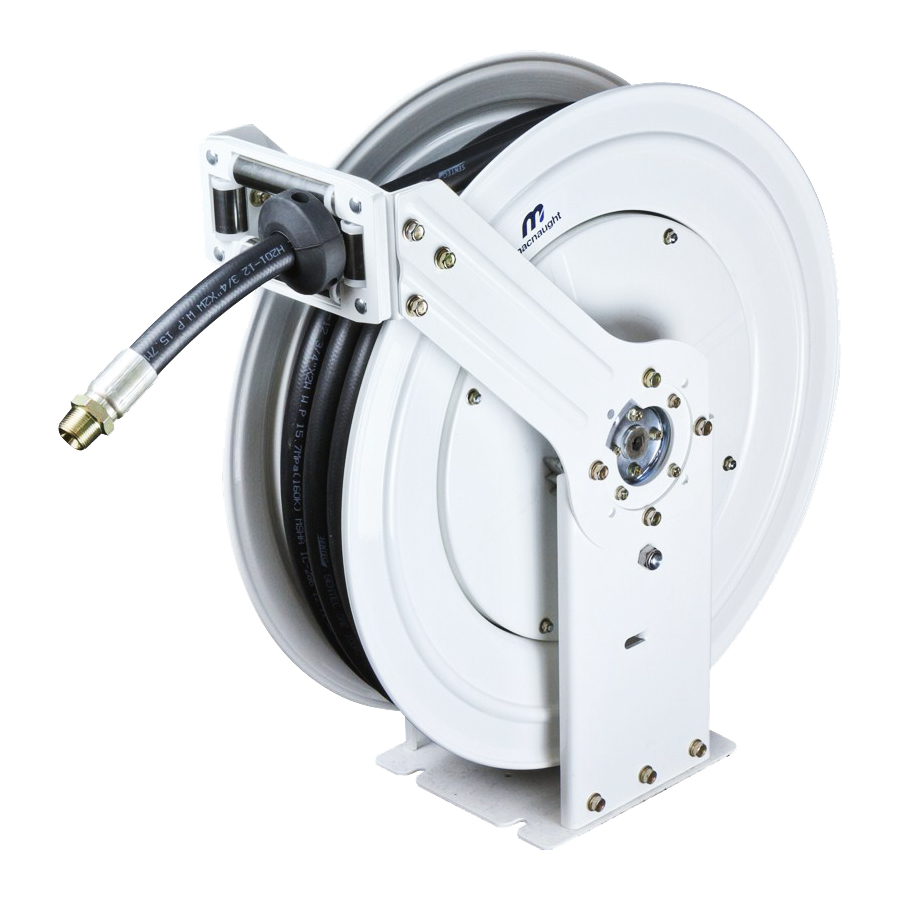

Macnaught Heavy Duty Oil/Water Reel - 3/4" x 15m MAN1915-01

Features:

• Macnaught's all new MAN range of narrow face steel hose reels offers a real step forward in hose reel design.
• Built with Australian conditions in mind these heavy duty powder coated steel hose reels boast sealed bearings, stainless steel shafts*, solid three sector ratchets, Viton O-rings, quality hoses and corrosion resistant fixings.
• A narrow face dimension has been maintained to allow multiple reels to be fitted in tight locations such as the mine site service vehicle.
• Industry common footprints allow for minimum changes to cabinet design.
• Common BSP threads are used at inlet, outlet and hose fittings and the 3/4" x 15m reels are supplied with a 1m feeder hose for convenience.
• Spare parts are available to expedite repair and a simple re-tensioning device allows quarter turn refinements.

Specifications:

• Nominal Size: 1/2"
• Fluid Type: Oil/Water
• Swivel Working Pressure: 2,000psi
• Shaft Material: Stainless Steel
• O 'ring Material: Viton
• Housing Material: Zinc coated
• Hose Working Pressure: 2,000psi
• Hose ID: 1/2"
• Hose Length: 15m
• Reel Inlet: 1/2" BSPF
• Includes 1m feeder hose*: Yes
• Hose Outlet: 1/2" BSP
