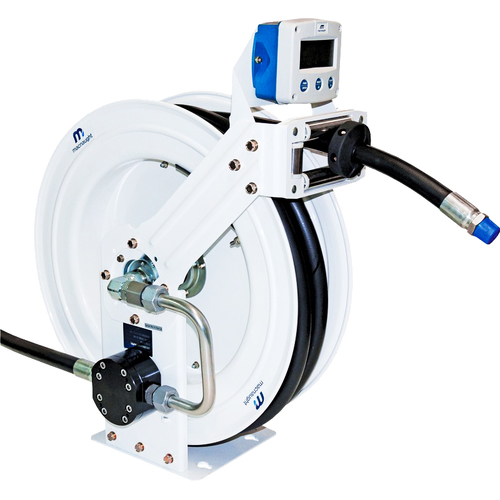

Macnaught Metered Oil Hose Reel 3/4" x 15m MAX1915-01

Features:

• The MAx reel by Macnaught represents the first hose reel developed worldwide with integrated flow meter and flow register.
• The marriage of the brand new Mx range of oval gear flow meter products featuring the revolutionary M-Lock mounting system and the equally new MAN narrow face hose reel products offers unparalleled simplicity for OEMs, installers and users alike.
• With the MAx range of metered hose reels there is no longer any need for separate mounting of meters, intermediate plumbing or vulnerable wiring between meters and registers.
• The reel comes completely fitted and wired to be placed in site - ready to function. The only installation required is bolting the unit down and the connection of the inlet fluids and outlet control.
• Although equally at home in static workshop situations, the MAx range of metered hose reels has been specifically designed to meet the rigors of the mobile lube service vehicle

Specifications:

• Nominal Size: 3/4"
• Fluid Type: Oil
• Swivel Working Pressure: 1,250psi
• Flow Range: 3-80L/min
• Meter accuracy: 0.5%
• Meter Repeatability: 0.03%
• Meter seal material: Viton
• Meter body material: Aluminium
• Shaft Material: Stainless Steel
• O-ring Material: Viton
• Housing Material: Zinc Coated Brass
• Hose Working Pressure: 1,250psi
• Hose ID: 3/4"
• Hose Length: 15m
• Reel Inlet: 3/4" BSP 30 internal chamfer
• Includes 1m feeder hose*: Yes
• Hose Outlet: 3/4" BSP
