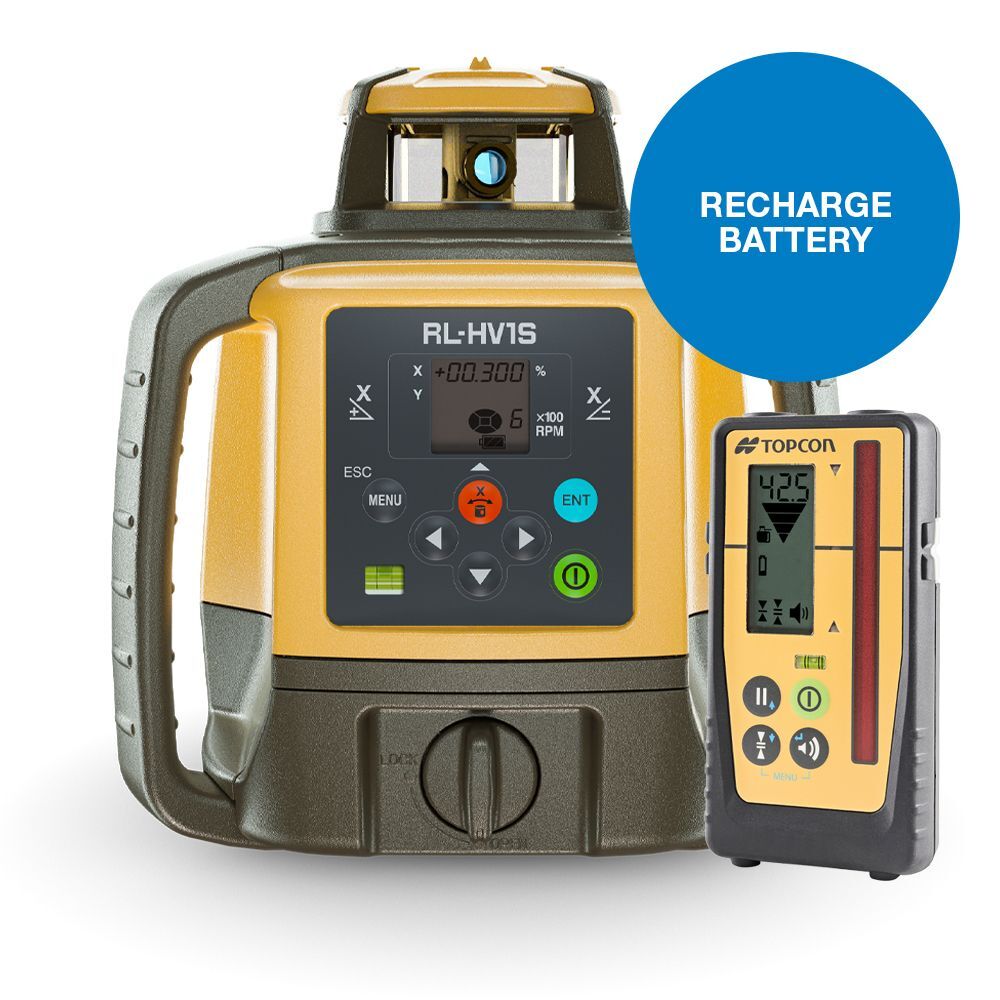

Topcon RL-HV1S Single Grade Rotating Laser (Rechargeable PREMIUM - LS100D Receiver) 1051612-09

Calculate Shipping

The RL-HV1S single-grade laser from Topcon is built for ultimate durability, designed to be rugged and compact, allowing you to get twice the laser & Bluetoooth pairing for a great price.

Designed for a wide variety of applications, it can be used for horizontal, sloping and vertical laser applications. Slopes up to ±15% can be used in the X axis. Turn it on its side and use it for layout and alignment applications.

The RL-HV1S excels in long range operation. Need to shoot elevations up to 400m from your laser? No problem! This instrument has the power and range to cover a 800m (diameter) jobsite. As well as remote pairing and operation from your smart phone (Horizontal operation 100m, Vertical Operation 20m)

Premium HV1S kit includes the Topcon LS-100D Millimeter hand receiver as well as Recharagble battery (up to 65hrs).

The RL-HV2S is "jobsite tough" and with its IP66 rating, the unit can withstand dust, a sudden shower and even torrential rainfall. Topcon stands behind this reliable and accurate laser with a 5 year warranty.

Features:

Working Range 800m
Topcon Bluetooth Laser Manager App
Single Grade ±15%
Accuracy ±1.5mm @ 30m
Dust/Water Rating IP66
LS-100D Premium Receiver (mm)
Rechargeable NIMH Battery
5 Year Warranty

Specifications:
Accuracy H	±10 arc seconds
Self-Leveling Range Horizontal/Vertical	±5°
Grade Single	±15%
Working Area	800m or more (diameter)
Rotation Speed	300, 600 rpm (Selectable)
Topcon Laser Manager App (Bluetooth 5.0)	Range - Horizontal 100m/Vertical 20m
Dust/Water Rating	IP66
Battery Duration	65hrs
Battery Charging	Approx. 13hrs
Operating Temp.	-20°C to 50°C
LS-100D Premium Hand Receiver	±0.5, 1, 2, 5 & 10mm

(1051612-09)

SKU	1051612-09
Barcode #	9345954004270
Brand	Topcon
Shipping Weight	7.0000kg
Shipping Width	0.260m
Shipping Height	0.440m
Shipping Length	0.390m
Type	Tools
