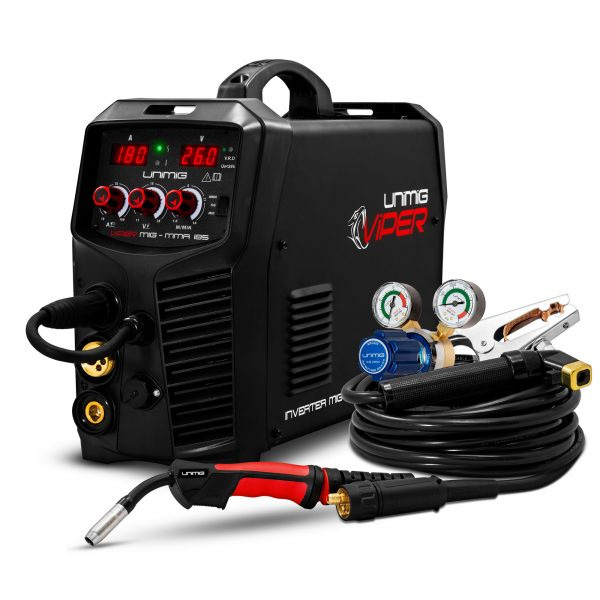

Unimig Viper 185 amp MIG/TIG/STICK Welder KUMJRVM185
SKU: KUMJRVM185
Reasons to use Toolfleet Apply Now
Improve Cashflow
Improve your cash flow by paying off your fleet of tools over 36 months.
Theft Protection
Enjoy peace of mind with theft protection by Toolguard for the duration of your fleet plan.
Member Rewards
Get exclusive discounts on our entire workwear range, including brands like Steel Blue, Bisley and more.
Reasons to use ToolpayApply Now
Improve Cashflow
Improve your cash flow by defering payments for up to 60 days.
Theft Protection
Enjoy peace of mind with one year of theft protection by Toolguard.
Buyer Portal
Users can invite team members, track spending, request credit limit increases and more.
Free Toolguard 6 Month Theft Protection Automatically Included
Covers you for theft of products listed on the policy from
- Locked vehicles or premises
- Equipment securely attached to a vehicle with locks or padlocks
Please note that terms and conditions apply to theft claims, including an excess fee of 10% of the retail value of the product or $150, whichever is lower.
If you ever need to make a claim, our team is on the job to get things sorted and have you back in business fast.
Click here to see more
Features:
- The VIPER 185 is a powerful multi-process inverter welding machine featuring MIG, TIG and Stick (MMA) capabilities.
- It is also Spool Gun Ready, and includes a geared wire drive ensuring smooth wire feeding in all situations.
- The VIPER 185 comes standard with a 10 AMP domestic plug, making it the ultimate welding machine for the home workshop and DIY use.
- Both Gas Shielded and Gasless wires are supported, providing MIG welding capabilities across a range of metals including Mild Steels, Stainless Steels and Aluminium.
- Also included are stepless voltage and amperage controls, wire inch and burn back adjustment for easy set up and control of your welds.
- For additional flexibility, connecting a PLSP150A Spool Gun provides the ability to use thinner/softer wires such as aluminium.
- Lift Arc DC TIG welding is supported on the VIPER 185, through the connection of 17V TIG torch for Mild Steel, Stainless Steel and Copper welding.
- Stick welding (MMA) is also supported with the capability to run electrodes up to 4.0 mm, perfect for jobs where access to a gas cylinder is unavailable.
Specifications: | |
---|---|
Primary Input | 240V 1 Phase |
Rated Input Power | 7.1 KVA |
ieff | 9.8 Amps MIG |
Rated Output | 30A/15.5V - 180A/23.0V |
Welding Current Range MIG | 30 - 180 Amps |
No Load Voltage | 62 |
Duty Cycle 40 Deg C - MIG | 10% @ 180 Amps |
Duty Cycle 40 Deg C - TIG | 10% @ 160 Amps |
Duty Cycle 40 Deg C - STICK (MMA) | 10% @ 160 Amps |
Protection Class | IP21S |
Insulation Class | F |
Dimensions | 553 x 214 x 388 mm |
Weight | 12.0 kgs |
Includes:
SKU | KUMJRVM185 |
Barcode # | 9339793014255 |
Brand | UNIMIG |
Shipping Weight | 12.0000kg |
Shipping Width | 0.214m |
Shipping Height | 0.388m |
Shipping Length | 0.553m |
Assembled Length | 0.553m |
Assembled Height | 0.388m |
Assembled Width | 0.214m |
Type | tools |
Warranty | 2 Year |
