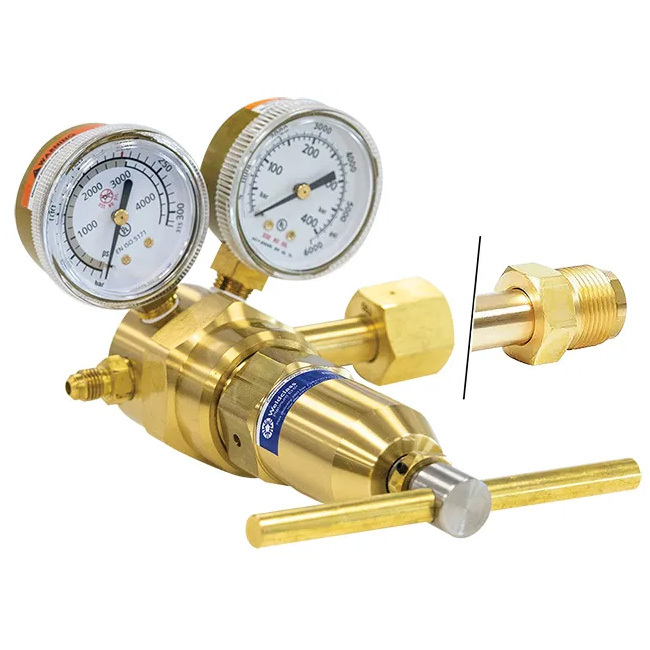

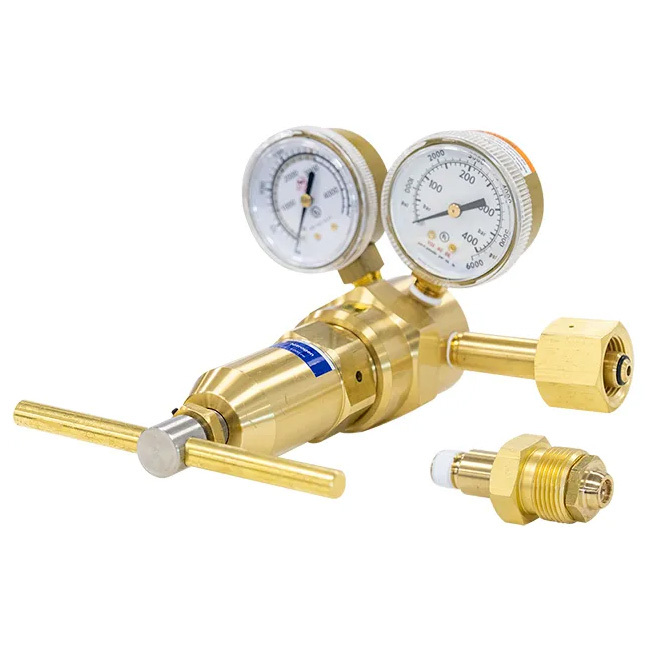

Weldclass Nitrogen 28,000kpa Regulator WC-03400
More infoExtra-high pressure (EHP) Nitrogen regulator for applications requiring delivery pressures of up to 28,000 Kpa (4,000 psi / 280 Bar). Robust design to withstand the rigours of site work. Fitted with Type 50 (female) inlet for connection to standard nitrogen cylinders and supplied with additional Type 51 inlet for connection to EHP (extra high pressure) cylinders if required. PLATINUM series, no quality short-cuts. Designed and manufactured by a team with over 40 years experience in gas equipment engineering.
Features:
- Heavy-duty Platinum series
- Piston-sensing for smooth & reliable pressure adjustment
- Outlet: 1/4 Flare (JIC 37° Flare Fitting) with thread size / O.D. 7/16-20 (= approx 11.1mm)*
*Note: Australian Standards does not permit use of 5/8" UNF outlet on regulators exceeding 2,000 kpa output - Inlet - Fitted to regulator: Type 50 (W24x2 14 TPI RH Female nut)
- Inlet - Supplied with regulator as an additional part: Type 51 (1.045" NGO 14 TPI RH Male nut with spigot), can be used if regulator will be fitted to EHP (extra high pressure) cylinders
- Port (inlet & outlet port hole in regulator body): 1/4" NPT (tapered)
Specifications: | |
|---|---|
| Max Delivery | 28,000 KPa / 280 bar / 4,000 psi |
| Max Inlet (cylinder pressure) | 40 Mpa / 40,000 Kpa / 400 bar / 5,800 psi |
(WC-03400)
| SKU | WC-03400 |
| Brand | Weldclass |
| Shipping Weight | 1.2000kg |
| Type | tools |
