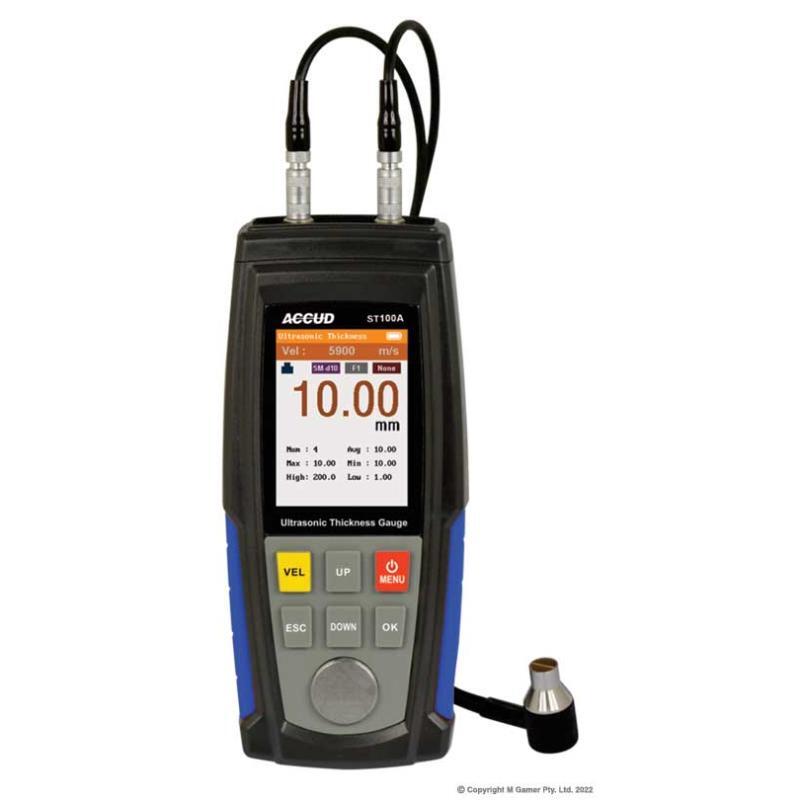

Accud Ultrasonic Thickness Gauge AC-ST100A
More infoFeatures:
- Measures the thickness of tank, pipe and large workpieces
- Interactive LCD with backlight
- Included: Main Unit x 1, Transducer x 1, Battery x 1 set, Couplant x 1 bottle, Brush x 1
Specifications: | |
|---|---|
| Measuring Range | 1.2-225 mm (steel) |
| Graduation | 0.01 mm (<10 0mm), 0.1mm (>=100 mm) |
| Repeatability | 0.05 mm (<100 mm), 0.1 mm (>=100 mm) |
| Accuracy | ±0.5%L+0.04 mm (L is the thickness in mm) |
| Velocity | 1000-9999 m/s |
| Min diameter of measuring tube | Ø20x3 mm |
| Dimension | 64 x 116 x 27 mm |
| Weight | 220 g |
(AC-ST100A)
| SKU | AC-ST100A |
| Barcode # | 9346967103004 |
| Brand | Accud |
| Type | Tools |
