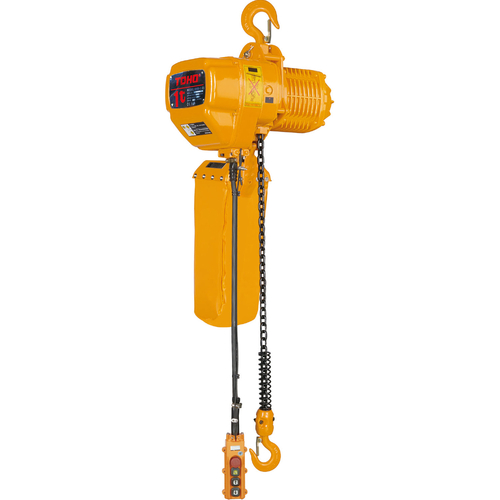

TOHO 1Ton 6m 3-Phase Electric Chain Hoist TECH-3PH-2SP-0106
More infoFeatures:
- Japanese Technology
- Load limited
- Thermal overload prevention
- Lightweight, compact design with high efficiency motor
- Pressed steel structure, high strength body
- High tensile alloy steel top & bottom hooks
- Grade 80 - 7.1 mm Alloy Steel load chain
- Limit switches fitted at top and bottom ends to prevent chain runout
- 415V, 50Hz Dual speed Motor 1200 Watts (3 Phase)
- Hoists can be re-chained to your required length (limits apply)
Specifications: | |
|---|---|
| Capacity | 1 ton |
| Standard Lift | 6 m |
| Running Test Load | 12.5 kN |
| Motor Power | 1.2 kW |
| No of Chains | 2 |
| Diameter of Chain | 7.1 mm |
| Lifting Speed | 1.2/3.5 m/min |
| Weight | 64.9 kg |
| Extra Weight per metre of extra lift | 2.2 kg |
(TECH-3PH-2SP-0106)
| SKU | TECH-3PH-2SP-0106 |
| Barcode # | 9343662004766 |
| Brand | Toho |
| Shipping Weight | 64.9000kg |
| Type | tools |
