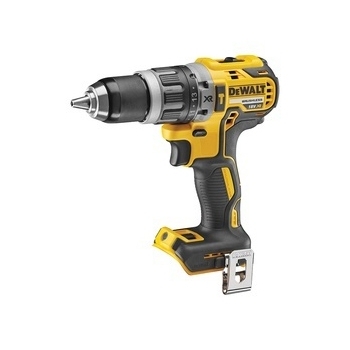

Features:
  • Improved ergonomic design with rubber grip over mould improving users comfort
  • Brushless Motor Technology for excellent efficiency
  • Steel belt hook and magnetic bit holder ensures strong storage solutions
  • Ultra compact, lightweight design allows use in confined spaces
  • Drill Driver and Hammer feature for multiple applications
  • Two speed all metal transmission for increased runtime and longer tool life
  • 15 position adjustable torque control for consistent screw driving into a variety of materials
  • Intelligent trigger design allows for total control of application
  • Part of the intelligent XR Lithium Ion Series designed for efficiency and making applications faster
Specifications:
Chuck Capacity1.5-13 mm
No Load Speed0-550/2000 rpm
Beats per Minute0-9350/34000 bpm
Max Torque70 Nm
Max. Drilling Capacity [Wood]40 mm
Max. Drilling Capacity [Metal]13 mm
Max. Drilling Capacity [Masonry]13 mm
Length173 mm
Height203 mm
Max Torque (Hard)70 Nm
Max Torque (Soft)27 Nm
Sound Pressure89 dB(A)
Sound Pressure Uncertainty3 dB(A)
Sound Power100 dB(A)
Sound Pressure Uncertainty3 dB(A)
Hand/Arm Vibration - Drilling into metal< 2.5 m/s²
Uncertainty K 1 (Vibration)1.5 m/s²
Hand/Arm Vibration - Hammer drilling into concrete11.5 m/s²
Uncertainty K 2 (Vibration)1.6 m/s²
Hand/Arm Vibration - Screw driving without impact< 2.5 m/s²
Uncertainty K 2 (Vibration)1.5 m/s²
Weight1.3 kg
SKU DCD796N-XE
Model # DCD796N-XE
Barcode # 5055945211764
Brand DeWalt
Shipping Weight 2.0000kg
Voltage 18
