DESCRIPTION

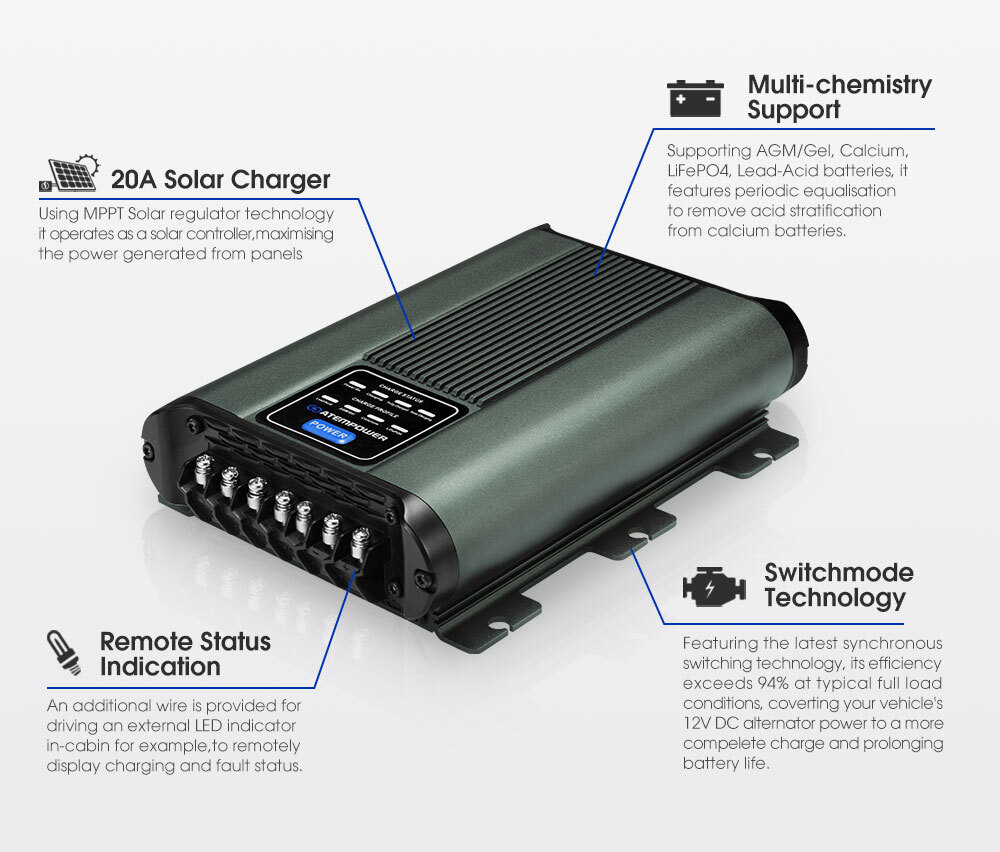

This 12V 20A DC-DC charger by ATEM POWER which is designed to do a full charge cycle with the ability to choose either Lead Acid AGM Gel calcium LiFePO4 batteries and apply the suitable charging profile to prolong their lifespan also incorporates Re-selection Ready mechanism that allows you to re-select the battery during charging by long pressing “POWER”. And it can be connected indefinitely when you’re all set up!This DC-DC charger is also a fully multi input charger that is able to charge from either an alternator to get the best possible rate of flow into your secondary battery and keep it up on the drive or via solar power with the built-in MPPT controller for faster charging! This ATEM POWER battery box is made of sturdy ABS housing and ideal for 4x4s and small boats this battery box which is suitable for batteries with dimensions up to 39.3cm*18.3cm*21.5cm is built to protect your battery from dust shock impact corrosion UV and other chemical solvents

FEATURES
Charger-Multi-Stage Charging: This charger integrates standby pre-charge constant current charging constant voltage charging full charge and re-charge.
Charger-Multiple Protection: It integrates over-charge short circuit over-temperature thermal load solar input overload input/output reverse polarity protection.
Charger-Upgraded Charging Algorithm: This algorithm is designed to select the optimum charge mode and revive your discharged battery.
Charger-User Friendly Design: The LED indicator shows real-time stage of charging and memory function is integrated to make your charging more convenient.
Charger-Please note: always refer to the wiring diagram in this listing for the latest wiring setup of the product as the user manual might be for previous version.
Battery Box-Multiple Outlets: Power is delivered through the 2x USB ports 2x Anderson plugs a 12V charging port and a 12V CIG socket.
Battery Box- LCD Display: The LCD display provides you the exact status of the voltage of your battery so that you can charge it timely.
Battery Box-Super Convenience: The box comes pre-wired so all you need to do is to connect to the battery terminals and it is good to go.

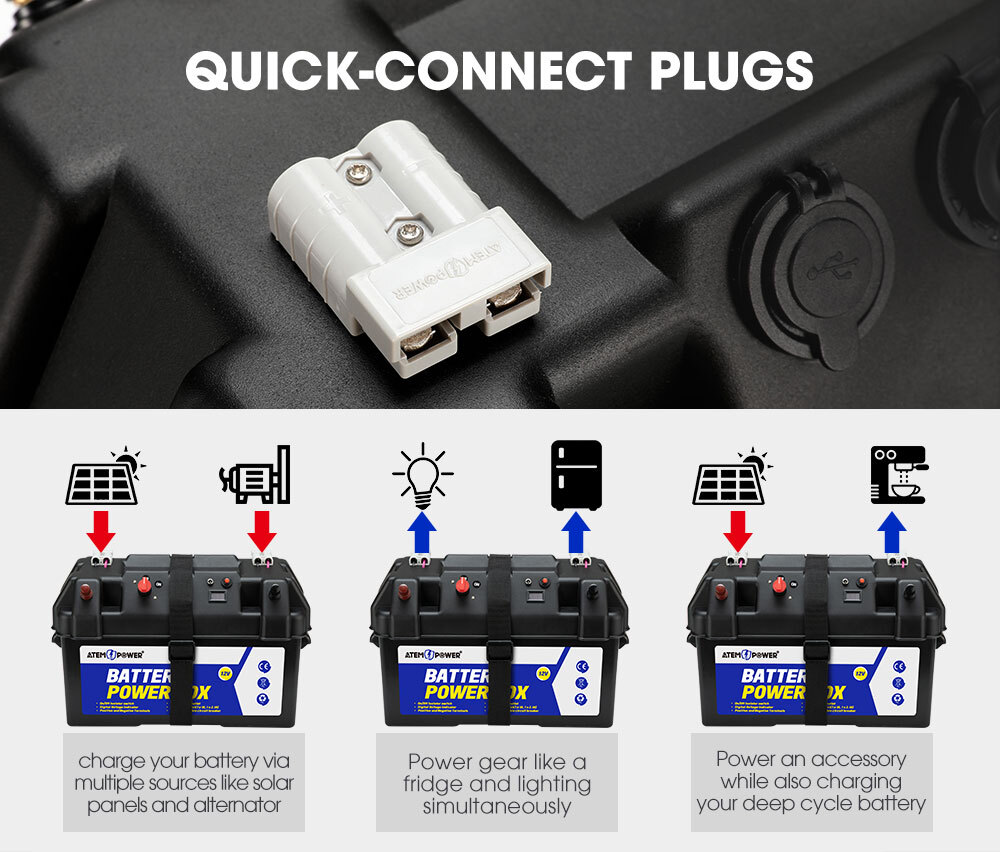

Battery Box-Quick Anderson Plugs: The box itself can be charged using solar panels or any power source with its Anderson plugs.

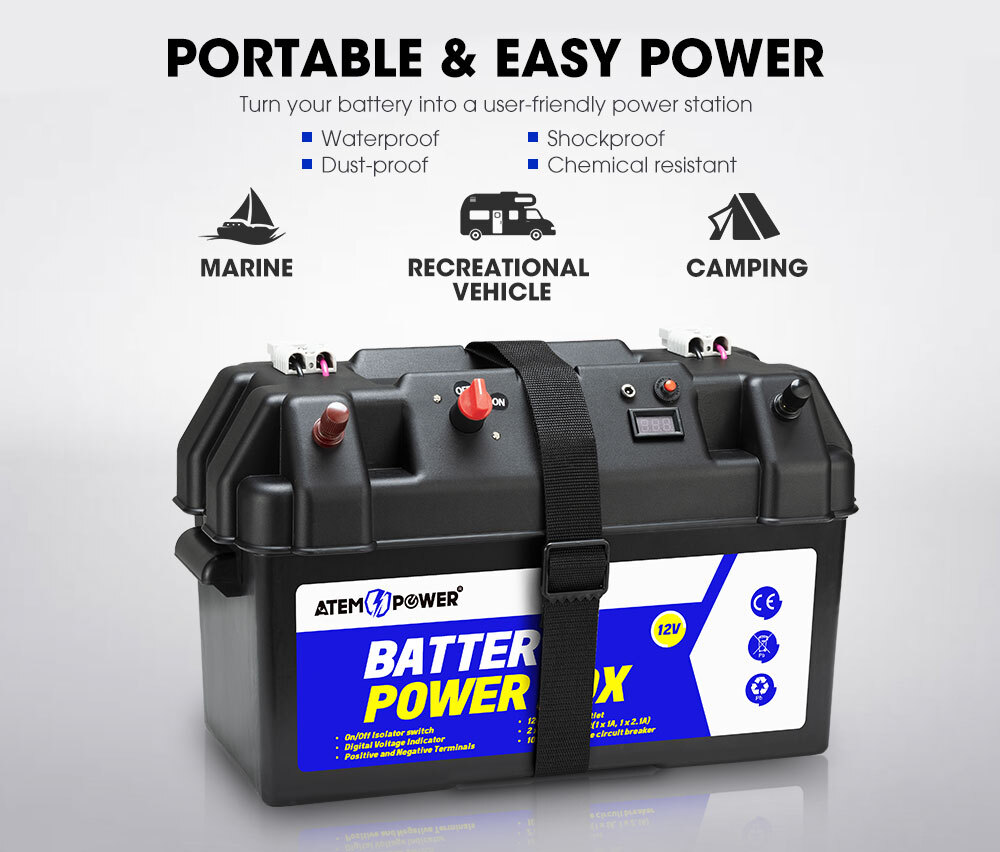

Battery Box-Versatile Functionality: This battery box is ideal for 4x4s small boats solar panels electronic devices and camp lights and fridges.

SPECIFICATIONS
20A DC to DC Charger
Type: Multi Stage
Input: DC Battery: 13.0~16.0Volts Solar Input: 16.0-25.0 Volts
Output/Charging Voltage: 14.4~15.4 Volts(Stops charging when alternator output or vehicle battery below 12.5 volts)
Output Current: DC Output: 20A Solar Output: 20A
Minimum Start Voltage: 2.5 Volts-For battery being charged
Soft Start: Yes
Operational Temperature: -10℃~45℃
Soft Charge Current: DCDS20@20A
Bulk Charge Voltage: 14.7V(AGM/Gel)14.4V(Lead Acid)15.4V(Calcium)14.4V(LiFePO4)
Absorption: Constant voltage with automatic amperage control
Equalisation: Automatic
Float Charge Voltage: 13.5V(AGM/Gel)13.5V(Lead Acid)13.5V(Calcium)
Float Charge Current: 100mA
Battery Range: 60 to 600Ah
0-1 Metres: 12AWG
1-5 Metres: 8 AWG
5 Metres+: 6 AWG
Package Dimensions: 316x240x63mm
Gross Weight: 1.25kg
Battery Box
Colour: Black
Input voltage: 12-24 V DC
Anderson
PACKAGE INCLUDES

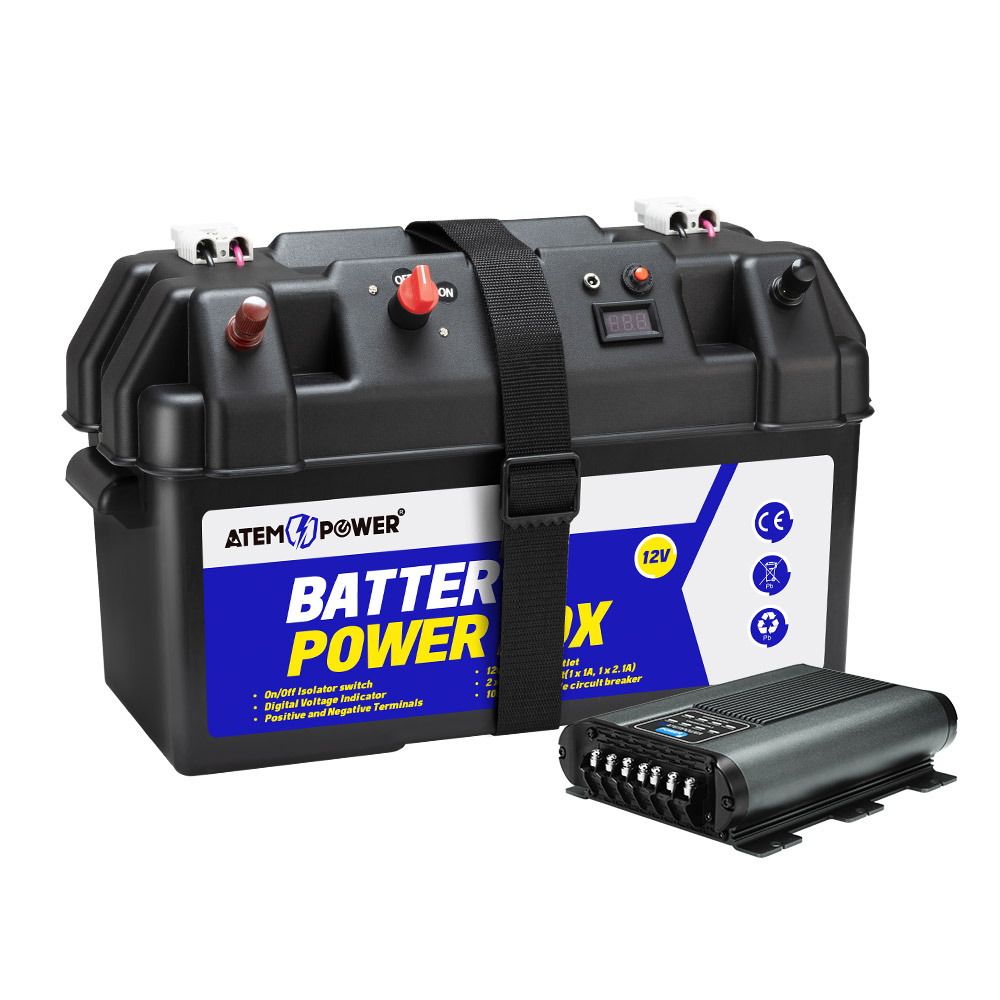

1x ATEM POWER 20A DC-DC Charger
1x ATEM POWER Battery Box
1x Fastening Strap
1x Internal Bracket
Accessories

WARRANTY

1 Year Warranty For Battery Charger
2 Years Warranty For Battery Box

SKU VABG007A.K-VABB004A-SUN
Model # VABG007A.K-VABB004A-SUN
Barcode # 754708187074
Brand Atem Power
Shipping Weight 2.8000kg
Type Automotive Accessories
