Dayco Automatic Belt Tensioner Chevrolet Camaro Corvette Lumina Holden Adventra

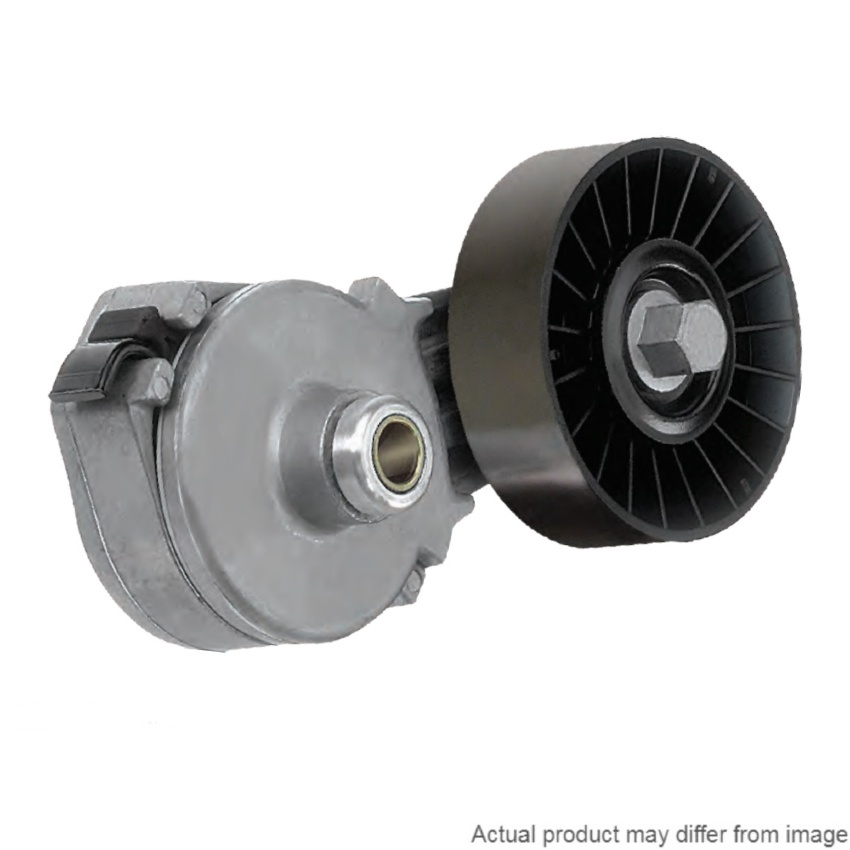

Dayco No Slack Automatic Belt Tensioner

Designed to maintain constant tension on serpentine belt drives
Serpentine belt drives consist of a single belt that powers most, if not all, of the engine’s accessories.

To maintain the proper tension throughout the drive, an automatic, spring-loaded tensioner is incorporated into the drive system geometry.

Dayco’s Automatic Belt Tensioner features a patented “flat spring” design that’s engineered to provide less operating range variations in tension.

This reduces the risk of premature accessory bearing failure due to high tension when a new belt is installed.

It also lessens the risk of belt squeal and slippage, or poor accessory performance caused by low tension after the belt begins to stretch and wear. A Teflon strip wound within the spring resists abrasion.

The flat spring itself is coated to resist rust.

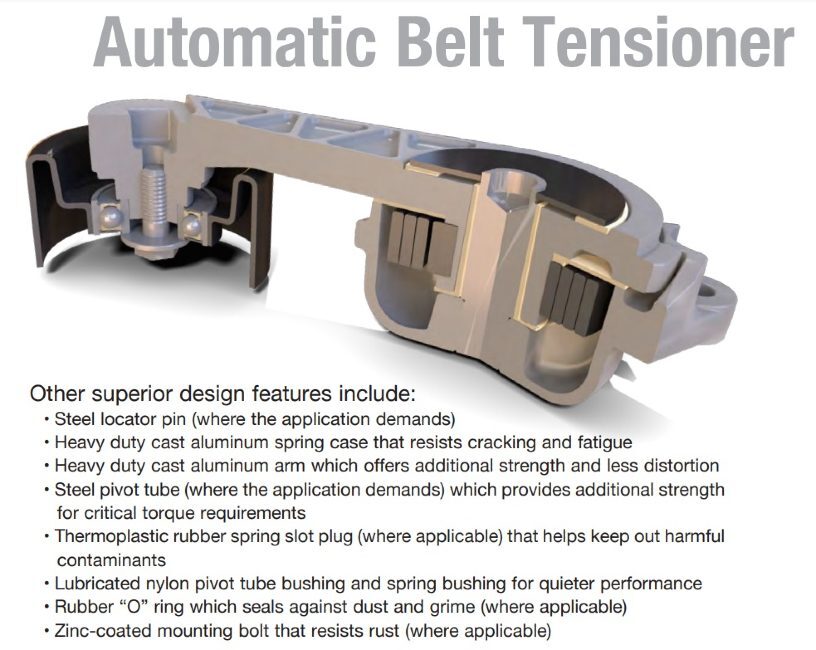

Other superior design features include a steel locator pin (where the application demands).

A heavy-duty cast aluminium spring case resists cracking and fatigue. The heavy-duty cast aluminium arm offers additional strength and less distortion.

An aluminium retainer ring locks the spring case and arm together, and seals against corrosion.

A steel pivot tube (where the application demands) provides additional strength for critical torque requirements.

A thermoplastic rubber “spring slot plug” keeps out harmful contaminants. The lubricated nylon “pivot tube bushing” and “spring bushing” promote quieter performance.

A rubber “O” ring seals against dust and grime.

The zinc coated mounting bolt resists rust, and is concentric for a more even degree of constant tension.

In order to meet OEM performance standards, Dayco Automatic Tensioners come with either a glass-filled polymer (plastic) or steel pulley, that features a dust cover to protect against contaminants.

Fits the following Make, Model, Series:

Chevrolet > Camaro > 1998 - 2002, 5.7L, V8, 16V, OHV, MPFI, 215kW, EngCode: LS1

Chevrolet > Corvette > 1997 - 2004, 5.7L, V8, 16V, OHV, MPFI, C5, EngCode: LS1

Chevrolet > Corvette > Jan 2006 - Dec 7.0L, V8, 16V, OHV, MPFI, C6, 377kW, EngCode: LS7

Chevrolet > Lumina > Aug 2006 - Aug 2010, 6.0L, V8, 16V, OHV, MPFI, VE, EngCode: L98 GEN 4

Holden > Adventra > Oct 2003 - Oct 2004, 5.7L, V8, 16V, OHV, MPFI, VYII, 235kW, EngCode: LS1 GEN III

Holden > Adventra > Nov 2004 - Jan 2006, 5.7L, V8, 16V, OHV, MPFI, VZ, 235kW, EngCode: LS1 GEN III

Holden > Berlina > Jun 1999 - Oct 2000, 5.7L, V8, 16V, OHV, MPFI, VT, 220kW, EngCode: LS1 GEN III

Holden > Berlina > Oct 2000 - Sep 2002, 5.7L, V8, 16V, OHV, MPFI, VX, 225kW, EngCode: LS1 GENIII

Holden > Berlina > Oct 2002 - Jul 2003, 5.7L, V8, 16V, OHV, MPFI, VY, 225kW, EngCode: LS1 GEN III

Holden > Berlina > Aug 2003 - Aug 2004, 5.7L, V8, 16V, OHV, MPFI, VYII, 235kW, EngCode: LS1 GEN III

Holden > Berlina > Aug 2004 - Jan 2007, 5.7L, V8, 16V, OHV, MPFI, VZ, 235kW, EngCode: LS1 GEN III

Holden > Berlina > Aug 2006 - Jan 2010, 6.0L, V8, 16V, OHV, MPFI, VE, 270kW, EngCode: L98

Holden > Calais > Jun 1999 - Oct 2000, 5.7L, V8, 16V, OHV, MPFI, VT, 220KW, EngCode: LS1 GEN III

Holden > Calais > Oct 2000 - Sep 2002, 5.7L, V8, 16V, OHV, MPFI, VX, 225KW, EngCode: LS1 GEN III

Holden > Calais > Oct 2002 - Jul 2003, 5.7L, V8, 16V, OHV, MPFI, VY, 225kW, EngCode: LS1 GEN III

Holden > Calais > Aug 2003 - Aug 2004, 5.7L, V8, 16V, OHV, MPFI, VYII, 235kW, EngCode: LS1 GEN III

Holden > Calais > Aug 2004 - Jan 2006, 5.7L, V8, 16V, OHV, MPFI, VZ, 235kW, EngCode: LS1 GEN III

Holden > Calais > Feb 2006 - Jul 2006, 6.0L, V8, 16V, OHV, MPFI, VZ, 260kW, EngCode: L76

Holden > Calais > Aug 2006 - Oct 2008, 6.0L, V8, 16V, OHV, MPFI, VE, 270kW, EngCode: L98

Holden > Calais > Nov 2008 - Aug 2010, 6.0L, V8, 16V, OHV, MPFI, VE, 260kW, EngCode: L76

Holden > Calais > Sep 2010 - Apr 2013, 6.0L, V8, 16V, OHV, MPFI, VE II, 260kW, EngCode: L77

Holden > Calais > May 2013 - Sep 2015, 6.0L, V8, 16V, OHV, MPFI, VF, 260kW, EngCode: L77

Holden > Calais > Oct 2015 - Oct 2017, 6.2L, V8, 16V, OHV, MPFI, VF, 304kW, EngCode: LS3

Holden > Caprice > Jun 1999 - Apr 2003, 5.7L, V8, 16V, OHV, MPFI, WH, 225kW, EngCode: LS1 GEN III

Holden > Caprice > May 2003 - Jul 2003, 5.7L, V8, 16V, OHV, MPFI, WK, 245kW, EngCode: LS1 GEN III

Holden > Caprice > Aug 2003 - Aug 2004, 5.7L, V8, 16V, OHV, MPFI, WKII, 245kW, EngCode: LS1 GEN III

Holden > Caprice > Aug 2004 - Jan 2006, 5.7L, V8, 16V, OHV, MPFI, WL, 250kW, EngCode: LS1 GEN III

Holden > Caprice > Feb 2006 - Jul 2006, 6.0L, V8, 16V, OHV, MPFI, WL, 260kW, EngCode: L76

Holden > Caprice > Aug 2006 - Oct 2008, 6.0L, V8, 16V, OHV, MPFI, WM , 270kW, EngCode: L98

Holden > Caprice > Nov 2008 - Aug 2010, 6.0L, V8, 16V, OHV, MPFI, WM , 270kW, EngCode: L76

Holden > Caprice > Sep 2010 - Apr 2013, 6.0L, V8, 16V, OHV, MPFI, WM II, 260kW, EngCode: L77

Holden > Caprice > May 2013 - Sep 2015, 6.0L, V8, 16V, OHV, MPFI, WN, 270kW, EngCode: L77

Holden > Caprice > Oct 2015 - Oct 2017, 6.2L, V8, 16V, OHV, MPFI, WN, 304kW, EngCode: LS3

Holden > Commodore > Jun 1999 - Oct 2000, 5.7L, V8, 16V, OHV, MPFI, VT, 220kW, EngCode: LS1 GEN III

Holden > Commodore > Oct 2000 - Sep 2002, 5.7L, V8, 16V, OHV, MPFI, VX, 225kW, EngCode: LS1 GEN III

Holden > Commodore > Dec 2000 - Sep 2002, 5.7L, V8, 16V, OHV, MPFI, VU, 225kW, EngCode: LS1 GEN III

Holden > Commodore > Aug 2002 - Jul 2003, 5.7L, V8, 16V, OHV, MPFI, VY, 245kW, EngCode: LS1 GEN III

Holden > Commodore > Aug 2003 - Aug 2004, 5.7L, V8, 16V, OHV, MPFI, VYII, 245kW, EngCode: LS1 GEN III

Holden > Commodore > Feb 2004 - Jan 2006, 5.7L, V8, 16V, OHV, MPFI, VZ, 235kW, EngCode: LS1 GEN III

Holden > Commodore > Feb 2006 - Aug 2007, 6.0L, V8, 16V, OHV, MPFI, VZ, 260kW, EngCode: L76 GEN 4

Holden > Commodore > Aug 2006 - Aug 2010, 6.0L, V8, 16V, OHV, MPFI, VE, 270kW, EngCode: L98 GEN 4

Holden > Commodore > Sep 2010 - Apr 2013, 6.0L, V8, 16V, OHV, VE, 270kW, EngCode: L77

Holden > Commodore > Oct 2015 - Oct 2017, 6.2L, V8, 16V, OHV, MPFI, VF, 304kW, EngCode: LS3

Holden > Coupe'4 > Aug 2004 - Apr 2006, 5.7L, V8, 16V, OHV, MPFI, VZ, EngCode: GEN III

Holden > Crewman > Sep 2003 - Aug 2004, 5.7L, V8, 16V, OHV, MPFI, VYII, EngCode: GEN III

Holden > Crewman > Aug 2004 - Jan 2006, 5.7L, V8, 16V, OHV, MPFI, VZ, EngCode: GEN III

Holden > Crewman > Aug 2006 - Aug 2007, 6.0L, V8, 16V, OHV, MPFI, VZ MY06, EngCode: GEN 4 L76

Holden > Crewman > Aug 2006 - Sep 2007, 6.0L, V8, 16V, OHV, MPFI, VZ MY06, EngCode: L98

Holden > Monaro (From 2001) > Dec 2001 - Dec 2002, 5.7L, V8, 16V, OHV, MPFI, V2, 225kW, EngCode: LS1 GEN III

Holden > Monaro (From 2001) > Dec 2002 - Jul 2003, 5.7L, V8, 16V, OHV, MPFI, V2, 235kW, EngCode: LS1 GEN III

Holden > Monaro (From 2001) > Aug 2003 - Sep 2004, 5.7L, V8, 16V, OHV, MPFI, V2, 245kW, EngCode: LS1 GEN III

Holden > Monaro (From 2001) > Sep 2004 - Jul 2006, 5.7L, V8, 16V, OHV, MPFI, VZ, 260kW, EngCode: LS1 GEN III

Holden > Statesman (From 1990) > Jun 1999 - Apr 2003, 5.7L, V8, 16V, OHV, MPFI, WH, 220kW, EngCode: LS1 GEN III

Holden > Statesman (From 1990) > May 2003 - Jul 2003, 5.7L, V8, 16V, OHV, MPFI, WK, 235kW, EngCode: LS1 GEN III

Holden > Statesman (From 1990) > Aug 2003 - Aug 2004, 5.7L, V8, 16V, OHV, MPFI, WKII, 235kW, EngCode: LS1 GEN III

Holden > Statesman (From 1990) > Aug 2004 - Jul 2006, 5.7L, V8, 16V, OHV, MPFI, WL, 245kW, EngCode: LS1 GEN III

Holden > Statesman (From 1990) > Feb 2006 - Jul 2006, 6.0L, V8, 16V, OHV, MPFI, WL, 260kW, EngCode: L76

Holden > Statesman (From 1990) > Aug 2006 - Aug 2010, 6.0L, V8, 16V, OHV, MPFI, WM , 270kW, EngCode: L98

HSV > Avalanche > Dec 2003 - Sep 2004, 5.7L, V8, 16V, OHV, MPFI, VY11, VY II, 270kW, EngCode: LS1 GEN III

HSV > Avalanche > Oct 2004 - Apr 2006, 5.7L, V8, 16V, OHV, MPFI, VZ, 270kW, EngCode: LS1 GEN III

HSV > Clubsport > Jul 1999 - Oct 2000, 5.7L, V8, 16V, OHV, MPFI, VTII, 250kW, EngCode: LS1

HSV > Clubsport > Sep 2000 - Oct 2002, 5.7L, V8, 16V, OHV, MPFI, VX, 255kW, EngCode: LS1

HSV > Clubsport > Oct 2002 - Jul 2003, 5.7L, V8, 16V, OHV, MPFI, VY, EngCode: LS1

HSV > Clubsport > Aug 2003 - Sep 2004, 5.7L, V8, 16V, OHV, MPFI, VYII, EngCode: LS1

HSV > Clubsport > Oct 2004 - Jul 2006, 6.0L, V8, 16V, OHV, MPFI, VZ, EngCode: LS2

HSV > Clubsport > Aug 2006 - Mar 2008, 6.0L, V8, 16V, OHV, MPFI, VE, EngCode: LS2

HSV > Clubsport > Apr 2008 - May 2013, 6.2L, V8, 16V, OHV, MPFI, VE, 317kW, EngCode: LS3

HSV > Clubsport > Sep 2010 - May 2013, 6.2L, V8, 16V, OHV, MPFI, VE LPG, 317kW, EngCode: LS3

HSV > Clubsport > Jun 2013 - Oct 2017, 6.2L, V8, 16V, OHV, MPFI, VF, 317kW, EngCode: LS3

HSV > Clubsport > Oct 2014 - Oct 2017, 6.2L, V8, 16V, OHV, MPFI, VF, 325kW, EngCode: LS3

HSV > Clubsport > Nov 2015 - Oct 2017, 6.2L, V8, 16V, OHV, MPFI, VF, 400kW, EngCode: LSA, Supercharged

HSV > Clubsport > Jun 2016 - Oct 2017, 6.2L, V8, 16V, OHV, MPFI, VF, 340kW, EngCode: LS3

HSV > Coupe 4 > Jul 2004 - Apr 2006, 5.7L, V8, 16V, OHV, MPFI, V2, EngCode: LS1

HSV > Coupe GTO > Sep 2003 - Jul 2004, 5.7L, V8, 16V, OHV, MPFI, V3, EngCode: LS1

HSV > Coupe GTO > Apr 2006 - Jun 2006, 6.0L, V8, 16V, OHV, MPFI, VZ, EngCode: LS2

HSV > Coupe GTS > Dec 2001 - Jul 2003, 5.7L, V8, 16V, OHV, MPFI, V2, EngCode: LS1

HSV > Coupe GTS > Aug 2003 - Sep 2004, 5.7L, V8, 16V, OHV, MPFI, V2, EngCode: LS1

HSV > Coupe Signature > Jul 2006 - Nov 2007, 6.0L, V8, 16V, OHV, MPFI, VZ, EngCode: LS2

HSV > Grange > Jul 1999 - Jul 2003, 5.7L, V8, 16V, OHV, MPFI, WH, EngCode: LS1

HSV > Grange > Aug 2003 - Sep 2003, 5.7L, V8, 16V, OHV, MPFI, WH, EngCode: LS1

HSV > Grange > Oct 2003 - Sep 2004, 5.7L, V8, 16V, OHV, MPFI, WK, EngCode: LS1

HSV > Grange > Sep 2004 - Jul 2006, 6.0L, V8, 16V, OHV, MPFI, WL, EngCode: LS2

HSV > Grange > Mar 2007 - Mar 2008, 6.0L, V8, 16V, OHV, MPFI, WM , EngCode: LS2

HSV > Grange > Apr 2008 - May 2013, 6.2L, V8, 16V, OHV, MPFI, WM , 325kW, EngCode: LS3

HSV > Grange > Jun 2013 - Feb 2017, 6.2L, V8, 16V, OHV, MPFI, WN, 325kW, EngCode: LS3

HSV > GTS > Apr 2000 - Sep 2000, 5.7L, V8, 16V, OHV, MPFI, VTII, 300kW, EngCode: LS1 GEN III

HSV > GTS > Sep 2000 - Aug 2001, 5.7L, V8, 16V, OHV, MPFI, VX, 300kW, EngCode: LS1 GEN III

HSV > GTS > Oct 2002 - Jul 2003, 5.7L, V8, 16V, OHV, MPFI, VY, 300kW, EngCode: LS1 GEN III

HSV > GTS > Aug 2003 - Sep 2004, 5.7L, V8, 16V, OHV, MPFI, VY, 300kW, EngCode: LS1 GEN III

HSV > GTS > Aug 2006 - Mar 2008, 6.0L, V8, 16V, OHV, MPFI, VE, 307kW, EngCode: LS2

HSV > GTS > Apr 2008 - Aug 2009, 6.2L, V8, 16V, OHV, MPFI, VE, 317KW, EngCode: LS3

HSV > GTS > Sep 2009 - May 2013, 6.2L, V8, 16V, OHV, MPFI, VE, 325KW, EngCode: LS3

HSV > GTS > Sep 2010 - May 2013, 6.2L, V8, 16V, OHV, MPFI LPG, VE, 325KW, EngCode: LS3

HSV > GTS > Jun 2013 - Oct 2017, 6.2L, V8, 16V, OHV, MPFI, VF, 430KW, EngCode: LSA, Supercharged

HSV > Maloo > Mar 2001 - Sep 2002, 5.7L, V8, 16V, OHV, MPFI, VU, 225kW, EngCode: LS1 GEN III

HSV > Maloo > Oct 2002 - Jul 2003, 5.7L, V8, 16V, OHV, MPFI, VY, 260kW, EngCode: LS1 GEN III

HSV > Maloo > Aug 2003 - Sep 2004, 5.7L, V8, 16V, OHV, MPFI, VYII, 285kW, EngCode: LS1 GEN III

HSV > Maloo > Oct 2004 - Sep 2007, 6.0L, V8, 16V, OHV, MPFI, VZ, 297kW, EngCode: LS2

HSV > Maloo > Oct 2007 - Mar 2008, 6.0L, V8, 16V, OHV, MPFI, VE, 307kW, EngCode: LS2

HSV > Maloo > Apr 2008 - May 2013, 6.2L, V8, 16V, OHV, MPFI, VE, 317kW, EngCode: LS3

HSV > Maloo > Sep 2010 - May 2013, 6.2L, V8, 16V, OHV, MPFI LPG, VE, 317kW, EngCode: LS3

HSV > Maloo > Jun 2013 - Oct 2015, 6.2L, V8, 16V, OHV, MPFI LPG, VF R8, 325kW, EngCode: LS3

HSV > Maloo > Nov 2015 - Oct 2017, 6.2L, V8, 16V, OHV, MPFI, VF R8, 400kW, EngCode: LSA, Supercharged

HSV > Senator > Jul 1999 - Oct 2000, 5.7L, V8, 16V, OHV, MPFI, VT, 250kW, EngCode: LS1 GEN III

HSV > Senator > Sep 2000 - Sep 2002, 5.7L, V8, 16V, OHV, MPFI, VX, 255kW, EngCode: LS1 GEN III

HSV > Senator > Oct 2002 - Jul 2003, 5.7L, V8, 16V, OHV, MPFI, VY, 260kW, EngCode: LS1 GEN III

HSV > Senator > Aug 2003 - Sep 2004, 5.7L, V8, 16V, OHV, MPFI, VYII, 285kW, EngCode: LS1 GEN III

HSV > Senator > Oct 2004 - Jul 2006, 6.0L, V8, 16V, OHV, MPFI, VZ, 297kW, EngCode: LS2

HSV > Senator > Aug 2007 - Mar 2008, 6.0L, V8, 16V, OHV, MPFI, VE, 307kW, EngCode: LS2

HSV > Senator > Apr 2008 - May 2013, 6.2L, V8, 16V, OHV, MPFI, VE, 317kW, EngCode: LS3

HSV > Senator > Jun 2013 - Oct 2015, 6.2L, V8, 16V, OHV, MPFI, VF, 340kW, EngCode: LS3

HSV > Senator > Nov 2015 - Oct 2017, 6.2L, V8, 16V, OHV, MPFI, VF, 400kW, EngCode: LSA, Supercharged

HSV > SV > Jul 1999 - Apr 2000, 5.7L, V8, 16V, OHV, MPFI, VT SV99, 250kW, EngCode: LS1 GEN III

HSV > SV > Sep 2001 - Dec 2001, 5.7L, V8, 16V, OHV, MPFI, VX SV300, 300kW, EngCode: LS1 GEN III

HSV > SV > Aug 2005 - Apr 2006, 6.0L, V8, 16V, OHV, MPFI, VZ, 297kW, EngCode: LS2 GEN 4

SKU	89339
Model #	89339
Barcode #	036687435606
Brand	Dayco
Type	Auto Part
