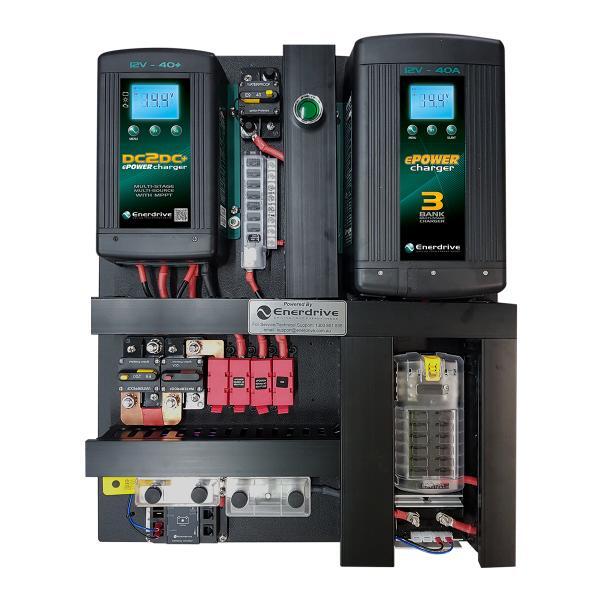

ENERDRIVE 40A AC AND DC DIY INSTALLATION KIT, WITH EPRO PLUS BATTERY MONITOR (K-AGM-BOARD-E)

*Please Note this item is Built to Order - Build time is approximately 21 days*

Introducing Enerdrives DIY Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more. Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.

These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.

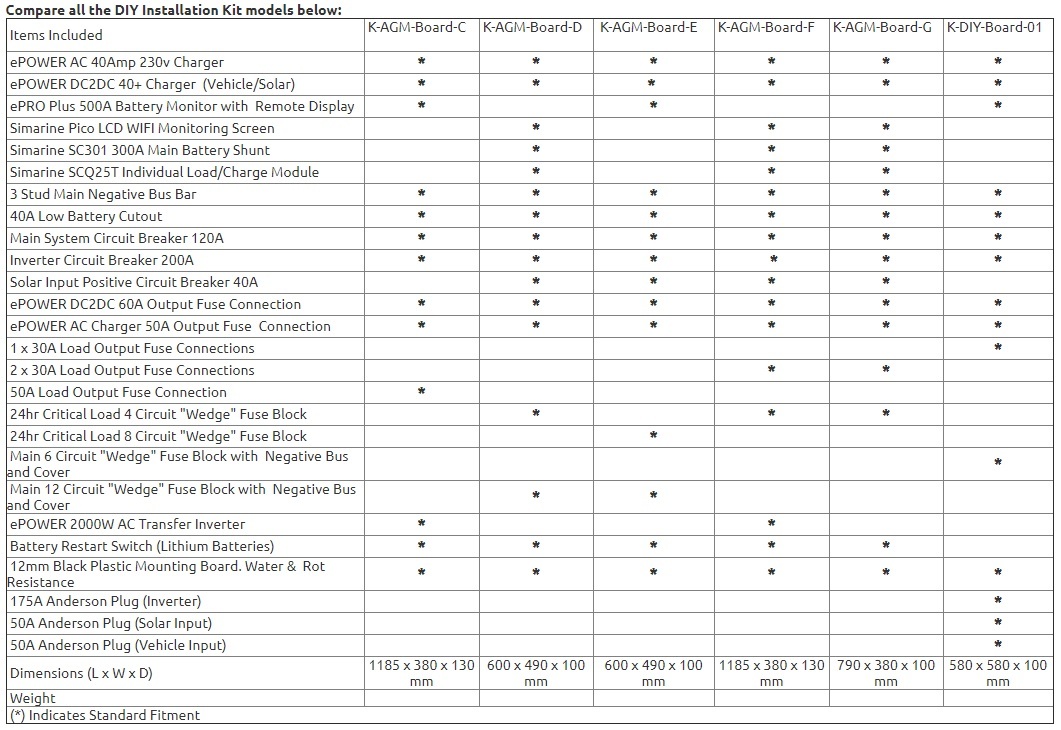

Includes:

Enerdrive ePOWER 12V 40A DC to DC Battery Charger EN3DC40+
Enerdrive ePOWER 12V 40A Battery Charger EN31240
Enerdrive ePRO PLUS Battery Monitor EN55050
3 Stud Main Negative Bus Bar
40A Low Battery Cutout
Main System Circuit Breaker 120A
Inverter Circuit Breaker 200A
Solar Input Positive Circuit Breaker 40A
ePOWER DC2DC 60A Output Fuse Connection
ePOWER AC Charger 50A Output Fuse Connection
24hr Critical Load 8 Circuit "Wedge" Fuse Block
Main 12 Circuit "Wedge" Fuse Block with Negative Bus and Cover
Battery Restart Switch (Lithium Batteries)
12mm Black Plastic Mounting Board. Water & Rot Resistance

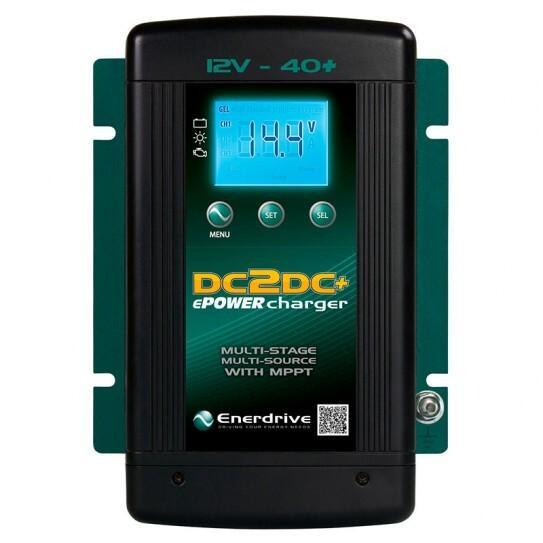

Enerdrive ePOWER 12V 40A DC to DC Battery Charger:

The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller.

Features:

Independent DC Inputs for both engine and solar regulation charging one house battery bank output
DC M6 screw terminals
A dedicated Maximum Power Point (MPPT) solar regulator
The same battery algorithms as included in our AC mains ePOWER battery charger including a specific lithium charging profile
40A output up to 40+°C with thermo controlled fan cooling
Fully programmable LCD display
Temperature sensor

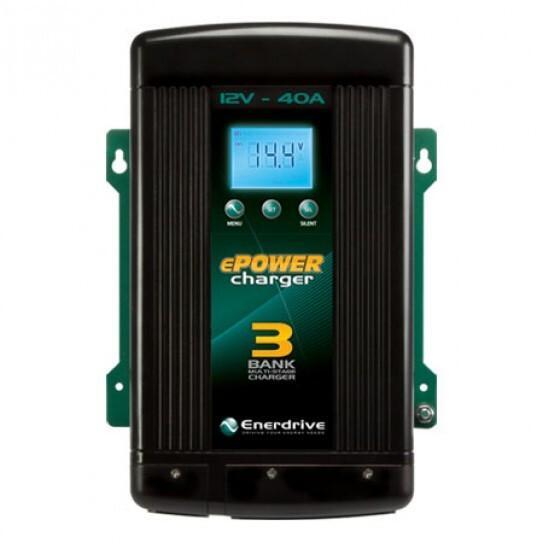

Enerdrive ePOWER 12V 40A Battery Charger:

The Enerdrive ePOWER 40A Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.

As dictated by battery manufacturer’s recommendations, batteries require a multistage charge sequence for perfect, fast and accurate charging.

The Enerdrive ePOWER charger can be programmed for Lithium batteries. This setting delivers the full rated output of the charger constantly with the charger switching to power supply mode once the voltage peak is met (indicating a full battery bank).

Features:

Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.
Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).
Smart Charging: The ePOWER 40A battery charger will regulate its output based on the loads connected to your battery banks.
Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.
LED Display: Easy to use “set and select” menu along with scrolling charger status.
Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.
Temperature Sensor: Battery temperature sensor included with 3 meter cable.
2 Year Manufacturer Warranty from an Australian company renowned for customer support.

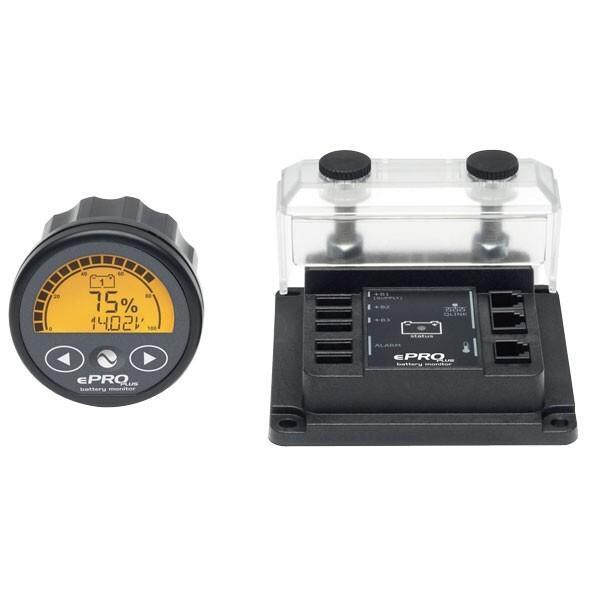

Enerdrive ePRO PLUS Battery Monitor:

The ePRO PLUS is the latest generation, highly advanced battery monitor. It consists of an intelligent shunt and a remote control display unit. The shunt has a Grid Optimized footprint for perfect integration with our DC Modular products. This advanced battery monitor not only shows the true state of charge of your battery system. It also offers a large amount of additional features to optimally supervise your battery system and control external equipment. The ePRO PLUS is compatible with lead based and Lithium batteries (LiFePO4).

The ePRO PLUS can monitor up to three battery banks. The inputs for battery bank 2 and 3 can also be configured for other purposes, like mid-point voltage measurement, keyswitch input, setup lock or backlight control. The ePRO PLUS battery monitor can measure DC currents up to 600Amps (500Amp continuous) and voltages up to 70Vdc. So any lead- or lithium based battery from 12V up to 48V can be monitored. The installation time is minimal, requiring only one supply wire to the intelligent shunt base and a single ‘QuickLink’ cable between the shunt base and the control/display unit (CDU). Additionally, the battery minus cable must be interrupted in order to insert the shunt into the high current circuit. The fused supply wire and the QuickLink cable are both included in the package, avoiding the need for a separate connection kit.

Features:

Complete battery status information at a glance
Supports up to three battery banks (12V, 24V and 48V)
‘Plug and Play’ installation
Perfect integration with Enerdrive DC Modular products

Specifications:

Model: EN3DC40+ (DC Battery Charger) | EN31240 (AC Battery Charger) | EN55050 (Battery Monitor)
Charger Mode Output Voltage: 13.8V - 15.5V (DC Battery Charger) | 14.2 – 15.5 V (AC Battery Charger)
Float: 13.0V - 13.8V (DC Battery Charger) | 13.4 – 13.8 V (AC Battery Charger)
Equalize: 15.5V (DC Battery Charger) | 16.0 V (AC Battery Charger)
Amps: 40A (DC & AC Battery Charger)
Charging Control: Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program setting), Priority Battery Bank Charging (AC Battery Charger)
DC Output: Single (DC Battery Charger) | Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger)
Selectable Battery Type: Gel, AGM, Flooded, Lithium, Program (DC and AC Battery Charger)
Standby Current: < 2 mA (AC Battery Charger)
AC Input Voltage: 90 to 265 VAC (AC Battery Charger)
AC Input Operating Range: 207-265 Vac (3.8 A Max) 90 – 125 Vac (7.7 A Max) (AC Battery Charger)
AC Input Frequency Range: 47 – 63 Hz (AC Battery Charger)
Power consumption (DC 12V): 700W (Full Load) (AC Battery Charger)
Power Factor Correction: Yes (AC Battery Charger)
Charger Efficiency: 95% (DC Battery Charger) | > 82% (AC Battery Charger)
Reverse Polarity: Yes, (with user replaceable fuse/s) (AC Battery Charger)
Over Charge: Yes, unit shutdown (AC Battery Charger)
Over Temperature Protection: Yes, unit de-rated and shutdown (AC Battery Charger)
Cooling: Forced air ventilation (thermo controlled fan) (AC Battery Charger)
Output Short Circuit: Yes, (with user replaceable fuse/s) (AC Battery Charger)
Temperature Setting: Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger) | Hot, Normal, Cold (no sensor connected) (AC Battery Charger)
Battery Temp Sensor Port: RJ12 (standard battery temp. sensor supplied) (AC Battery Charger)
LCD Display: Charging status, Battery Voltage, Output Current & Fault Codes (AC Battery Charger)
AC Input Connection: IEC with Supplied 1.2M Power Lead (AC Battery Charger)
DC Output Connection: Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC Battery Charger)
DC Output Ground: Single Heavy Duty Common Ground Stud (AC Battery Charger)
Storage Range (temp): -40° to 70° C (AC Battery Charger)
Operating Range (temp): -20° to 60° C (AC Battery Charger)
Humidity: 5-95%, relative humidity non-condensing (AC Battery Charger)
Ingress Protection: IP32 (Basic drip proof in vertical orientation) (AC Battery Charger)
Regulatory Compliance: Complies with AS/NZS 60335.2.29 Including Australian deviations.
Dimensions: 600 x 490 x 100 mm (L x W x D)
Manufacturers Manufacturer Warranty: 2 Years
