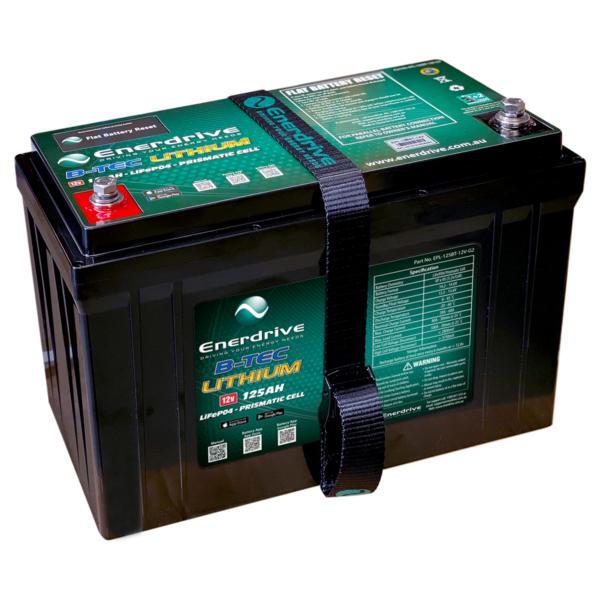

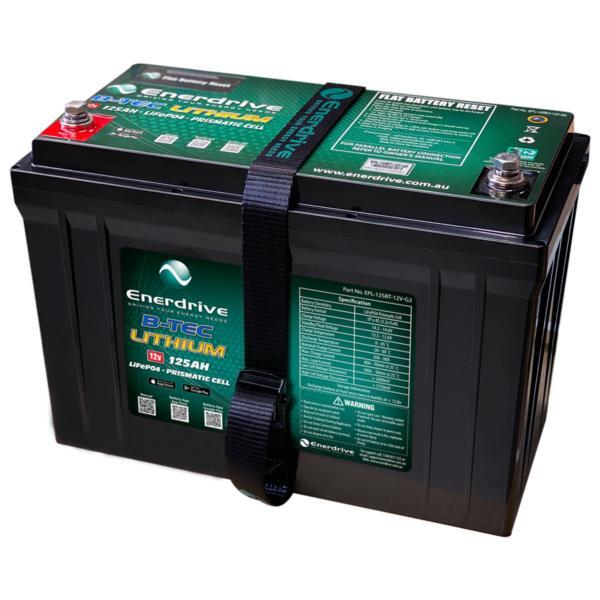

Enerdrive B-TEC 125AMP 12v LiFePO4 Battery Gen2

Enerdrive B-TEC LiFeP04 12v 125Ah G2 Lithium Battery

The ePOWER B-TEC lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

Smart Phone Monitoring System
The Enerdrive Enerdrive B-TEC G2 battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

Battery Capacity
Battery Voltage
Battery Current (Amps)
Battery State of Charge (SOC)
Battery State of Health (SOH)
Battery Status
Individual Cell Voltage
Battery Temperature
Battery Cycles
Battery Alarms
Battery Event Information
Battery Management System
The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

Size & Weight Savings
Lithium v AGM Capacities;

100Ah Lithium = 160Ah AGM
125Ah Lithium = 200Ah AGM
200Ah Lithium = 320Ah AGM
300Ah Lithium = 480Ah AGM
(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

The Enerdrive B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

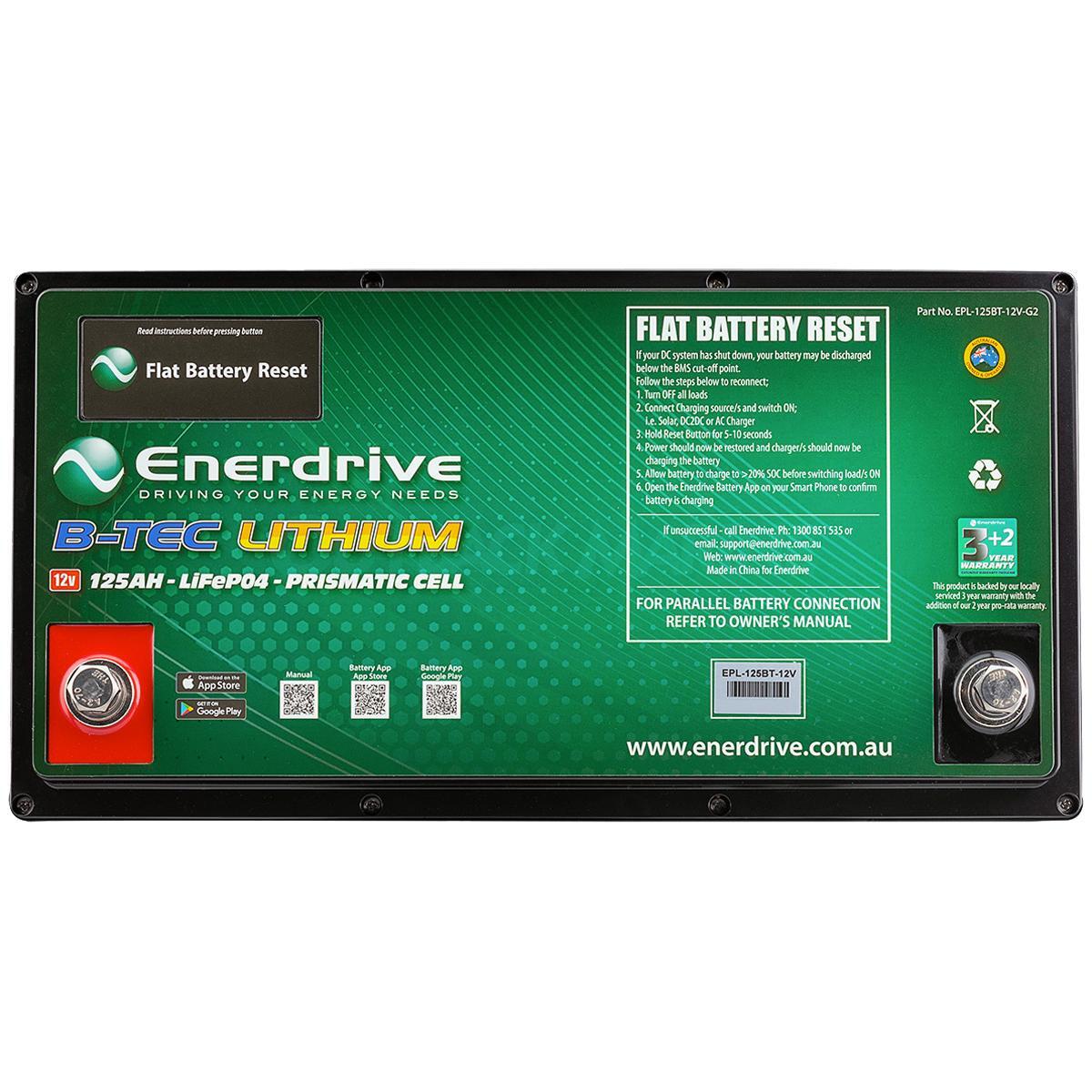

The G2 now incorporates a “Built-In Reset Button” making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.

The Enerdrive B-TEC battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

With over 7 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.

With over 3000 complete systems in operation Australia wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.

Please Note; The B-TEC battery is capable to be paralleled to a second B-TEC battery of the same size. For maximum performance and lifespan of your B-TEC battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.

The 125Ah G2 battery is able to accept a maximum inverter capacity of 1000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.

If you are requiring a battery system larger than Enerdrive B-TEC battery, please look at the Enerdrive Pro Series Power Pack Systems which can offer multiple parallel and series connections with Active Cell Balancing Protection across the entire pack.

Specifications

Normal Specification	EPL-100BT-12V-SLIM	EPL-125BT-12V G2	EPL-200BT-12V G2	EPL-300BT-12V G2
Nominal Voltage	12.8V
Nominal Capacity	100Ah	125Ah	200Ah	300Ah
Cycle Life (DOD – 80% under controlled conditions)	≥ 2000 Cycles
Standard Charge Specification (Lithium profile charger required)
Battery Charge Temperature	0 ̴ 45°C
Normal Charge Voltage CV/CC*	14.20 ̴ 14.60V
Standby (Float) Voltage	13.50 ̴ 13.80V
Maximum Charge Current	80A @ 25˚C for 30mins	60A @ 25°C for 30mins	150A @ 25°C for 30mins	190A @ 25°C for 30mins
Recommended Charge Current For Maximum Life, Charge in the lower amperage range	20~50A	20~60A	40~100A	80~120A
Standard Discharge Specification
Battery Discharge Temperature	-20 ̴ 60°C
Battery Output Voltage Range	11.00 ̴ 14.60V
Maximum Discharge/Pulse Current	100A @ 25˚C ±5˚C for 30 mins	100A @ 25˚C ±5˚C for 30 mins	200A @ 25˚C ±5˚C for 30 mins	250A @ 25˚C ±5˚C for 15 mins
Pulse Discharge Current	250A for 1.0s	450A for 1.0s
Discharge Cut-off Voltage	≤11.20V
Circuit Protection	The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.
Over-Charge Protection
Over-charge Protection Per Cell	3.90V ± 0.03V
Over-charge Release Per Cell	3.60V ± 0.05V
Over-charge Release Method	Discharge below release voltage
Over-Discharge Protection
Over-discharge Protection Per Cell	2.80V ± 0.05V
Over-discharge Release Per Cell	3.20V ± 0.05V
Over-discharge Release Method	Apply Charge/Voltage ≥12.8V
Battery Manual Reset Button	No	Yes
Over Current Protection
Discharge Over Current	110A for 30s – 450A for 1s	110A for 30s – 450A for 1s	220A for 30s – 450A for 1s	280A for 25s – 400A for 3.5s
Protection Reset Time	Approx 10s Auto Release
Over Current Release Method	Disconnect Load
Over Temperature Protection
Battery Discharge Over Temperature	Protection to 65°C ± 5°C
	Release at 50°C ± 5°C
Battery Charge Over Temperature	Protection to 55°C ± 5°C
	Release at 45°C ± 5°C
Short Circuit Protection	Auto release after 5s
Dimensions
Length	551mm	318mm	505mm	521mm
Width	110mm	165mm	172.5mm	280mm
Height	240mm	232mm	265mm	238mm
Weight	Approx 12.5 Kg	Approx 15.5 Kg	Approx 25.0 Kg	Approx 38.2 Kg
Storage Information
Temperature & Humidity Range	≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH
	≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
Self-discharge Rate	≤ 3% Per Month

Note: Specifications subject to change without notice.

SKU	EPL-125BT-12V
Model #	EPL-125BT-12V
Brand	Enerdrive
Type	Lithium Ion Battery
