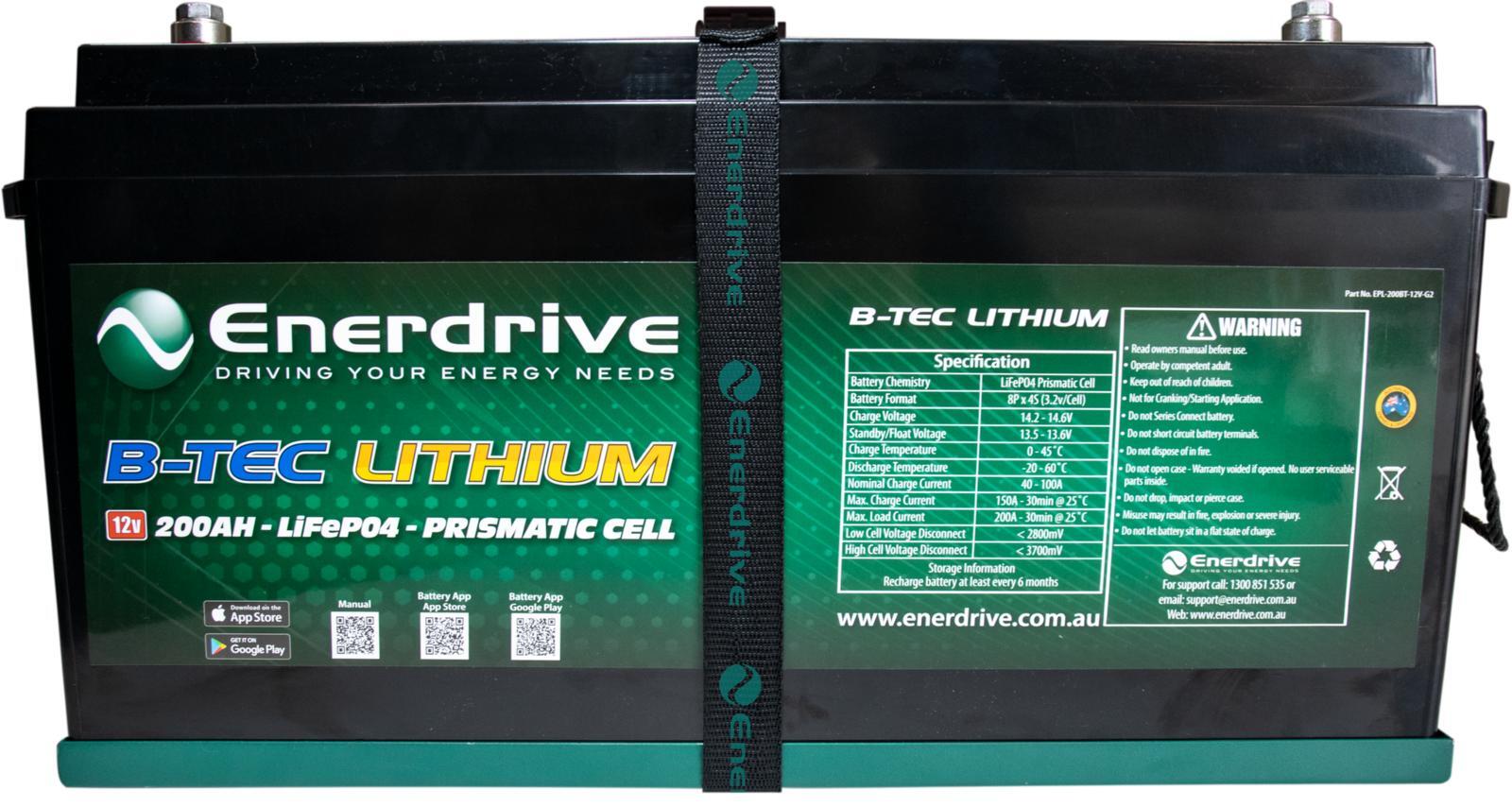

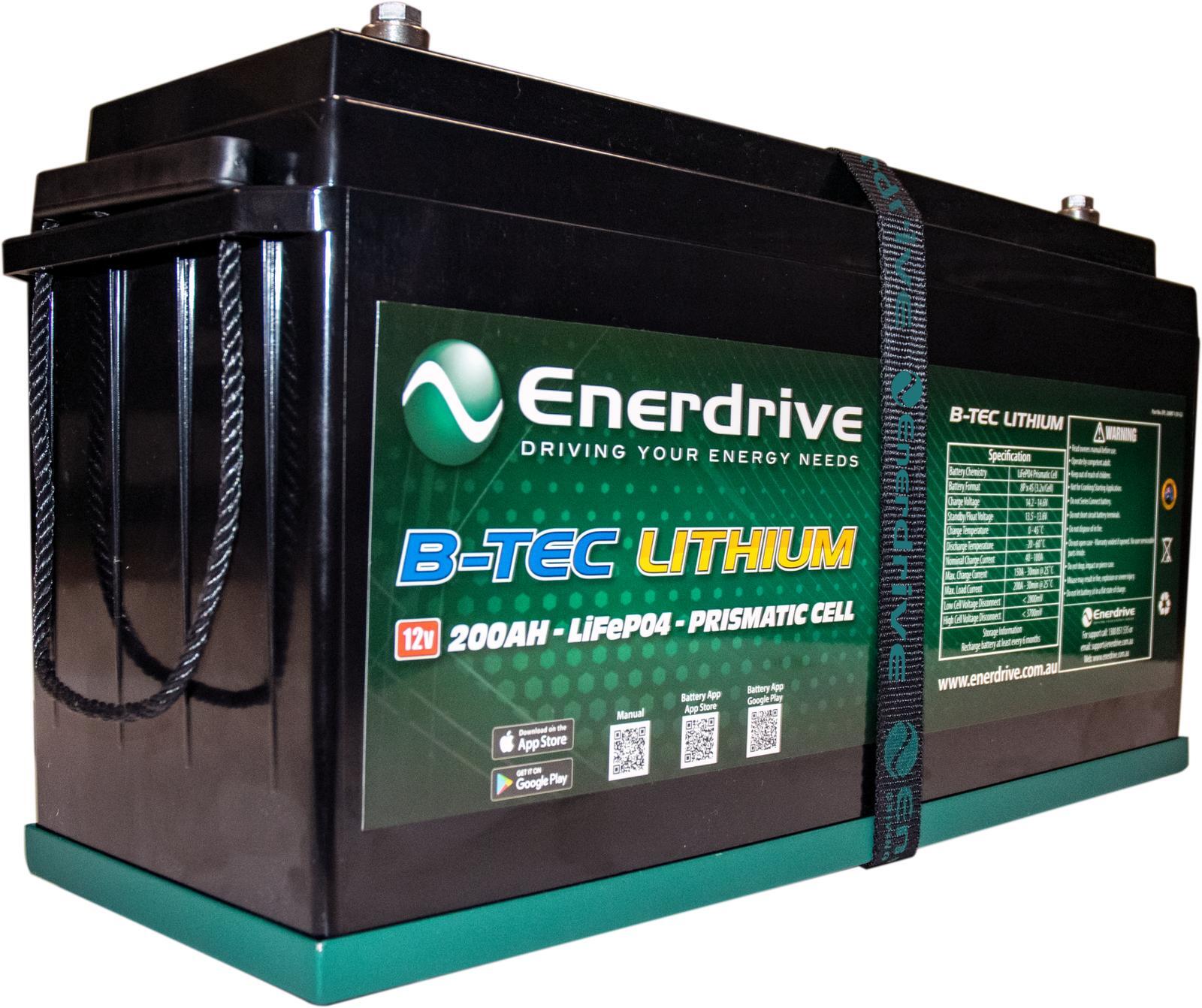

EnerdriveB-TEC 200AMP 12v LiFePO4 Battery BT Gen2 (Battery only)
SKU: EPL-200BT-12V-G2
Free Toolguard 6 Month Theft Protection Automatically Included
Covers you for theft of products listed on the policy from
- Locked vehicles or premises
- Equipment securely attached to a vehicle with locks or padlocks
Please note that terms and conditions apply to theft claims, including an excess fee of 10% of the retail value of the product or $150, whichever is lower.
If you ever need to make a claim, our team is on the job to get things sorted and have you back in business fast.
Click here to see more
Enerdrive EPOWER B-TEC 200AH LITHIUM BATTERY ONLY
The New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery now comes with a 3 year full replacement Manufacturer Warranty.
The ePOWER B-TEC is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.
Features:
BMS restart button for easy recovery.
RS485 communications port for advanced system integration.
Raised terminals for 360 degree cable connections.
Re-designed battery case for easy serviceability.
Battery box and straps INCLUDED - nothing more to buy!
Product dimensions 505 x 173 x 265 mm
Smart Phone Monitoring System
The Enerdrive ePOWER B-TEC battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;
Battery Capacity
Battery Voltage
Battery Current (Amps)
Battery State of Charge (SOC)
Battery State of Health (SOH)
Battery Status
Individual Cell Voltage
Battery Temperature
Battery Cycles
Battery Alarms
Battery Event Information
Battery Management System
The battery is also equipped with an internal LiFePO4 Battery Management System (BMS) that can monitor and optimize each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
Size & Weight Savings
Lithium v AGM Capacities;
200Ah Lithium = 360Ah AGM
(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).
The ePOWER B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.
The ePOWER B-TEC battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.
Please Note: This ePOWER B-TEC lithium battery is capable to be paralleled to a second ePOWER B-TEC lithium battery. For maximum performance and lifespan of your lithium battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.
Specifications:
Amp Hours (Ah): 200.0 Ah
Battery Voltage: 12V
Float: 13.50 - 13.80V
Model: EPL-200BT-12V
Nominal Voltage: 12.8V
Nominal Capacity; 200Ah
Total Charge Current: Max 150A @ 25°C for 30mins
Cycle Life (DOD – 80% under controlled conditions): ≥ 2000 Cycles
Battery Charge Temperature: 0 - 45°C
Normal Charge Voltage CV/CC*: 14.40 - 14.60V
Standby (Float) Voltage: 13.50 - 13.80V
Maximum Charge Current: 150A @ 25°C for 30mins
Recommended Charge Current for Maximum Life: ≤ 60A
Battery Discharge Temperature: -20 - 60°C
Battery Output Voltage Range: 11.00 - 14.60V
Maximum Discharge Current: 200A @ 25°C ± 5°C for 30mins
Pulse Discharge Current: 450A for 1.0s
Discharge Cut-off Voltage: ≤ 11.20V
Dimensions: 505 x 172.5 x 265 mm (L x W x H)
Net Weight (kg): 25.0 Kg
Manufacturer Warranty: 5 Years
SKU | EPL-200BT-12V-G2 |
Model # | EPL-200BT-12V-G2 |
Brand | Enerdrive |
Type | Lithium Ion Battery |
