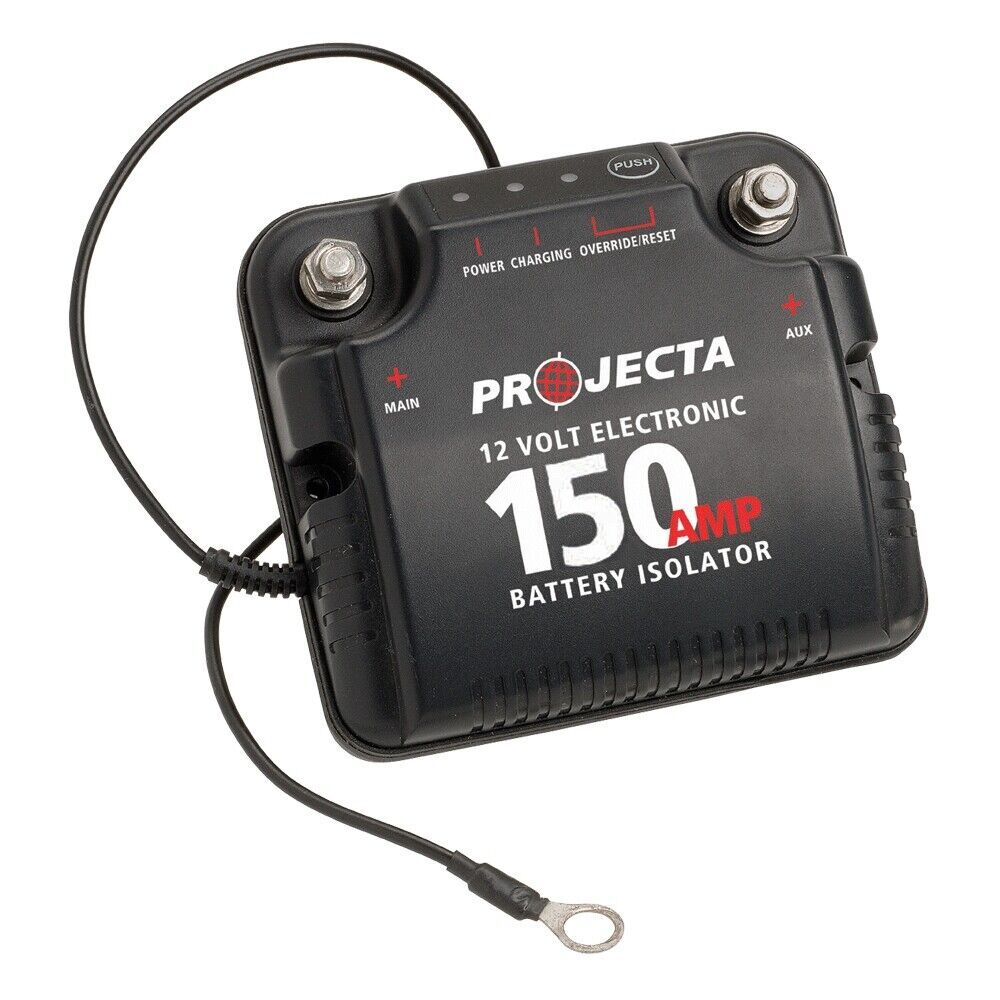

PROJECTA 150 AMP DUAL BATTERY ISOLATOR MODEL DBC150, BRAND NEW IN SEALED BOX WITH FULL NATIONWIDE Manufacturer Warranty

WHEN CONSIDERING THIS CHARGER HAVE A LOOK AT ITEM NUMBER  , THIS IS NOT A PROJECTA BRAND BUT HAS AN OVER RIDE FEATURE AND ARE DUAL SENSING , IT IS WORTH A LOOK BEFORE BUYING THIS ITEM TO TAKE YOU TO IT


The Projecta DBC150 suits all 12 VOLT vehicle types and gives priority charging to the starting battery before connecting the auxiliary. This ensures power is always available to run accessories and start the vehicle. However Projecta has designed the unit with a manual override for emergency jumpstarting. Projecta has designed surge protection as an integral part of the unit. They also use an MCU (Micro Processor Unit) to prevent the DBS isolator from disconnecting unless the battery voltage is low for more than 1 minute. This prevents the issues found in some other systems using VSR’s (Voltage Sensitive Relay) where the isolator frequently switches on and off due to highs and lows in the voltage system, causing poor charging to the auxiliary battery.

Importantly the electronic isolator does not require any changes to the vehicle’s existing wiring and can be applied to any 12 volt system. All units are sealed against the ingress of dust and water.

, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, ,
FEATURES
 Easy to InstallThe electronic isolator does not require any changes to the vehicle’s existing wiring. It can be fitted to all 12V vehicle types (though you will need cabling, connectors. etc).
 Priority Charging for Starting BatteryEnsures that the starting battery is fully charged before connecting the auxiliary battery in parallel.
 Manual OverrideIf the starting battery is flattened and the auxiliary battery is charged, the electronic isolator allows the batteries to be manually paralleled to jumpstart the vehicle.
 Over-Current ProtectionProtects the Isolator and charging system from over current damage, which could occur due to a short circuit in the wiring.
 Surge ProtectionProvides surge protection for vehicles with electronic ignition/management systems.

SPECIFICATIONS
 VOLTAGE12V
 CHARGING CURRENT125A/150A peak
 CHARGE TYPEParallel
 CONTROLElectronic
 MOUNTINGSurface/firewall/battery side
 CURRENT DRAWCharging 500mA (Standby 30mA)
 VOLTAGE DROPNone
 SURGE PROTECTIONBuilt in



SKU DBC150
Model # DBC150
Barcode # 9315219150554
Brand Projecta
Shipping Weight 0.5000kg
Unit Of Measure ea
Type Automotive Electrical
Brand Projecta
MPN DBC150
Package Quantity 1
Exterior Accessory Type 4x4
type Automotive Electrical
