AUTOMATIC 12/24V 20A 4 STAGE SOLAR CHARGE PREMIUM CONTROLLER WITH REMOTE CONTROL

PART NO SC320D

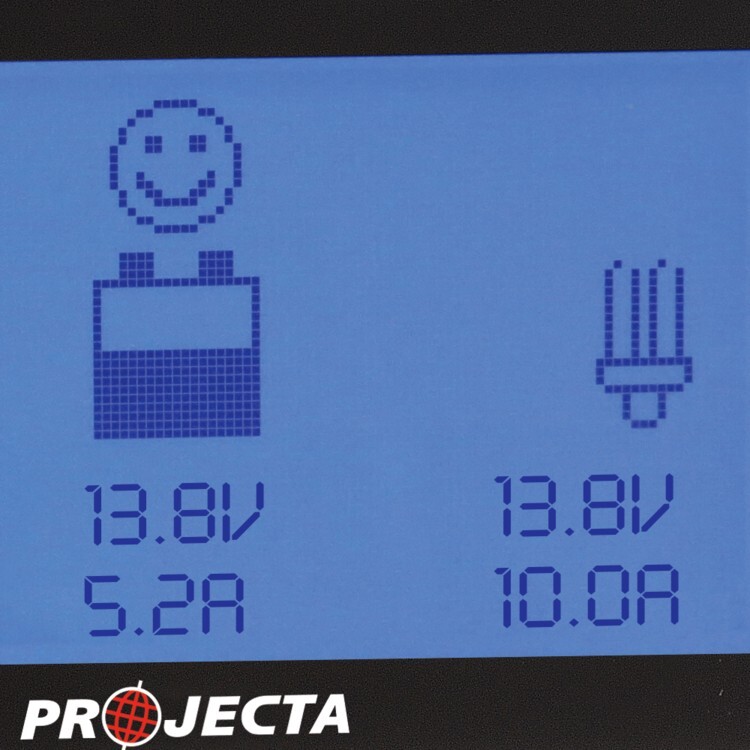

The ideal controller to suit panels producing up to 20A, often found in caravans. The sophisticated remote control provides total user control and advanced operation and allows the user to set a tailored charging profile and monitor battery and charging status.

FEATURES
Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, AGM or Gel, or user settings

L.E.D status indicators
Displays quick reference to charge and battery status

Manual load control
Allows user to switch the DC load on/off from the controller itself

Temperature sensor
Built-in sensor enables unit to optimise charge performance and offer additional protection. Optional sensor probe also available

Low voltage disconnect
Set the disconnect voltage point to best suit your application, protecting your battery from over discharge.



SPECIFICATIONS

PART NO

SC320D

INPUT

12 or 24V

MAX INPUT

50VDC, 20A

MAX CHARGE / LOAD

20A

MAX PANEL SIZE

240W (12V)

LOAD SWITCHING

Negative

BATTERY

12V or 24V

CHARGE CONTROL

4 Stage Charging
Bulk /
Absorption:


Equalisation:


Float:


Gel:
AGM:
Wet:
Gel:
AGM:
Wet:
12V

14.2V
14.4V
14.6V

14.6V
14.8V
13.8V
24V

28.4V
28.8V
29.2V

29.2V
29.6V
27.6V

LVD DISCONNECT

12V: Default 11.1V
24V: Default 22.2V
User Set 9-17V
User Set 18-34V

LVD RECONNECT

12V: Default 12.6V
24V: Default 25.2V
User Set 9-17V
User Set 18-34V

STANDBY CURRENT

23.4mA

APPROVALS

EMC

SKU SC320D
Barcode # 9315219320209
Brand Projecta
Shipping Weight 0.7000kg
Unit Of Measure ea
Type Solar Power
