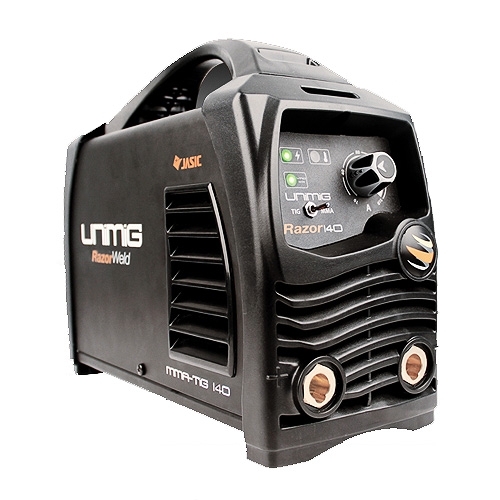

Unimig Portable MMA/TIG 140Amp DC Welding Machine KUMJRRW140CA
SKU: KUMJRRW140CA
Free Toolguard 6 Month Theft Protection Automatically Included
Covers you for theft of products listed on the policy from
- Locked vehicles or premises
- Equipment securely attached to a vehicle with locks or padlocks
Please note that terms and conditions apply to theft claims, including an excess fee of 10% of the retail value of the product or $150, whichever is lower.
If you ever need to make a claim, our team is on the job to get things sorted and have you back in business fast.
Click here to see more
The ARC140 is an inverter-based welding machine produced using the latest in IGBT technology. This machine is reliable, robust and stacked with features that you can expect from a quality welder. The DC MMA welding capability delivers a smooth and incredibly stable arc allowing easy welding with electrodes producing high quality welds including cast Iron, stainless and low hydrogen. The ARC140 is equipped with DC Lift Arc function, connection of the 17V TIG torch allows quality DC TIG welding of steel, stainless steel, bronze and copper. The Lift Arc function is superb and delivers perfect arc ignition every time without any sticking of the tungsten electrode to the work piece, a remarkably smooth stable arc produces high quality TIG welds. The ARC140 is an exceptional machine that is suitable for a wide range of applications including light industrial use, site welding, farming, along with repair and maintenance applications. The Arc140 is packaged in a tough PVC carry case with your choice of MMA option accessories or MMA/TIG option accessories. The-ARC140 gives you the best of both worlds great portability, with the power to get the job done.
Built to our specification and manufactured in compliance to AS/NZ60974.1
Features
- Latest IGBT inverter technology
- MMA (stick electrode)
- Hot start (improves electrode starting)
- VRD (Voltage Reduction Device)
- Arc force - (boosts current to prevent electrode extinguishing)
- Excellent arc stability with all electrodes
- DC TIG
- Lift Arc ignition - (prevents tungsten sticking during arc ignition)
- Ultra smooth DC TIG welding current
- Thermal overload protection
- Generator compatible - (recommend 7.0 KVA minimum)
- Tolerant to variable power supplies
Specifications: | |
---|---|
Power Supply / Phases (V-Ph) | 240V - 1 ±15% |
Rated Input Power (KVA) | 7 |
ieff | 9.7 amps |
imax | 25 amps |
Rated Output | 140 A/25.6 V |
Welding Current Range | 10~140A |
No-Load Voltage (V) | 9V |
Duty Cycle @ 40°C as per AS/NZ60974-1 | 15% @ 140Amps |
Protection Class | IP21 |
Insulation Class | F |
Size | 313 x 250 x 130 mm |
Weight | 4.7 kg |
SKU | KUMJRRW140CA |
Barcode # | 9339793011346 |
Brand | UNIMIG |
Shipping Weight | 6.7000kg |
Assembled Length | 0.313m |
Assembled Height | 0.250m |
Assembled Width | 0.130m |
Type | tools |
Warranty | 3 Year |
