The battery Indicator Panel shows the state of charge of the battery. It is an accessory for the Blue Smart IP65 Chargers.

Suitable for 12V lead acid batteries (flooded, GEL, AGM)

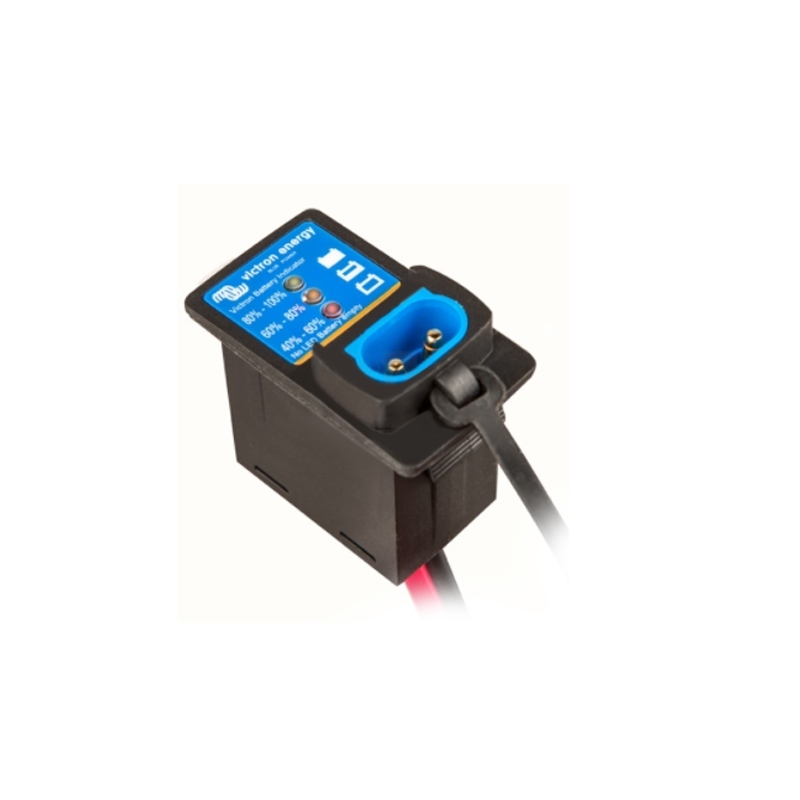

Battery Indicator Panel and indicator eyelet
The battery indicator shows the status of the battery. It is an accessory for the Blue Smart and Blue Power IP65 Chargers. It is suitable for 12V lead acid batteries only (flooded, GEL, AGM).

Easy to use
After using the battery it takes about 30 minutes for the battery to regain its steady state condition and for the panel to show a correct status
indication.

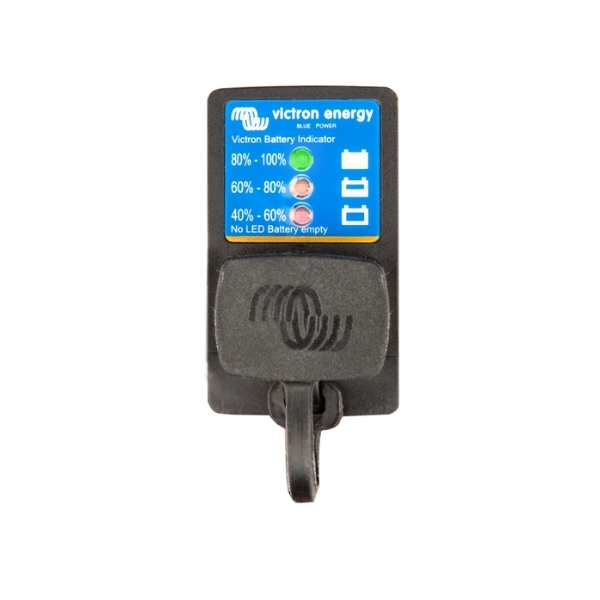

Green light: Battery does not need to be charged. Battery 80%-100%
Orange light: Battery can be charged. Battery 60%-80%
Red light: Battery needs charging. Battery 40%-60%
No light: charge immediately to prevent sulfation. Battery <40%

Specifications:

Voltage: 6-15V
Back current drain: 0.9mA
Maximum Current: 30A
Length of cable: 0.3m
Cable diameter: 3.3mm2 [AWG12]
Size 45x26x50mm
Battery connection type: M8 Eyelet connectors
Fuse: 30A ATO fuse
Weight: 0.17kg
Protection category: IP65

SKU BPC900110114
Model # BPC900110114
Brand Victron
Shipping Weight 0.2000kg
Shipping Width 14.000m
Shipping Height 4.000m
Shipping Length 8.000m
Type Automotive Electrical
type Battery Chargers
