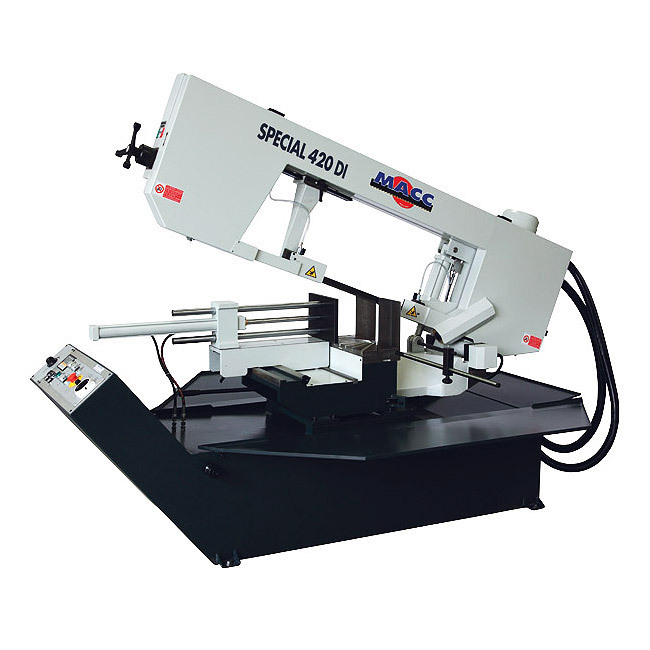

Features:
  • Italian made quality
  • 2 Way swivel head enables 0° to 60° mitre cuts
  • Semi-automatic machine
  • Dual direction heavy duty vice
  • Incorporated recirculating coolant system
  • Electro-mechanical blade tensioner
  • Comes complete with stand & blade
Semi-Automatic Function:
  • Operator Inserts Material
  • Operator Press Start Button
  • Vice Clamps Material
  • Blade Motor Starts
  • Bow Lowers & Cuts Material
  • Blade Motor Stops
  • Bow Rises, Vice Opens
Specifications:
Motor 2 HP Three Phase (415V)
Blade Speed 2 Speed 37 / 75 mpm
Blade Size 34 mm x 1.1 mm x 4610 mm
Bed Height 760 mm
Weight 820 kg
Cutting Capacity:
Cutting Angle Round Square Rectangle
90° 400 mm 400 x 400 mm 550 x 400 mm
45° Right 400 mm 380 x 380 mm 410 x 300 mm
60° Right 280 mm 280 x 280 mm 400 x 280 mm
45° Left 400 mm 380 x 380 mm 420 x 300 mm
60° Left 260 mm 260 x 260 mm 400 x 230 mm
SKU MB-420DI-3
Barcode # 9328042032577
Brand MACC
Shipping Weight 820.0000kg
Type tools
Warranty 1 Year
