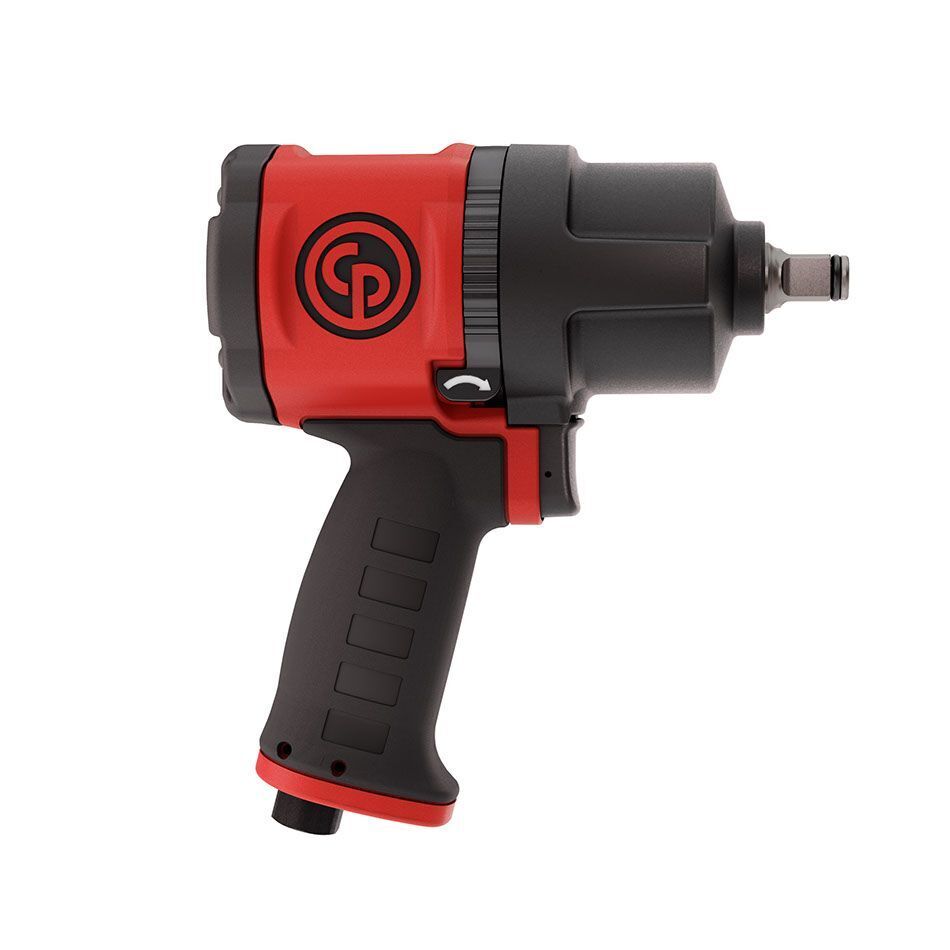

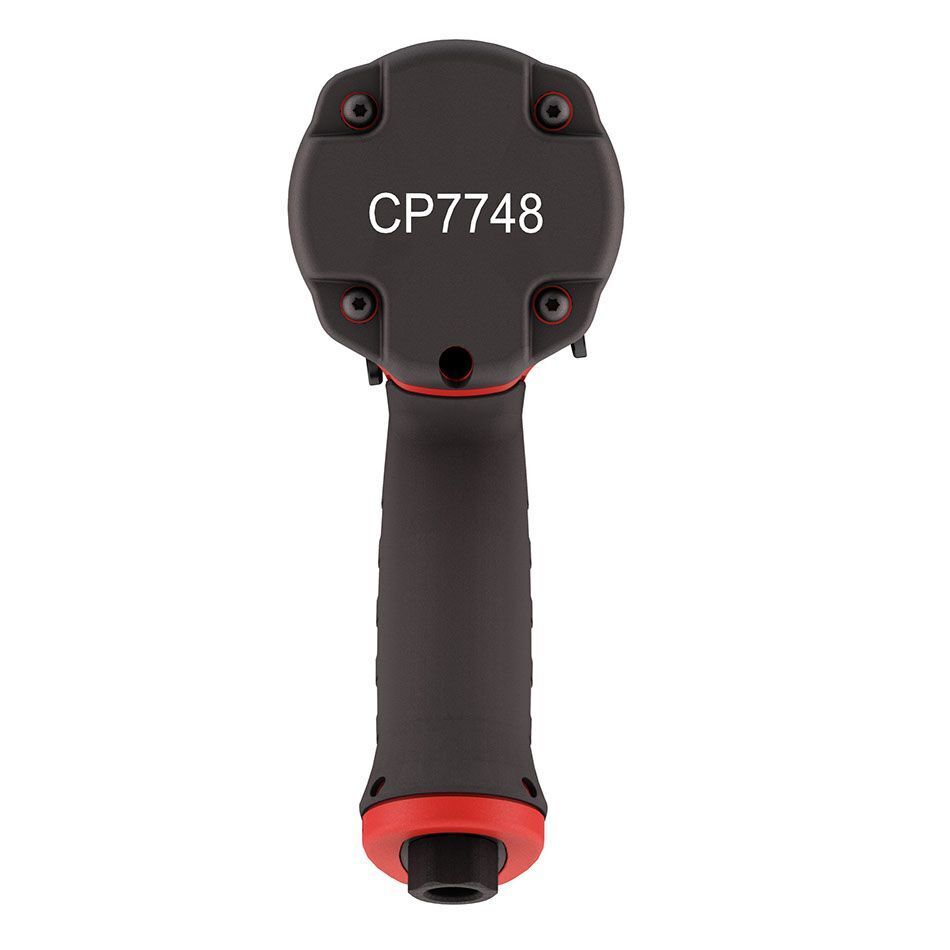

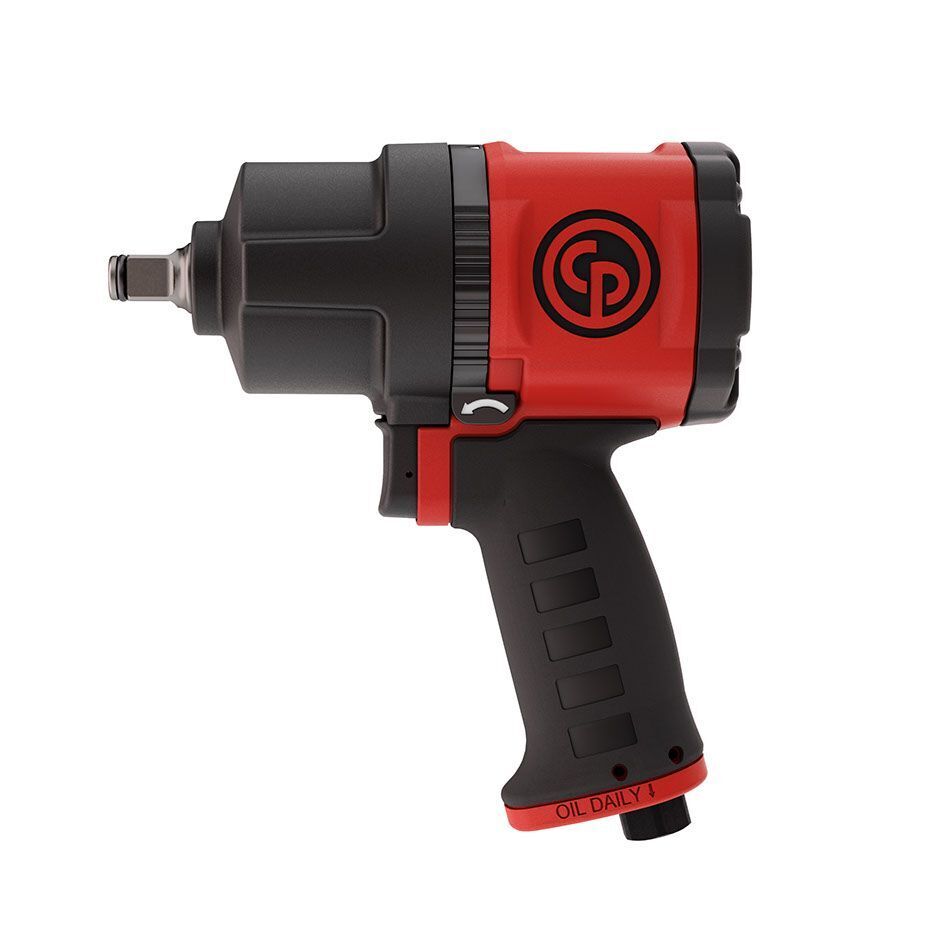

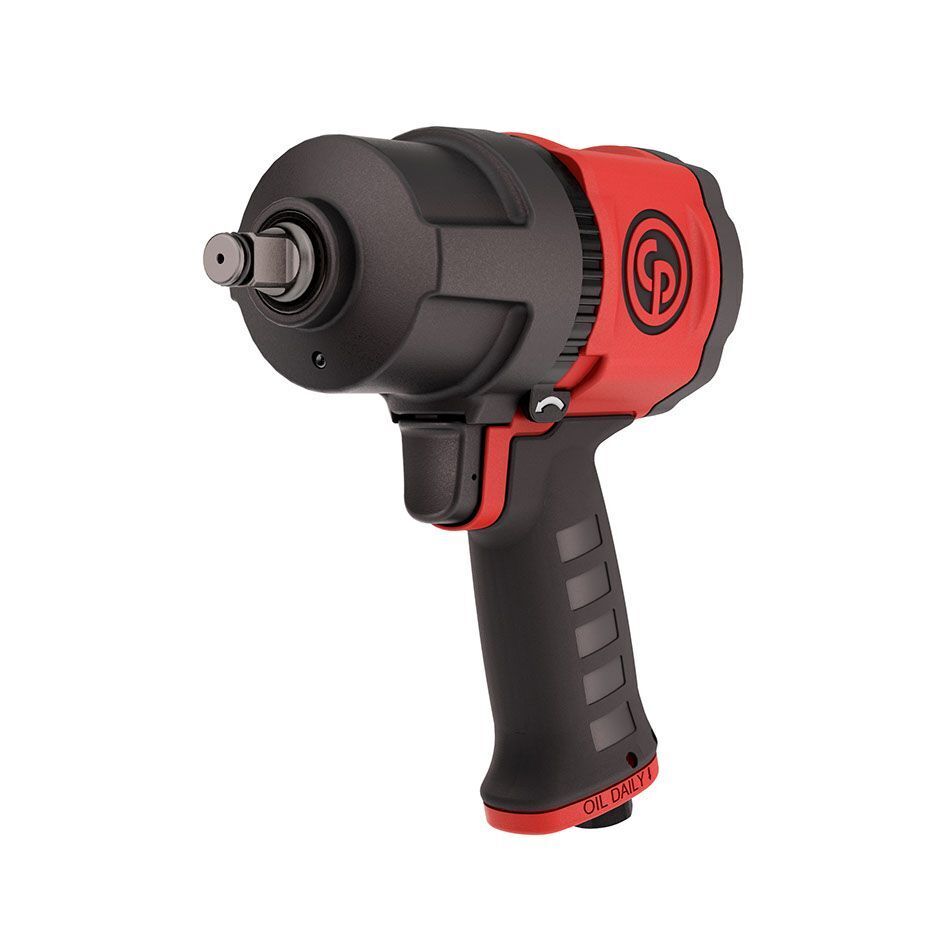

Chicago Pneumatic CP7748 ½" G-Series Air Impact Wrench
Suited for all maintenance applications: Light vehicle tire changing, General maintenance on vehicles and MRO applications.
Features
- 1/2" composite impact wrench
- One handed forward/reverse
- Full power in reverse: 960 ft. lb - 1300 Nm maximum real torque in reverse
- 3 positions in forward: Low - 180 ft-lbs. / 245 Nm - Medium - 480 ft-lbs. / 650 Nm - High - 730 ft-lbs. / 990 Nm
- Aluminum clutch & back housing
- Friction ring socket retainer
- Full teasing trigger
- Curved to be more ergonomic, Smaller diameter to fit better in hand palm and to be optimum balanced
- Handle with Thermo-Plastic Rubber injected in housing for a durable and comfortable grip; Resistant to most chemicals used in workshops
- Twin hammer mechanism
- 360° swivel air inlet
- Composite housing
Specifications
Part number | 8941077480 | |
Handle type | Pistol | |
Square drive | 1/2" | |
Working Torque Range (fwd) | 102-786 Nm | 75-580 |
Maximum Torque (reverse) | 1300 Nm | 960 ft.lbs |
Free speed | 8200 rpm | |
Blows per minute | 1200 | |
Net weight | 2 kg | 4.6 lb |
Power/weight ratio | 625 Nm/kg | 200.4 ft.lb/lb |
Length | 200 mm | 7.8" |
Side to center | 38 mm | 1 1/2" |
Average air consumption | 3 l/s | 6.2 cfm |
Actual air consumption | 12 l/s | 25 cfm |
Air inlet thread size | 0.25 " | |
Min. hose size | 10 mm | 3/8" |
Noise level | 93 db(A) | |
Sound Power | 104 db(A) | |
Vibration α (ISO-28927-2) | 10.1 m/s² | |
Vibration K (ISO-28927-2) | 2.34 m/s² | |
Socket retainer | Friction ring | |
Clutch type | Twin Hammer | |
Box dimensions | 215*210*77 | 8,5*8,25*3,03 |
Over carton | 455*420*240 | 17,9*16,5*9,45 |
SKU | CP7748 |
Barcode # | 15451780722 |
Brand | Chicago Pneumatic |
Shipping Weight | 1.9000kg |
Shipping Width | 0.100m |
Shipping Height | 0.100m |
Shipping Length | 0.200m |
Assembled Length | 0.200m |
Assembled Height | 0.100m |
Assembled Width | 0.100m |
Type | Tools |
