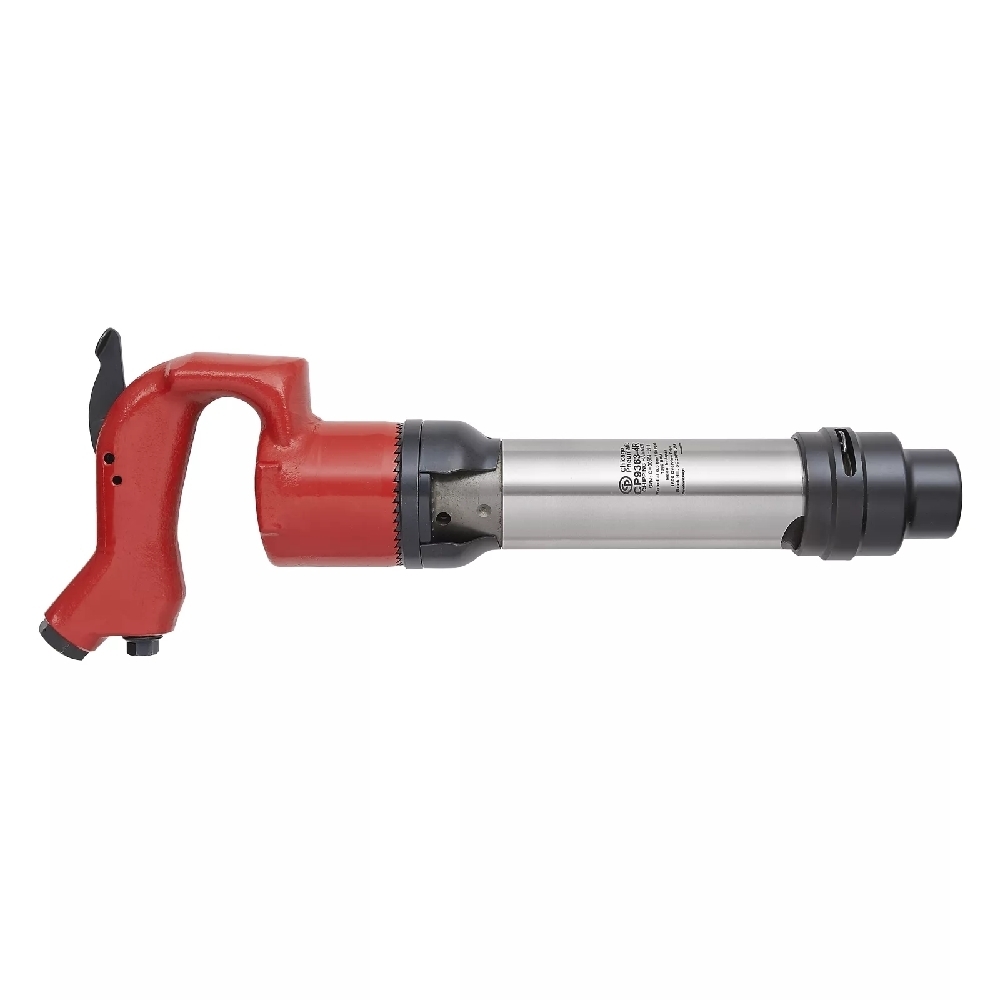

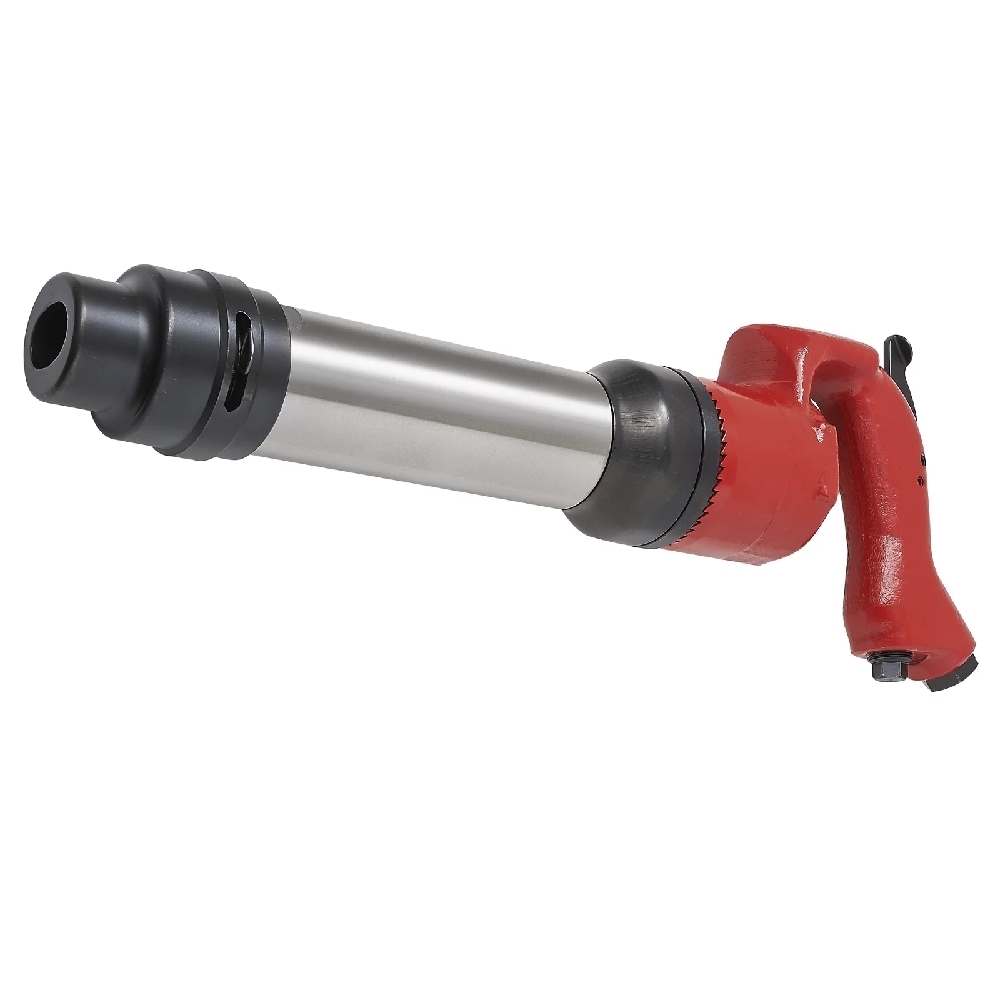

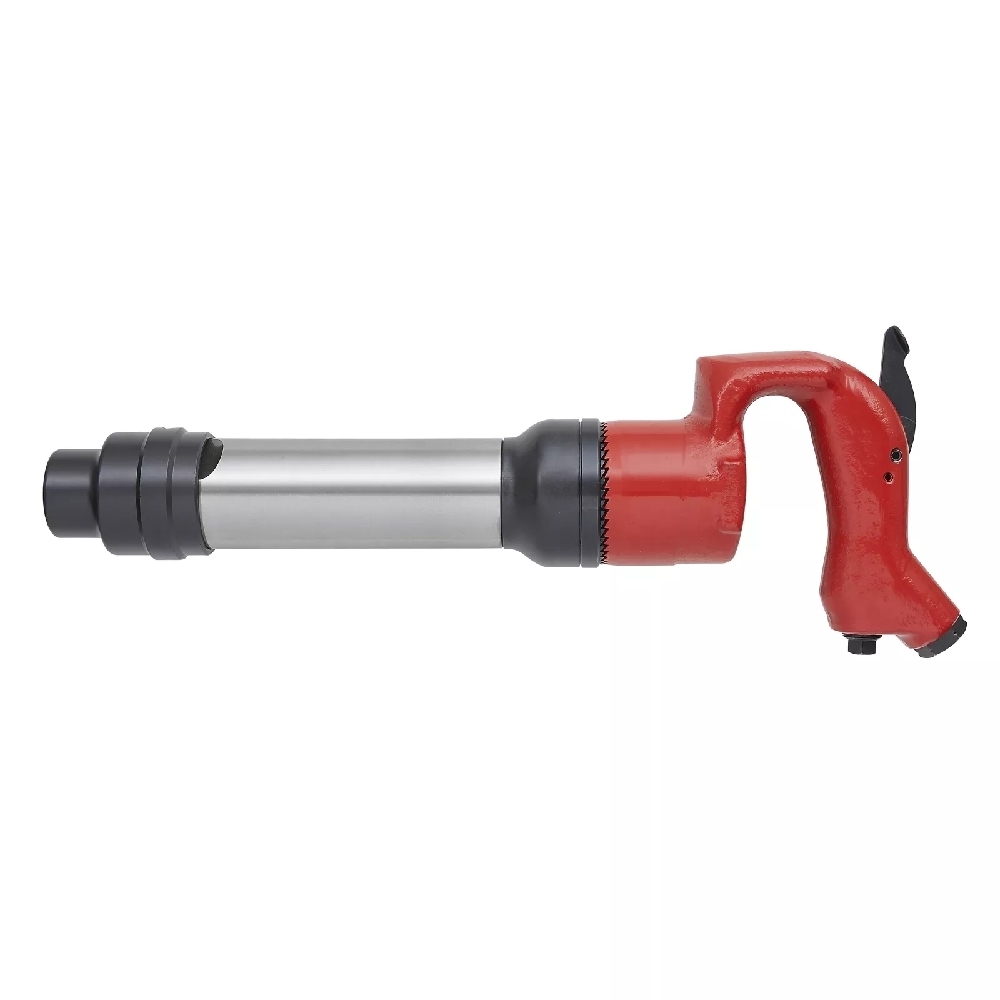

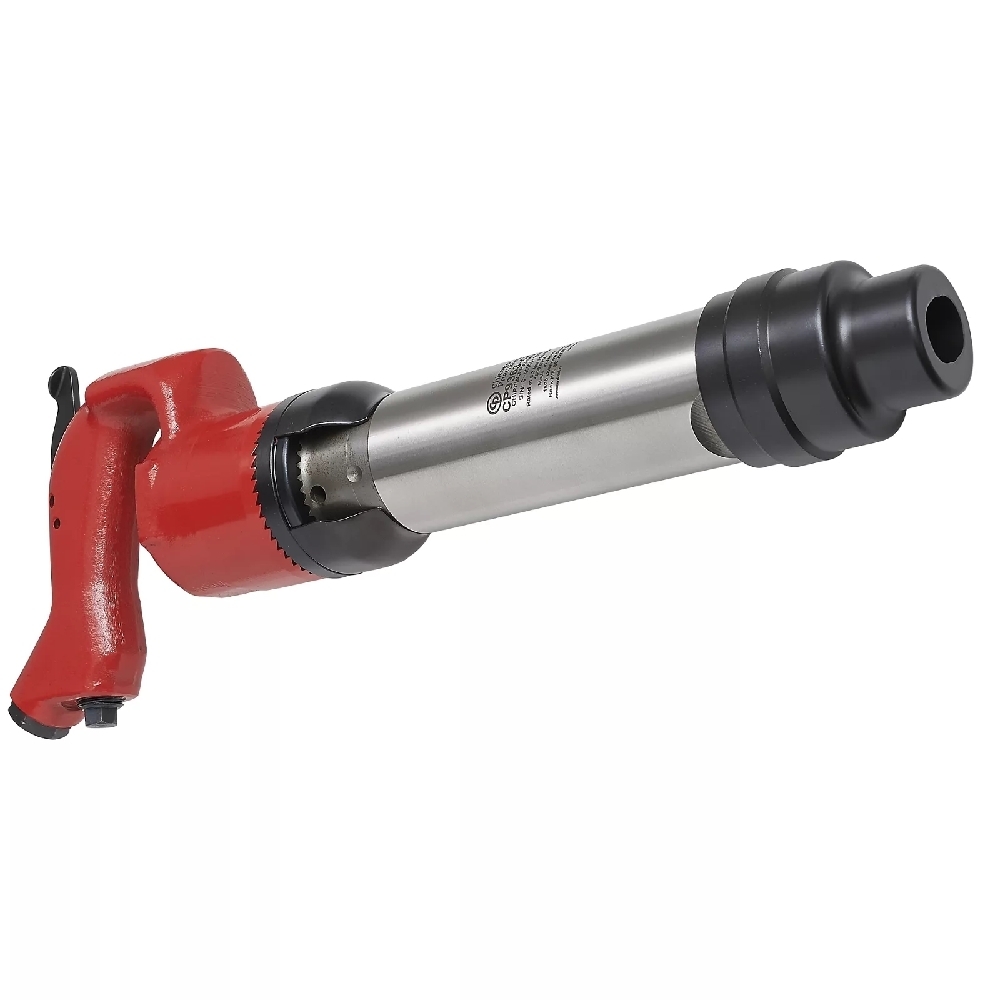

Chicago Pneumatic CP9363-4H Heavy Duty Chipping Hammer

Features & Benefits

Robust and ergonomic gooseneck grip
Orientable steel exhaust deflector
Easy chisel replacement design
Thick steel safety lever
Heat treated durable cylinder
Not for CE Markets
Durability in demanding applications
Secure grip for maximum safety
Easy chisel replacement

Specifications

	Metric	Imperial
Model	CP9363-4H
Part number	6151612100
Actual air consumption	15.7 l/s	33 cfm
Air inlet thread size	3/8 "
Blows per minute	1600
Bore	29 mm	1 1/8 "
Butt diameter	14.732 mm	0.58 "
Chisel rivet set shank	14,2 mm	.580 "
Length	470 mm	18.5 "
Min. hose size	10 mm	3/8 "
Net weight	8,4 kg	18,4 lb
Shank	Hexagonal
Sound DBA pressure	104,1 db(A)
Sound Power	115,1 db(A)
Stroke	102 mm	4 "
Vibration	16,2 m/s²
Vibration ISO	ISO-28927-9
Vibration uncertainty (K)	3,3 m/s²

SKU	CP9363-4H
Brand	Chicago Pneumatic
Shipping Weight	8.4000kg
Shipping Width	0.100m
Shipping Height	0.100m
Shipping Length	0.470m
Assembled Length	0.470m
Assembled Height	0.100m
Assembled Width	0.100m
Type	Tools
