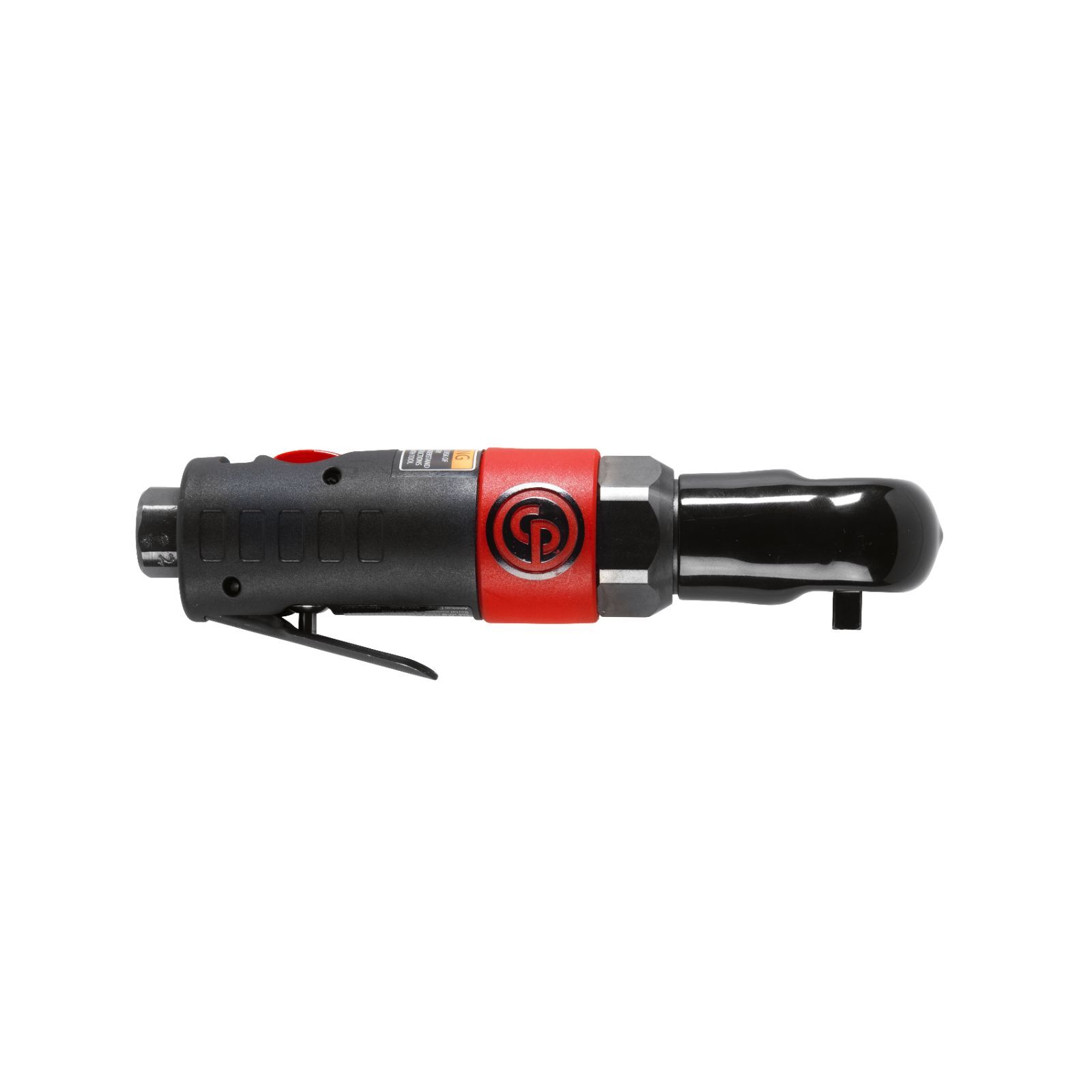

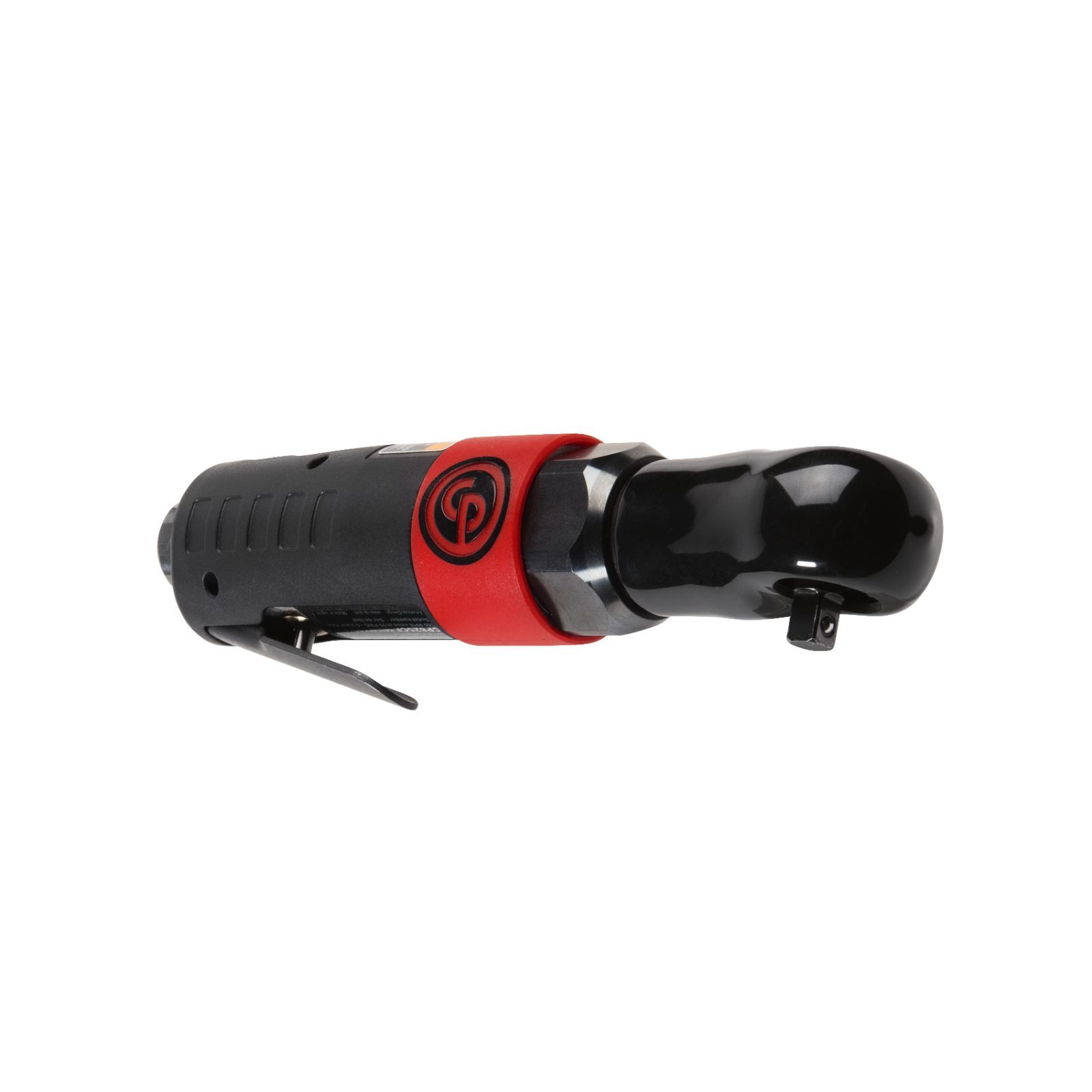

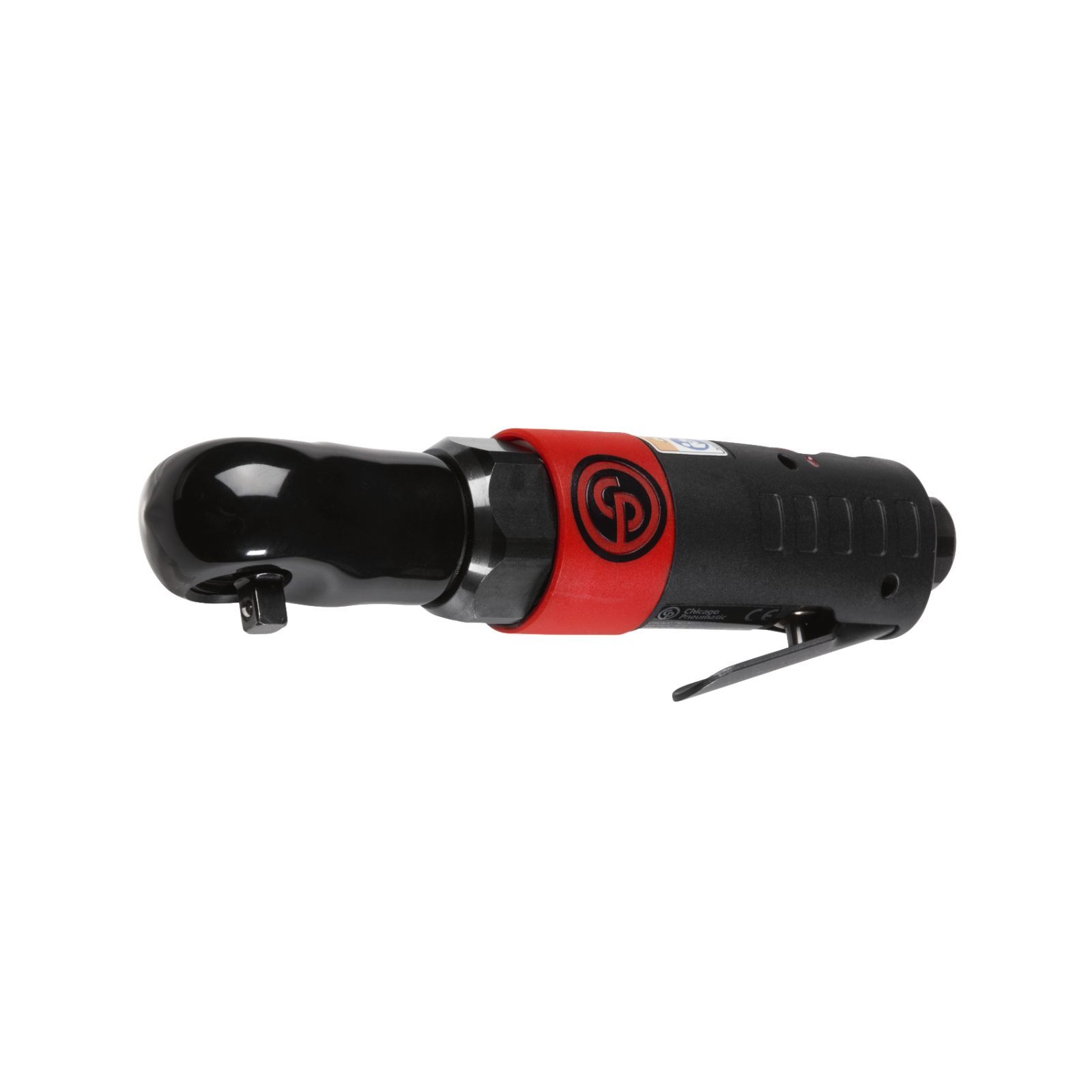

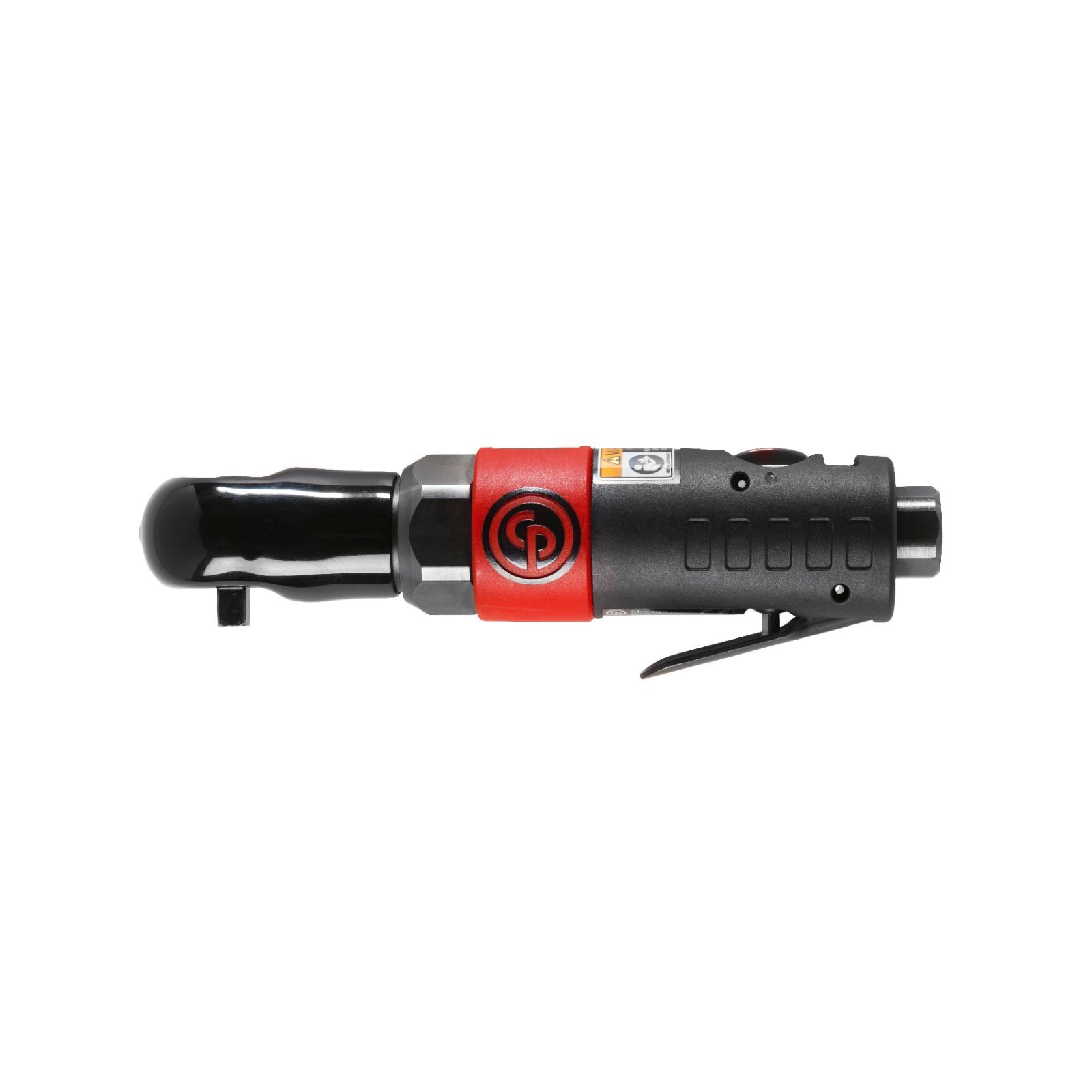

Chicago Pneumatic CP825C 1/4" Composite Mini Ratchet Wrench


Features

  • Aluminium body with composite housing to insulate from cold
  • Fast rundown 280 RPM
  • Short & Wide lever
  • Back exhaust avoids blowing dirt and dust
  • New power easy-to-use regulator to regulate speed from zero to max speed
  • Flat forward and reverse button
  • Improved head material
  • Head composite protective cover supplied with the tool
  • Shank with ball retainer
  • 1.1 lbs. – 0.5 kg


Specifications

Part number 8941082511
Actual air consumption 438 l/mn 15.5 cfm
Air inlet thread size 1/4 "
Average air consumption 88 l/mn 3.2 cfm
Box dimensions 50x110x190 mm 1.97x4.33x7.48 "
European Directives 2006/42/EC (17/05/2006)
European Sound standard ISO-15744
European Standards EN ISO 11148-6:2012
Free speed 280 rpm
Height 34 mm 1.3 "
Length 169 mm 6.6 "
Max torque 35 Nm 26 ft.lbs
Min. hose size 10 mm 3/8 "
Net weight 1/2 kg 1.1 lb
Over carton 280x230x400 mm 11x9.05x15.75 "
Side to center 19 mm 3/4 "
Sound Power 93 db(A)
Sound pressure 82 db(A)
Sound uncertainty 3 db(A)
Square drive 1/4 "
Vibration 4 m/s²
Vibration ISO ISO-28927-2
Vibration uncertainty (K) 1 1/2 m/s²
Width 38 mm 1 1/2 "
Working torque Range 5 - 25 Nm 4 - 18 ft.lbs



SKU CP825C
Barcode # 15451774752
Brand Chicago Pneumatic
Shipping Weight 0.7300kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.169m
Assembled Length 0.169m
Assembled Height 0.100m
Assembled Width 0.100m
Type Tools
