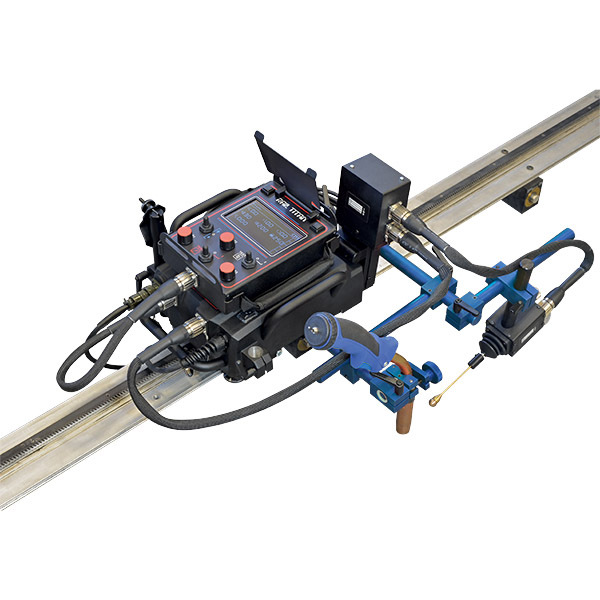

• Modular tig-mig-mag welding and cutting carriage
  • In-built oscillator
  • Rack and pinion drive track system
  • Suitable for TIG welding (HF resistant)
  • Robust design with die-cast aluminium housing
  • Ergonomic remote control pendant with simple and easy to find control knobs makes adjustments possible without lifting of the operators welding hood
  • Programmable path of stitch welds
  • Suitable for variety of circumferential and irregular surface applications down to min. radius of 100mm
    • Ring tracks on diameters from 200mm O.D. to 3m O.D.
    • Hi-Flex tracks on diameters from 1500mm O.D. upwards
    • Custom rolled tracks on diameters from 3m O.D. to 10m O.D.
    • Semi-Flexible tracks can be flexed to minimum radius of 5m without permanent deformation
  • Optional seam tracking enables active compensation of torch position vertically and horizontally with and without oscillation
  • Suitable for all welding positions on both ferromagnetic and non-ferromagnetic materials thanks to rack and pinion drive and various tracks equipped with magnetic or vacuum units
  • Rail Titan produces consistent high-quality welds and cuts in a fraction of the time required by manual operations
  • Wide input voltage range: 100-240V, 50-60Hz single phase
  • European made

* All tracks sold separately

Rail Titan Specifications:

  • Voltage: 1~100 - 240V, 50 - 60Hz
  • Power: 60W
  • Welding Position (According to EN ISO 6947 And AWS/ASME) Horizontal:
    • PA/1F/1G
    • PB/2F
    • PC/2G
    • PD/4F
    • PE/4G

    Welding Position (According to EN ISO 6947 And AWS/ASME) Vertical:

    • PF/3G
    • Pg./3F (Contact Your Dealer)
    • Pg./3G

    Fixing On Pipes And Round Workpieces:

    • Fixing On Pipes And Round Workpieces Ring Tracks (O.D.
    • ): 200mm - 3m
    • Hi-Flex Tracks (O.D.): Minimum 1.5m
    • Hi-Flex Tracks (I.D.): Minimum 3.4m
    • Custom Rolled Tracks (O.D.): 3-10m (Contact Your Dealer)
    • Semi-Flex Tracks (O.D.): Minimum 10m
  • Torch Type: MIG/MAG, TIG, Oxy-fuel, Plasma
  • Mig/Mag Torch Diameter: 16 - 22mm
  • Minimum Workpiece Thickness For Magnetic Clamping: 5mm
  • Horizontal Pulling Force: 400N
  • Vertical Pulling Force: 315N
  • Horizontal Speed: 0 - 250 cm/min
  • Vertical Speed: 0 - 250 cm/min
  • Oscillation Type: Linear
  • Weld Path: Straight, Triangle, Trapezoid, Square
  • Oscillation Width: 0.1 - 11.8cm
  • Oscillation Speed: 10 - 200 cm/min
  • Oscillation Dwell Time At Center And On Ends: 0 - 5s
  • Maximum Oscillator Pulling Force: 100N
  • Overall Dimensions: 350mm (L) x 510mm (W) x 400mm (H)
  • Weight (Incl.Standard Accessories): 13kg
  • R
    Rail Titan, Plastic box, Remote control pendant, 5m Remote control cable, 3m Remote control cable, 0.5m Remote control cable, Power cord, 6.5m Arc ignition cable, 300mm rod, 300mm rack with 180mm adjustment, Rack holder, Clamping block with levers, Short rod torch holder with fits-all clamp, Cable anchor, Contact block, 6mm Hex wrench, Operator’s manual
    Barcode # 9328042034656
    Brand ITM
    Shipping Weight 13.0000kg
