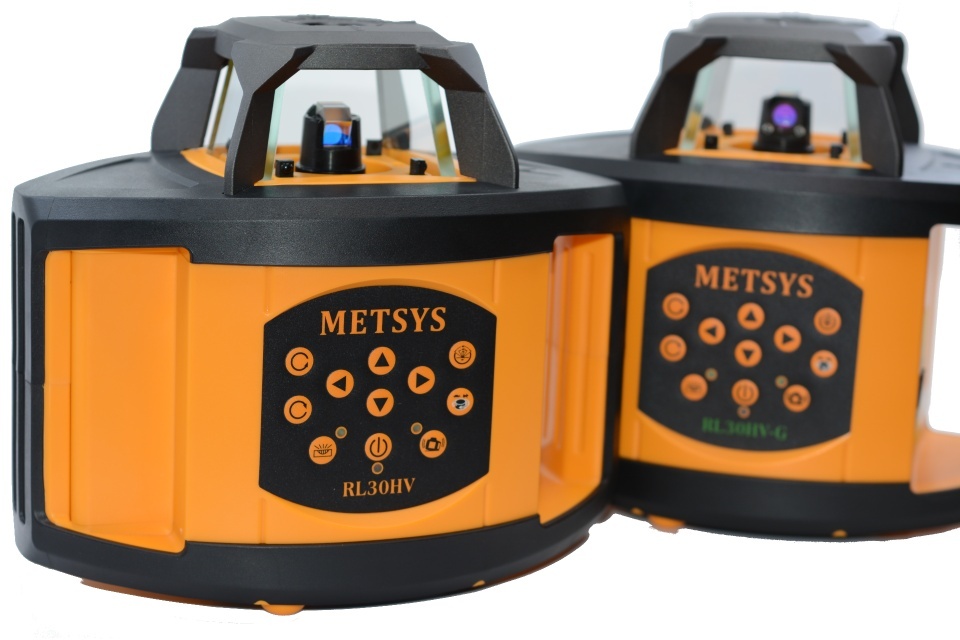

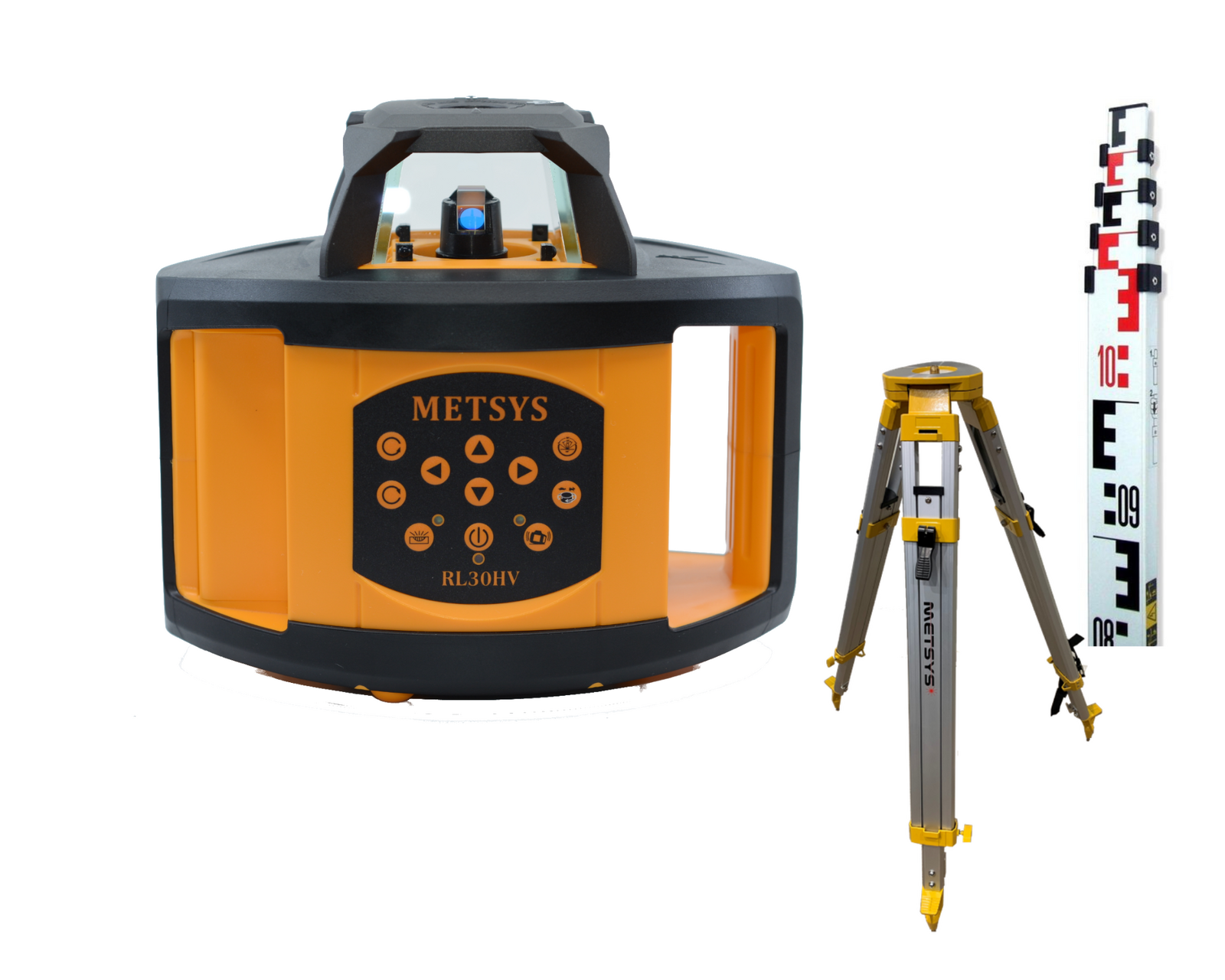

Metsys RL30series Automatic Electronic Self- Levelling Rotary Laser Level.

Use your RL30 Series Self-Levelling Laser for these and many other projects: Outdoor General Construction Applications & Site Preparation, Grading & Excavating, Batter boards and Foundations, Masonry Work, Setting Concrete Forms, Machinery Installation, Marking Elevation, Septic Work, Paving Roads, Driveways, Checking Depth of Trenches.

Applications include Drop Ceiling Installation, Floors, Cabinets & Shelves, Carpentry, Pools, Decks & Patios, Flagpoles, Aligning 90° Joints &Edges, Landscaping, Tile Work, Septic Work, Plumbing, Batter boards, Fencing, Walls & Partitions, Remodeling, Siding Installation, Doors & Windows.



Specification for RL series RL30HV
Beam Type 635 NM
Operating Range 600m ( With Rs1 )
Levelling Accuracy ± 1.5mm @ 30m
Levelling Type Electronic Self level
- Horizontal YES
- Vertical YES
Vertical Accuracy ±3mm at 30m
Self Levelling range ± 5º
Grade Capability Dual up to ± 10%
Grade Accuracy -

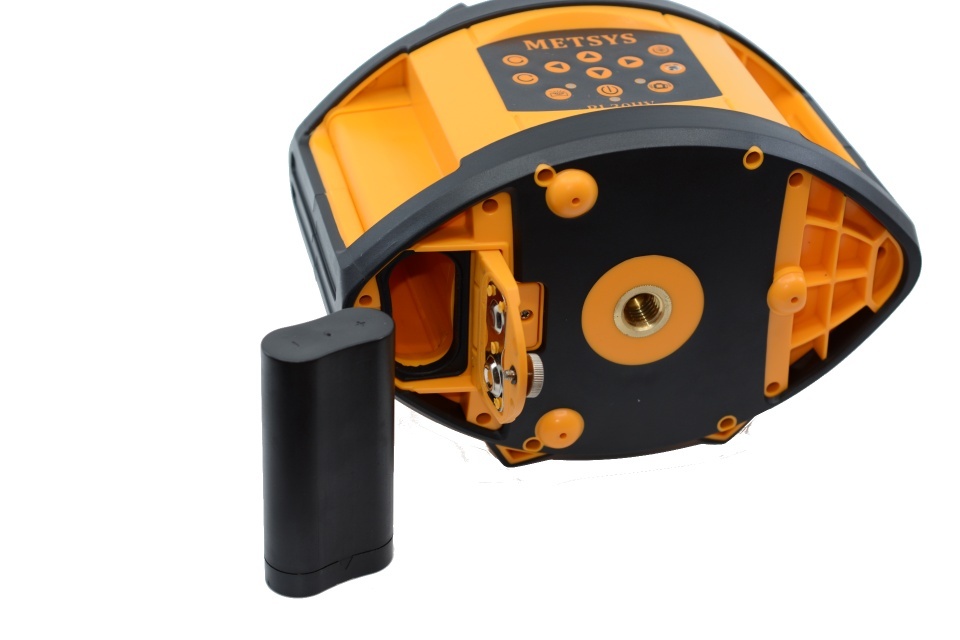

Battery Power
- Alkaline 80 ± Hrs.
- NI-MH 40 ± Hrs.
Rotation Speed Variable
- RPM 0,150,300,600 RPM
Weight 2.5 KG (with Battery)
Dimensions (mm) 203 x 159 x 162 mm
Visible split beam YES (Red)
Scanning Feature YES
Operating Temp -20ºC to 49ºC
Environment IP67

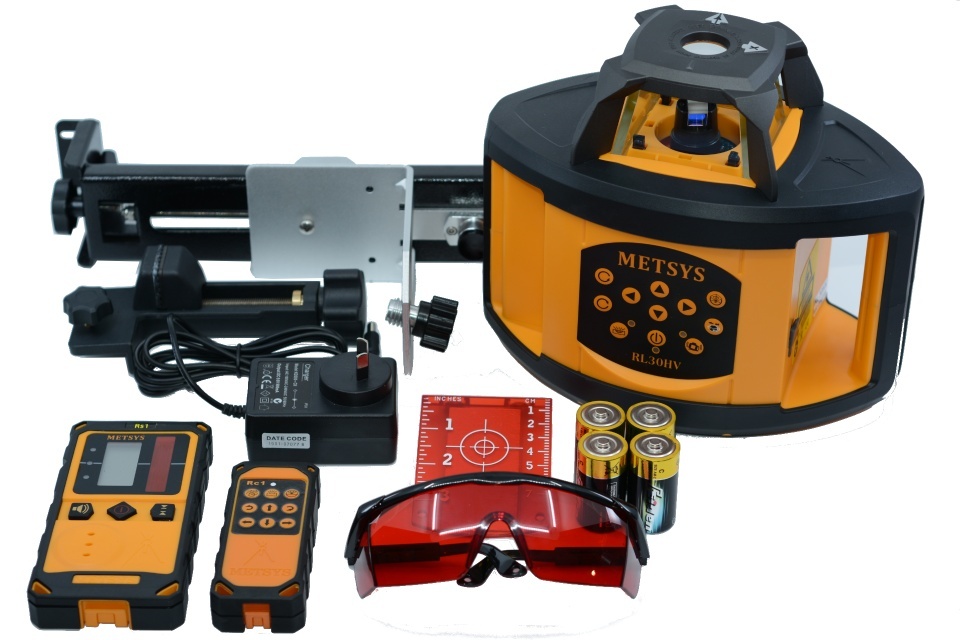

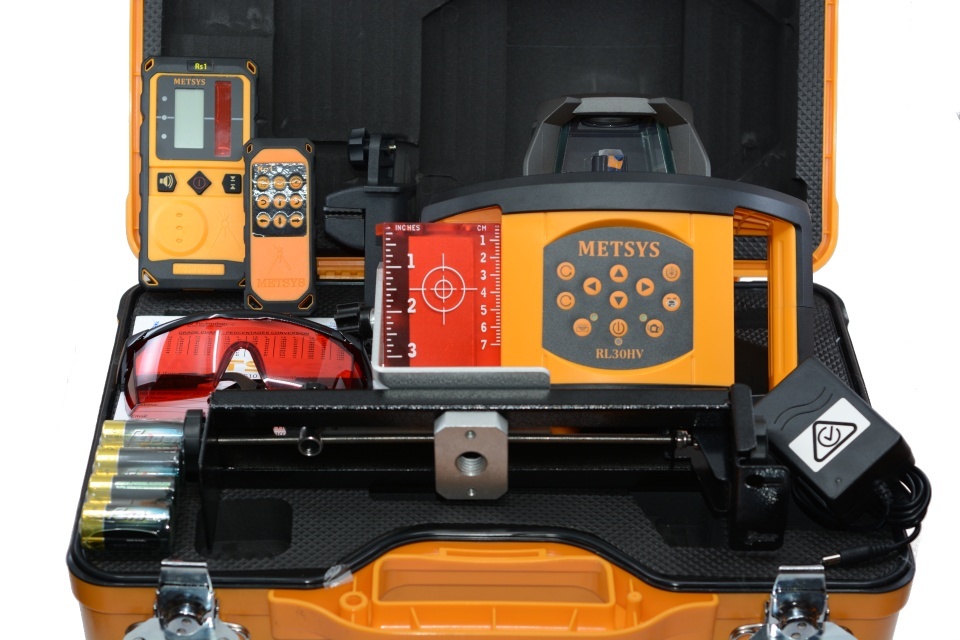

SKU RL30HV kit
Model # RL30HV kit
Brand Metsys
Shipping Weight 6.5000kg
Assembled Length 0.370m
Assembled Height 0.290m
Assembled Width 0.470m
Type Tools
