Unimig - Compact 250 MIG/MMA/TIG Inverter KUMJR250K-SG

Please note: this product does not include a wall plug.

Features:

  • Latest IGBT inverter technology
  • MIG/MAG with Gas and Gasless wire function
  • Spool Gun connection
  • MMA
  • DC TIG welding with Lift Arc start
  • VRD (Voltage Reduction Device)
  • Wire Inch & Burn Back control
  • Industrial application
  • Internal wire feeder, gear driven
  • 5 Kg to 15 Kg Spools
  • Euro style MIG torch connection
  • IP21S rating for environmental/safety protection
  • Stepless voltage and wire feed control
  • Excellent MIG welding with CO2 gas & mixed gas
  • Excellent arc stability for MIG / TIG / MMA welding
Specifications:
Power Supply / Phases (V-Ph) 240v - 1 +/- 15%
Duty Cycle @ 40°c as per AS/NZ60974-1 MIG - 35% @ 250 Amps
MMA - 35% @ 250 Amps
Output Current Range MIG - 30A/15.5V - 250A/26.5V
MMA - 10A/20.4V - 250A/30.0V
Rated Power MIG - 10.4 KVA
MMA - 11.8 KVA
I ieff MIG - 25.4 Amps
MMA 29.0 Amps
Power factor 0.75
Protection Class IP21S
Insulation Class F
Wire Feeder Gear Driven 4 Roll
Dimensions Power Source (LxWxH) 900 x 400 x 670 mm
Weight power Source 58 kg



Unimig RWX6000 Auto Darkening Welding Helmet Wide View UMRWXWH



Features:

  • 4 Arc Sensors - Maintain constant sensing and automatically switches the helmet from light to dark and back again.
  • Enhanced Viewing Area - Offers a larger viewing area for the operator. This larger viewing area enhances the operators view of the welding area
  • True Colour - High Definition Filter Technology is a feature that greatly improves the optics allowing the user to see a full spectrum of colours. It also helps to alleviate eye fatigue making it safer for extended periods of welding.
  • Operator Comfort - Lightweight Design makes wearing the welding helmet more comfortable for the operator.
  • Memory Function - Allows the operator to store different shade, sensitivity and delay options into three easily accessible pre-sets.
  • Grind Mode - Allows the operator to switch the helmet from the welding mode into a fixed shade for grinding. This function removes the need for the operator to change visors and to simply use the welding helmet for grinding when required.
  • Shade Control - Automatic Welding Lens allows the operator to switch between variable welding shades from 5-9 and 9-13. The switching speed of the lens is a very fast 0.04m/s from light to dark.
Specifications:
Filter dimension 133 x 114 x 10 mm
View size 100 x 83.4 mm
Classification 1/2/1/1
Sensors 4
Light state 4
Dark state Variable shade 5-9 / 9-13
Power control Fully automatic
Shade control Internal
Switching time at 23°C 0.08 ms
Sensitivity & Delay time control Adjustable (Internal)
Time from dark to light 0.1s - 0.9s adjustable (Internal)
Grinding function Yes
Grinding warning flash Yes
Low battery Warring indicator Yes
Operation temperature -10°C - 65°C
Storing temperature -20°C - 85°C
Power supply Solar cell, replaceable battery (CR2450 x 1PCS)
Certifications approved CE, ANSI , CSA, AS/NZS



Unimig 26V Ergo TIG Torch - 4m 35/50 Connector 26V-4MCP50



Suregrip 17V TIG torch is designed for operator comfort.

Specifications:
Cooling Method Air Cooled
Duty Cycle DC 35% @ 200 Amps
Dinse Style 35/50 type
Length 4 m



Unimig BZL 24 Style MIG Torch Consumable Starter Kit UMSK24



Features:

  • Packaged in a sturdy carry case, consumable starter kits are now available to from UNIMIG
  • This kit is the perfect companion to be bundled alongside machines, which the kit containing all the essential consumables for a BZL 24 Style MIG Torch.
  • Includes:
    • 1 x MIG Pliers (UMMP)
    • 2 x Conical Nozzles (PGN24CON)
    • 2 x Tip Holders (PCTH24)
    • 2 x Nozzle Springs (PCGD24)
    • 10 x 0.8mm Contact Tips (PCT0009-08)
    • 10 x 0.9 Contact Tips (PCT0009-09)

Includes:

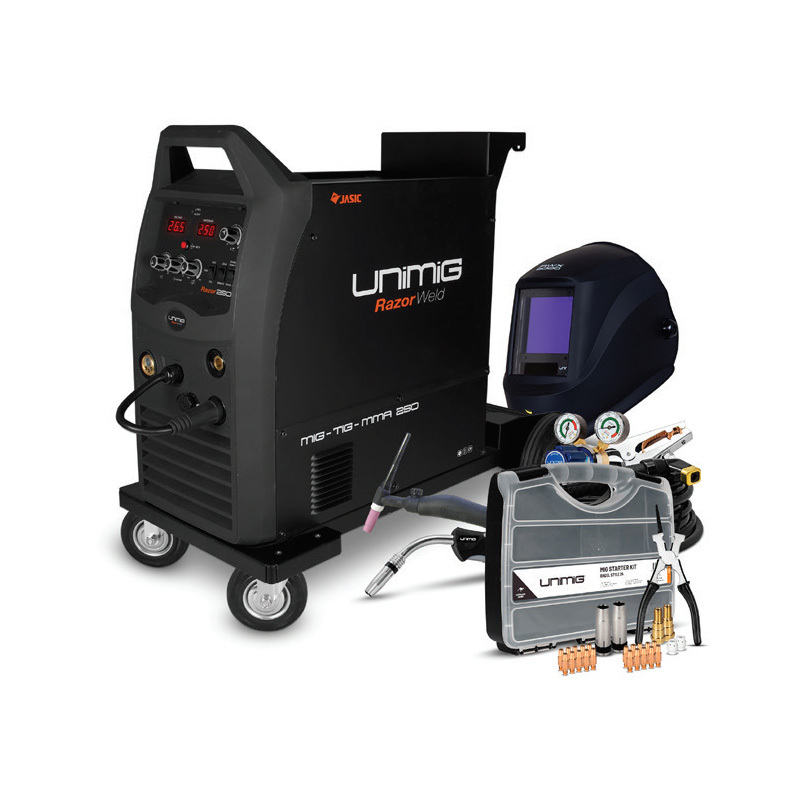

RAZOR 250 COMPACT MIG/TIG/STICK Welder, RWX6000 Welding Helmet, 26V TIG Torch, Binzel Style 24 Consumable Starter Kit
SKU PK11027
Barcode # 9333521008349
Brand Unimig
Shipping Weight 58.0000kg
Assembled Length 0.900m
Assembled Height 0.670m
Assembled Width 0.400m
Type tools
