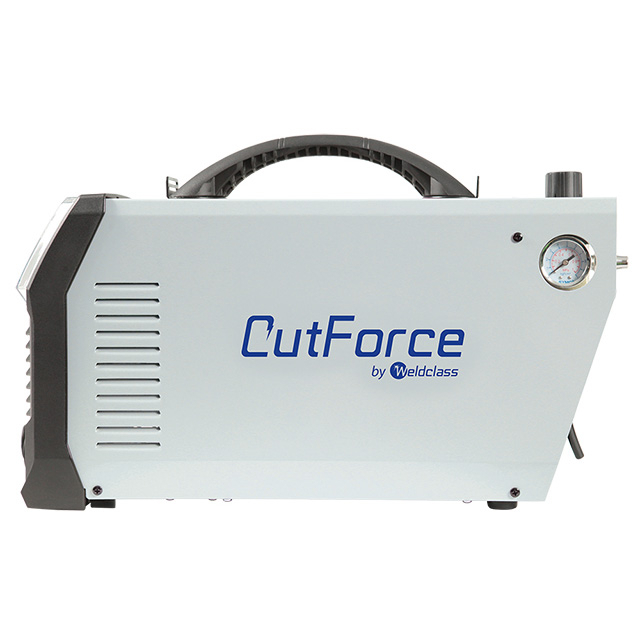

With a cut capacity of 20 mm (clean cutting of mild steel), severance capacity of 25 mm, and 45% duty cycle at maximum output, the Cutforce CF-45P is one of the highest performing single-phase plasma cutters on the market. Weighing only 8kg and fitted with a 15A 240V plug, it's also super portable and versatile.

PFC technology means the CF-45P is extremely power efficient, delivering higher duty cycle for longer cuts and higher productivity, even on heavier section material. With PFC, the CF-45P can be used on long extension leads (up to 100 m) and is a great choice for operation on generator power, where required.

Features a very high-quality 6m torch with 'Euro' style connection, Air regulator with nitto fitting, large carry case, shoulder strap & much more! For maximum parts life and cutting performance, we highly recommend the optional Platinum Z-20 Air Filter/Dryer

Features:
  • 40A @ 45% max output
  • Clean Cut up to 20 mm mild steel, 18 mm stainless-steel & 14 mm aluminium
  • Severance Cut up to 25 mm mild steel, 22 mm stainless-steel & 20 mm aluminium
  • Fitted with 15A 240V plug
  • Weighs only 8 kg - compact, robust & lightweight
  • Power Factor Correction (PFC) - reduced power draw, increased duty-cycle, ideal for long leads & generators
  • High Quality Plasma Torch with Euro Connection
  • Reliable Pilot Arc Ignition - non-HF avoids EMF interference
  • Generator Friendly - min 8 kva, ideal 10+ kva
  • Intelligent Protection & Warning System - prevents costly torch damage
  • Stressed-Tested - to 440 V & over-specified componentry for reliability
  • Perforated Plate / Expanded Mesh Cutting Mode
  • 3 year warranty* (if registered at Weldclass)
Specifications:
Output40A @ 45%
AirMin 120 lpm (4.5 cfm)
Clean Cutting Capacity - Mild Steel20 mm
Clean Cutting Capacity - Stainless Steel18 mm
Clean Cutting Capacity - Aluminium14 mm
Severance Cutting Capacity - Mild Steel25 mm
Severance Cutting Capacity - Stainless Steel22 mm
Severance Cutting Capacity - Aluminium20 mm
Earth Lead Length4 m
Input Lead Length3 m
Weight8 kg

Includes:
Plasma Torch 6m with Torch Parts Kit,Air Regulator with filter & Nitto style air fitting,Earth Lead 4m,Large Carry Case,Shoulder Strap,Cable Strap,Long Power Input Lead 3m
