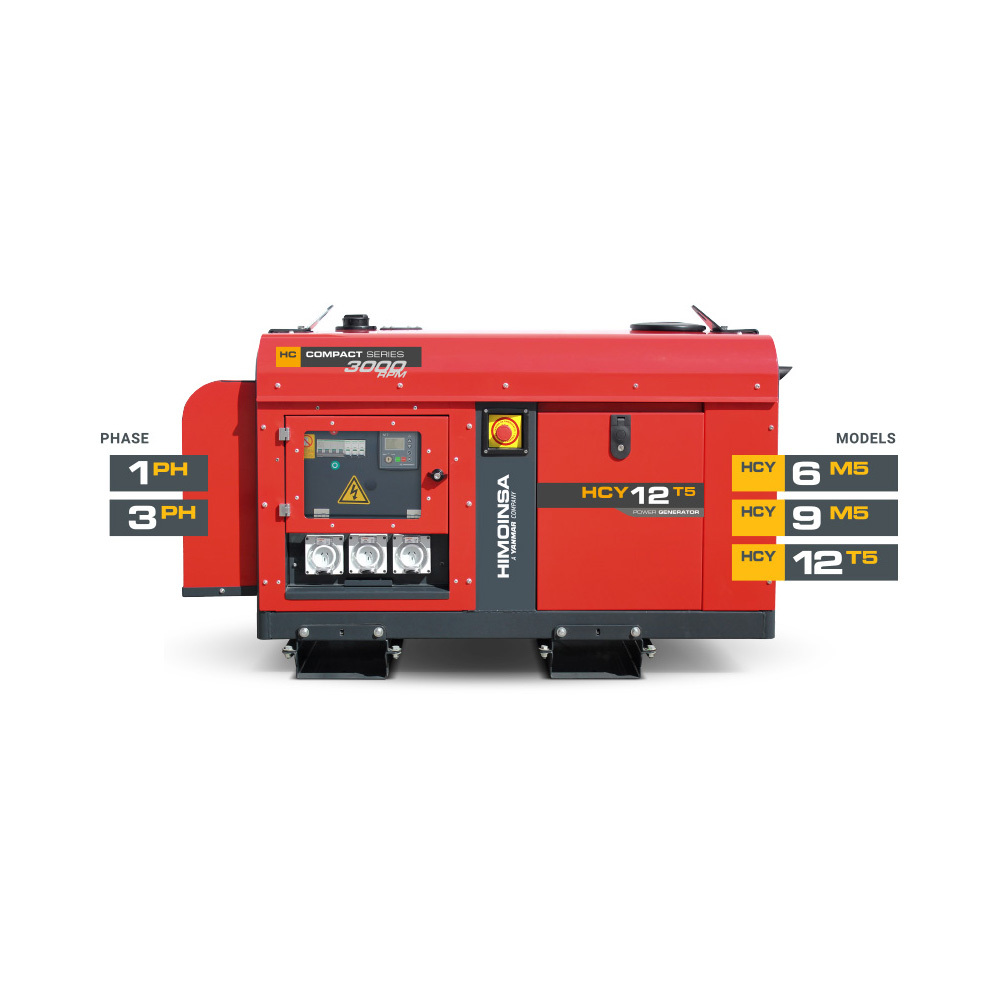

Features:
  • Rated 11.3kVA prime, 12.45kVA standby, 50Hz, Three Phase, 415V, 0.8PF
  • Yanmar diesel with superior durability & fuel economy, 2 pole 3,000RPM.
  • Quality 2 Pole AC alternator, single bearing closed coupled with voltage regulator with +/-1%
  • Enclosure Sound Level: 69dB(A) @ 7m
  • 2 point lifting frame – Fork lift pockets,
  • Control panel viewing window & vertical air discharge with integral exhaust.
  • 38.9 litre bunded fuel tank 10.3 hour run time (at 100% load).
  • Engine Alternator mounted to base frame via anti vibration mounts.
  • Set mounted control panel containing key start / remote start controller and circuit breaker.
  • The Himoinsa M5 generator controller provides a LCD display with comprehensive engine & alternator parameters display with shutdown protection.
  • Heavy duty battery, battery leads, isolator and hold down brackets.
  • Battery charger for standby operation, requires an external 240v power supply.
  • 1 x 3PH 32amp IP66 Rated outlet.
  • 2 x 1PH 15amp IP66 rated outlet.
  • RCD/MCBO protection.
Specifications:
Phase Type Three
KVA 12
Fuel Type Diesel
Dimensions 153 × 775 × 93 cm
Weight 403 kg
SKU HCY-12 T5
Model # HCY-12 T5
Brand Himoinsa
Shipping Weight 200.0000kg
